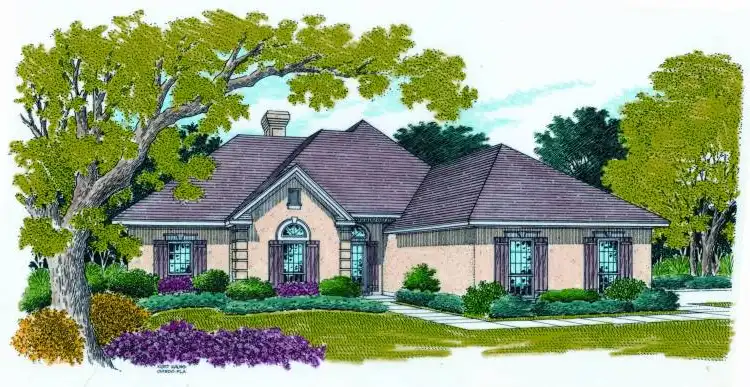

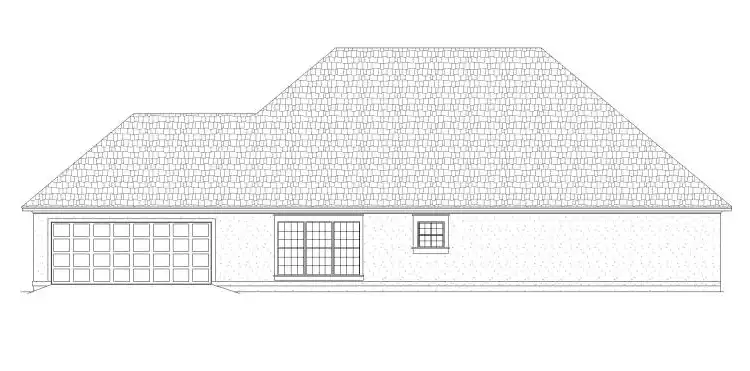

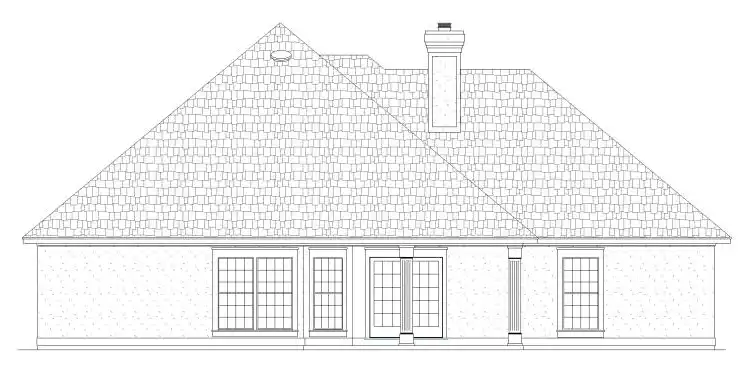

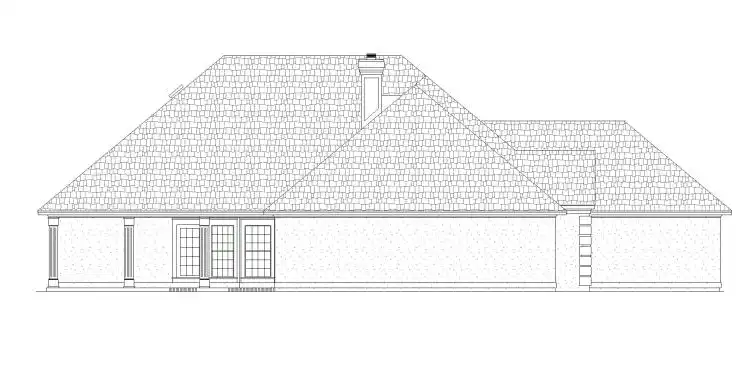

Front Elevation Left side elevation Right Side Elevation Rear Exterior Floor Plan
© copyright by designer

Plan: 5497

Plan Specification
Total Square Footage: 2,200
Bedrooms: 4
Baths: 3 Half: 0
Garages: 2
Width/Depth: 56 ft / 74 ft
Foundation: Concrete Slab Foundation, Optional Crawl Space Foundation
Pin It
© copyright by designer
Floor Plan:
Floor Plan



Similar plans: 3560, 5620, 7119, 4352
More plans by this designer/architect
ShareThis
Add to Favorites
Purchase Plans
PLAN DESCRIPTION The living room has 12 high ceilings, fireplace, built-ins and direct access to a relaxing porch via a pair of French doors. The master suite has access to the huge rear covered porch for an evening of relaxation. The master bath includes soaking tub, shower and twin vanities. The master bedroom walk-in closet has convenient access to the utility room.
Get Your House Plans In Minutes!
NEW PDFs Now!™ Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
10% Off All House Plans Through The End Of August !!! see details
House Plan Pricing
PDFs Now!™ $800.00
PDFs Now!™ $950.00
$960.00
$975.00
$1,020.00
$1,080.00
$1,738.00
More details about our plan packages
Foundation Options
PDFs Now!™ available $0.00
PDFs Now!™ available $100.00
Additional Plan Options
$2,225.00
$0.00
$15.00
PDFs Now!™ available $90.00
$15.00
$60.00
$125.00
Best Price Guarantee, learn more

Live Chat  |  Email
Key Features
• Attached
• Dining Room
• Foyer
• Laundry 1st Fl
• Open Floor Plan
• Rear Porch
• Slab
• Split Bedrooms
• Suited for corner lot
• Suited for view lot
• Walk-in Closet
Plan Details
General House Information
1
Number of Stories:
56' 0"
Width:
74' 0"
Depth:
Single
Dwelling Number:
Exterior Style
Traditional
Facade
Stucco
Number of Rooms
4
Bedrooms:
3
Full Baths:
Finished Square Footage
2,200 Sq. Ft.
Total:
Unfinished Square Footage
502 Sq. Ft.
Garage:
70 Sq. Ft.
Storage:
476 Sq. Ft.
Porch:
GARAGE
Side
Garage Location:
2
Garage Size:
Foundation
Concrete Slab Foundation
Optional Crawl Space Foundation
House And Ceiling Heights
8 & 12
First Floor Ceiling:
27' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
10:12
Primary:
Insulation (R)
11
Exterior Wall:
0
Interior Wall:
38
Ceiling:
19
Floor:
Number of Rooms
4
Bedrooms:
3
Full Baths:
