Plan Specification: HHF-5523

Total Square Footage: 2,387

Main Level: 1,123

Second Level: 1,264

Bedrooms: 2

Baths: 3        Half: 1

Garages: 2

Width: 40 ft Depth: 52 ft

Foundation: Crawl Space


Pricing Options Click here...

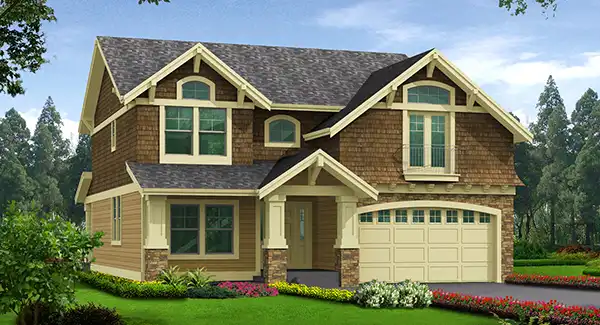

Main Plan Photo
© copyright by designer

Plan: HHF-5523

As you enter, there is a Parlor and dining room to the right, it provides a private social setting. There is a hallway leading into the Great room and Kitchen and immediately have a open space to entertain your guests and family. The Covered back porch is a wonderful way to entertain with access from the great room and nook. Upstairs leads to the Master Bedrooms that has a covered porch and a single WIC closet and vaulted ceiling. The other bedrooms are connected by a jack and jill bathroom. This layout is perfect for your family !
This house plan is suitable for a narrow lot has a 2 car front entry garage and numerous amenities.

ShareThis

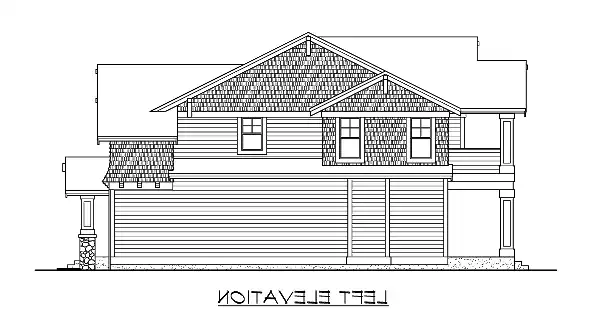

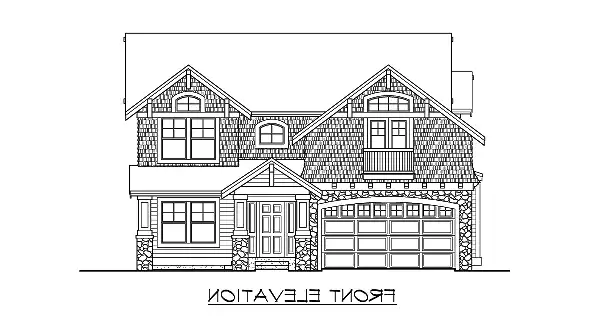

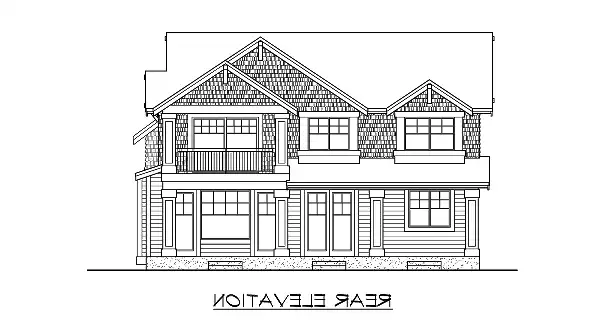

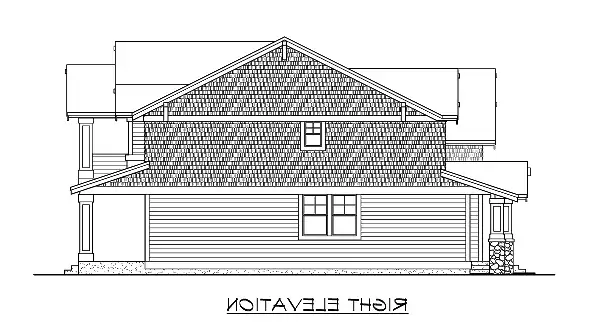

Additional Images

Plan Pricing Packages
HOUSE PLAN SETS

 Five Set Package    $800.00
 Eight Set Package    $900.00
 PDF Files - Single Use License    $1,250.00
 Vellums - Single Use License    $1,250.00
 CAD Files - Single Use License    $1,950.00
FOUNDATION OPTIONS

 Crawl Space  $0.00
ADDITIONAL PLAN OPTIONS

 Full Reading Reverse  $150.00
PLAN PRODUCTS

 Additional Sets  $50.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:

Note: This plan cannot be purchased for construction in Washington State.

Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Arches
  • Bonus Room
  • Covered Front Porch

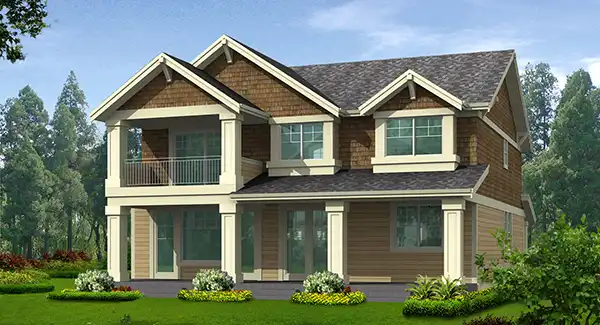

  • Covered Rear Porch
  • Crawlspace
  • Dining Room
  • Double Vanity Sink
  • Fireplace
  • Foyer
  • Great Room
  • Kitchen Island
  • Laundry 2nd Fl
  • Master Bdrm Upstairs
  • Nook / Breakfast Area
  • Open Floor Plan
  • Separate Tub and Shower
  • Vaulted Ceilings
  • Walk-in Closet
  • Walk-in Pantry
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
Main Floor:





© copyright by designer
Upper Floor:

Top

Plan Details

General House Information
Number of Stories:2
Width:40' 0"
Depth:52' 0"
Dwelling Number:Single
Bonus Access:1st Floor, 2nd Floor

Exterior Style
  • Cape Cod
  • Craftsman
  • Traditional

Number of Rooms
Bedrooms:2
Full Baths:3
Half Baths:1

Finished Square Footage
Main Level:1123 Sq. Ft.
Upper Level: 1264 Sq. Ft.
Total: 2387 Sq. Ft.

Unfinished Square Footage
Garage:423 Sq. Ft.

Garage
  • Garage Type:
Garage Size:2


Foundation
  • Crawl Space

House And Ceiling Heights
First Floor Ceiling:9
Second Floor Ceiling:8
Maximum House Height:27' 0"

Framing Information
Roof Framing:Truss
Exterior Wall Framing:2x6

Roof Pitch
Primary:6

Roof Load
Live:25
Dead:15
Wind:85

INSULATION
Exterior Wall:21
Interior Wall:13
Ceiling:38
Floor:30

Number of Rooms
Bedrooms:2
Full Baths:3
Half Baths:1
