Plan Specification: HHF-5569

Total Square Footage: 5,257

ENERGY STAR

Main Level: 3,490

Second Level: 1,767

Bedrooms: 5

Baths: 5        Half: 1

Garages: 3

Width: 88 ft Depth: 103 ft

Foundation: Crawl Space


Pricing Options Click here...

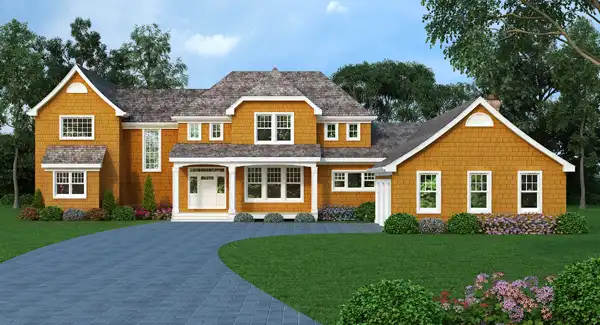

Main Plan Photo
© copyright by designer

Plan: HHF-5569

From it's appealing exterior to it's stunning interior,this two story craftsman inspired traditional home is luxuriant throughout. It features two master suites, one on each floor, the upper one with a deck to capture a view. Both feature spacious, compartmented baths and dual walk-in closets. The central feature is a two story high living room, which opens wide to a large screened porch. The kitchen/family room complex also opens to the screened porch. The kitchen features an island and large snack/serving counter. The house includes 5 suite bedrooms with their own bath and walk-in closet. There are 2 fireplaces, a large laundry room and a 3 car garage.

ShareThis
Treat yourself to 10% off all house plan packages, over $500 see details

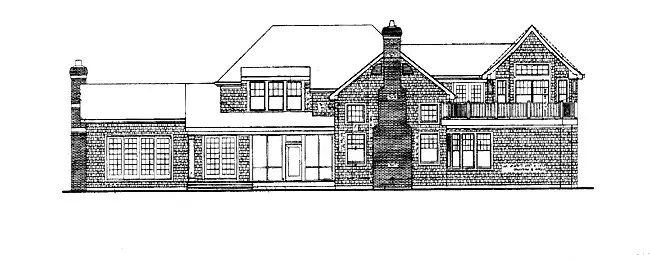

Additional Images

Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Plan Pricing Packages
HOUSE PLAN SETS

 PDF BID SET   PDFs Now!   $1,525.00
 Four Set Package    $1,650.00
 Eight Set Package    $1,775.00
 PDF Construction Set - Single Use   PDFs Now!   $1,975.00
 Reproducible Vellum Set    $2,100.00
 CAD FILE - single use    $2,850.00
FOUNDATION OPTIONS

 Crawl Space  $0.00
ADDITIONAL PLAN OPTIONS

 ENERGY STAR® Plan Package  $375.00
 Additional Set  $75.00
 Mirror Reverse  $85.00
 Full Reverse Plans (If available)  $350.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • 2 Master Suites
  • Country Kitchen
  • Covered Front Porch
  • Covered Rear Porch
  • Crawlspace
  • Dining Room
  • Double Vanity Sink
  • Family Room
  • Fireplace
  • Formal LR
  • Foyer
  • Front Porch
  • Great Room
  • Guest Suite
  • His and Hers Master Closets
  • Kitchen Island
  • Laundry 1st Fl
  • Loft / Balcony
  • Master Bdrm Main Floor
  • Master Bdrm Upstairs
  • Nook / Breakfast Area
  • Open Floor Plan
  • Peninsula / Eating Bar
  • Rear Porch
  • Screened Porch/Sunroom
  • Separate Tub and Shower
  • Sitting Area
  • Split Bedrooms
  • Vaulted Ceilings
  • Walk-in Pantry
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
First Floor Plan:





© copyright by designer
Second Floor Plan:

Top

Plan Details

General House Information
Number of Stories:2
Width:88' 2"
Depth:103' 6"
Dwelling Number:Single

Exterior Style
  • Beach
  • Craftsman
  • Traditional

Facade
  • OwnersChoice

Number of Rooms
Bedrooms:5
Full Baths:5
Half Baths:1

Finished Square Footage
Main Level:3490 Sq. Ft.
Upper Level: 1767 Sq. Ft.
Total: 5257 Sq. Ft.

Unfinished Square Footage
Garage:800 Sq. Ft.
Porch:251 Sq. Ft.
Deck:410 Sq. Ft.

Garage
  • Garage Type:
Garage Size:3


Foundation
  • Crawl Space

House And Ceiling Heights
First Floor Ceiling:9.5
Second Floor Ceiling:8.1
Maximum House Height:29' 4"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x6

Roof Pitch
Primary:12
Secondary:9
Teritary:5.5

Roof Load
Live:30
Dead:10
Wind:120

INSULATION
Exterior Wall:19
Interior Wall:0
Ceiling:30
Floor:0

Number of Rooms
Bedrooms:5
Full Baths:5
Half Baths:1
