Plan Specification: HHF-5709

Total Square Footage: 2,293

Main Level: 2,293

Bedrooms: 4

Baths: 3

Garages: 2

Width: 74 ft Depth: 69 ft

Foundation: Crawl Space, Slab


Pricing Options Click here...

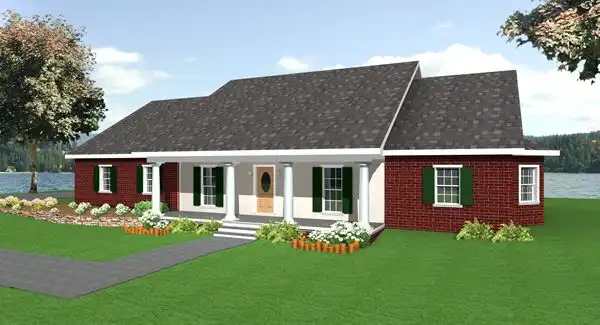

Main Plan Photo
© copyright by designer

Plan: HHF-5709

This home offers an angled snack bar in the kitchen with a large walk-in pantry. Arched openings accent the Dining Room from the Kitchen and Foyer.Off the Foyer is located Bedroom 2 or a study/office. This room has a full bath, so you have options galore.The Master Bedroom wing has a large walk-in closet and spa style bath. This bath has a whirlpool tucked into an angled bay, dual sinks, a corner shower and a separate toilet compartment.

ShareThis

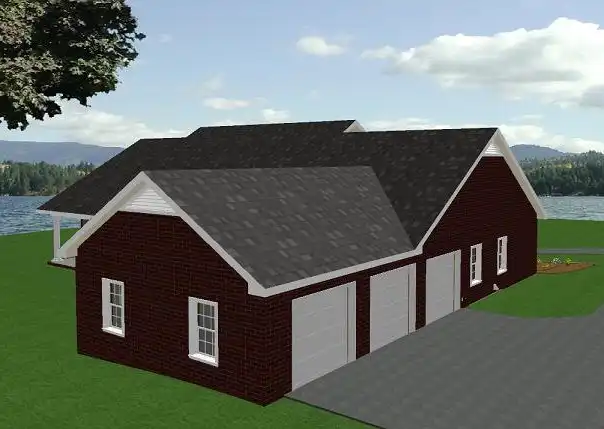

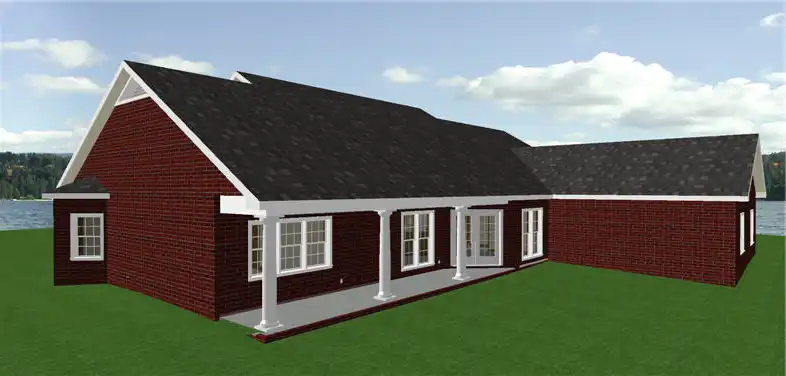

Additional Images

Plan Pricing Packages
HOUSE PLAN SETS

 PDF Bid Set - NOT for Construction    $740.00
 Five Sets    $740.00
 PDF - File Package - One build only    $975.00
 Vellums    $975.00
FOUNDATION OPTIONS

 Crawl Space  $0.00
 Slab  $0.00
ADDITIONAL PLAN OPTIONS

 Additional Sets  $50.00
 Mirror Reverse  $50.00
 RRR - Right Reading Reverse  $150.00
PLAN PRODUCTS

 2x6 Exterior Walls  $225.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Covered Front Porch
  • Covered Porch
  • Covered Rear Porch
  • Crawlspace
  • Fireplace
  • Front Porch
  • Great Room
  • Home Office
  • Jack and Jill Bath
  • Laundry 1st Fl
  • Master Bdrm Main Floor
  • Master Suite
  • Nook / Breakfast Area
  • Office or extra bedroom
  • Open Floor Plan
  • Peninsula / Eating Bar
  • Raised Snack Bar
  • Rear Porch
  • Separate Tub and Shower
  • Slab
  • Split Bedrooms
  • Split Floor plan layout
  • Walk-in Closet
  • Walk-in Pantry
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
Floor Plan:




Top

Plan Details

General House Information
Number of Stories:1
Width:74' 0"
Depth:69' 0"
Dwelling Number:Single
Bonus Access:None

Exterior Style
  • Traditional
  • Country
  • Southern
  • Florida

Number of Rooms
Bedrooms:4
Full Baths:3

Finished Square Footage
Main Level:2293 Sq. Ft.
Total: 2293 Sq. Ft.

Unfinished Square Footage
Garage:833 Sq. Ft.
Porch:434 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:2


Foundation
  • Crawl Space
  • Slab

House And Ceiling Heights
First Floor Ceiling:9
Maximum House Height:24' 0"

Framing Information
Roof Framing:Truss
Exterior Wall Framing:2x4

Roof Pitch
Primary:7

Roof Load
Live:30
Dead:10

INSULATION
Exterior Wall:13
Interior Wall:0
Ceiling:30
Floor:0

Number of Rooms
Bedrooms:4
Full Baths:3
