Plan Specification: HHF-5730

Total Square Footage: 1,668

ENERGY STAR

Main Level: 1,057

Second Level: 611

Lower Level: 440

Bedrooms: 3

Baths: 2        Half: 1

Garages: 2

Width: 40 ft Depth: 38 ft

Foundation: WALK OUT BASEMENT


Pricing Options Click here...

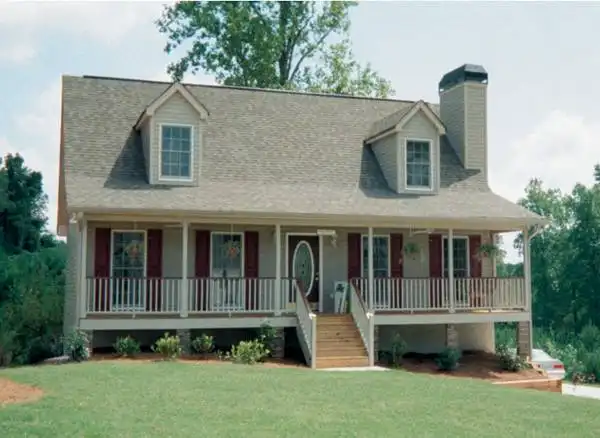

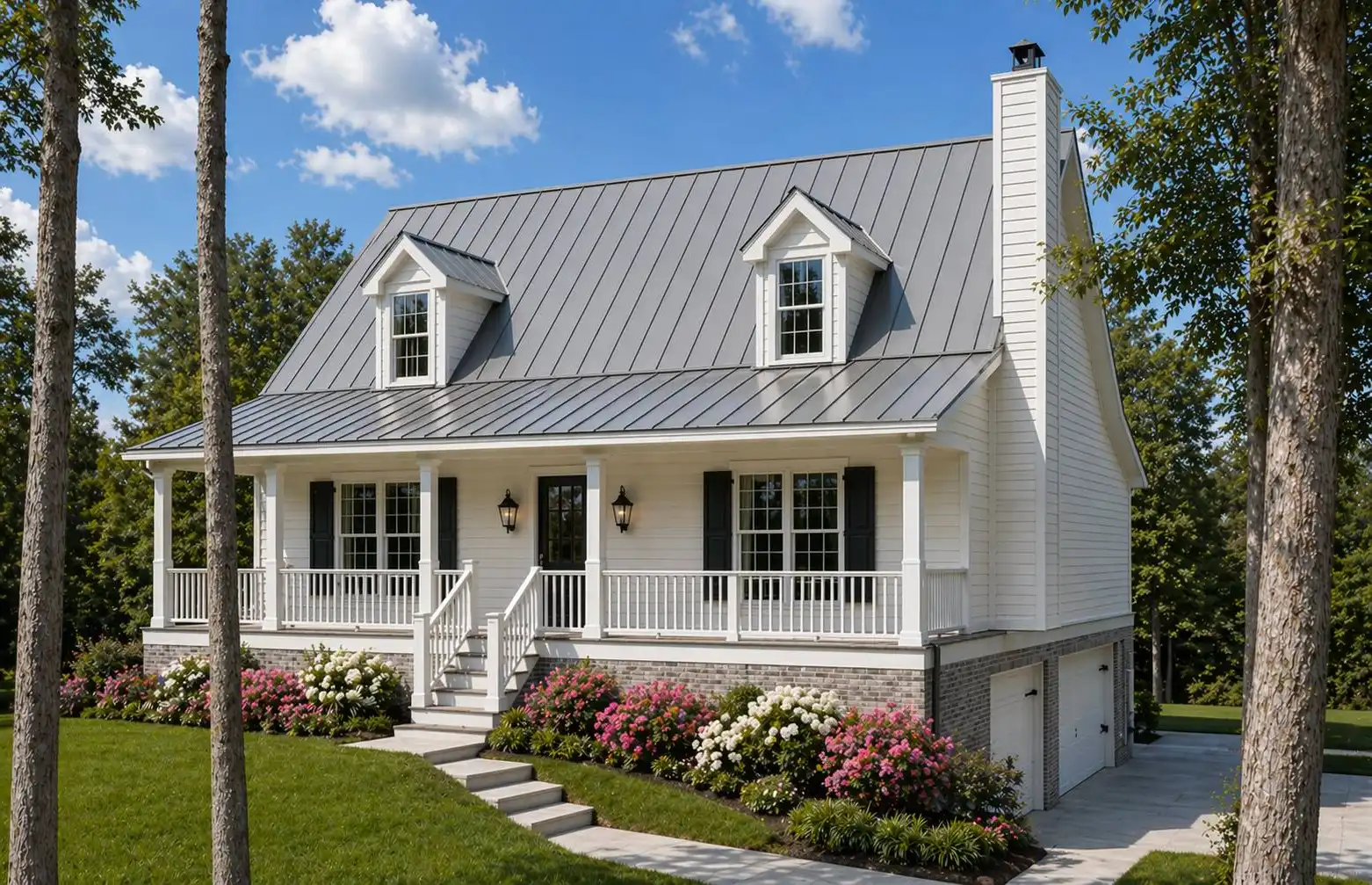

Main Plan Photo
© copyright by designer

Plan: HHF-5730

Classic country cape describes this compact drive-under design. It features an angled kitchen wall expanding the sense of space into the dining room, making the kitchen part of the living area without sacrificing formality. The cathedraled breakfast nook is a nice surprise in this one-and-a-half story.

ShareThis
Additional Images

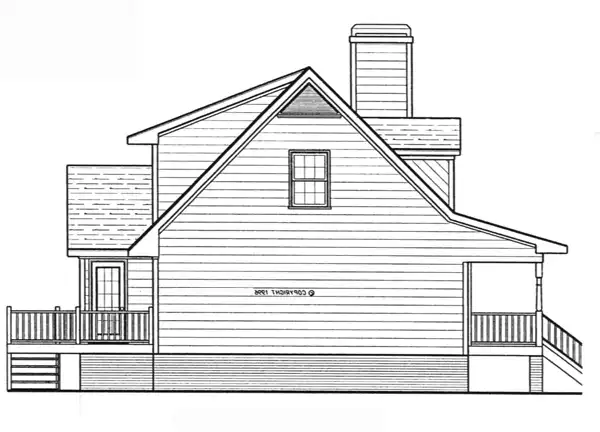

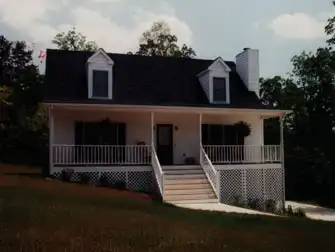

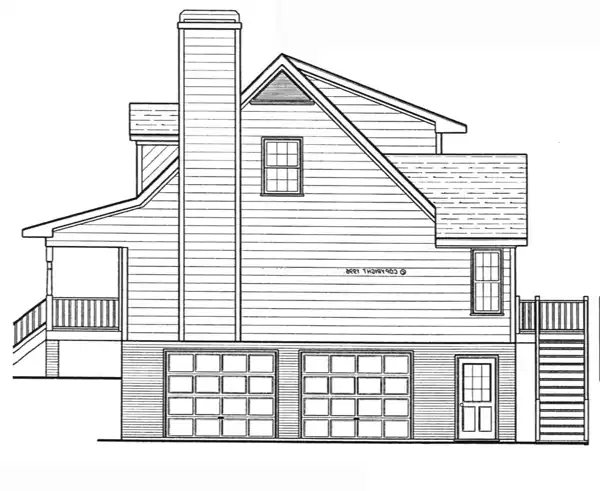

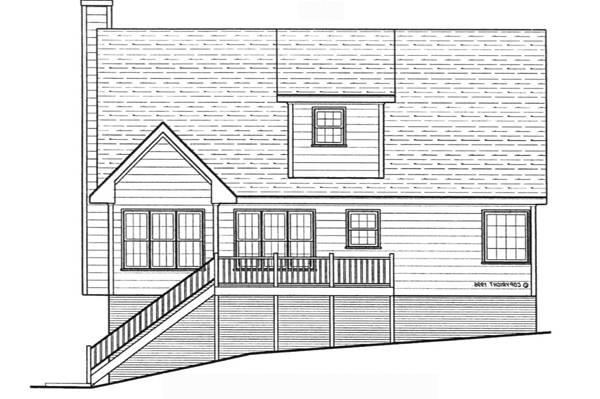

See all 6 photos and rear view
Plan Pricing Packages
HOUSE PLAN SETS
 PDF BID SET  $625.00
 Five Sets of Plans  $700.00
 PDF File  $975.00
 Vellums  $975.00
 CAD File  $1,350.00
FOUNDATION OPTIONS
 WALK OUT BASEMENT  $0.00
ADDITIONAL PLAN OPTIONS
 ENERGY STAR Plan Package  $275.00
 Additional Sets  $50.00
 Mirror Reverse  $50.00
 Materials List  $60.00
 Right Read Reverse  $150.00
 New Foundation Type  $200.00
 Conversion to 2 x 6 Walls  $200.00
PROMOTIONAL ITEMS
 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Covered Front Porch
  • Deck
  • Dining Room
  • Double Vanity Sink
  • Drive-under
  • Fireplace
  • Front Porch
  • Great Room
  • Laundry 1st Fl
  • Master Bdrm Main Floor
  • Open Floor Plan
  • Separate Tub and Shower
  • Side-entry
  • Storage Space
  • Unfinished Space
  • Walk-in Closet
  • Walkout Basement
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form

© copyright by designer
First Floor:





© copyright by designer
Second Floor:

Top

Plan Details

General House Information
Number of Stories:1.5
Width:40' 4"
Depth:38' 0"
Dwelling Number:Single

Exterior Style
  • Traditional
  • Cape Cod
  • Mountain
  • Vacation
  • Country

Number of Rooms
Bedrooms:3
Full Baths:2
Half Baths:1

Finished Square Footage
Main Level:1057 Sq. Ft.
Upper Level: 611 Sq. Ft.
Lower Level:440 Sq. Ft.
Total: 1668 Sq. Ft.

Unfinished Square Footage
Garage:526 Sq. Ft.
Storage:48 Sq. Ft.
Porch:226 Sq. Ft.
Deck:192 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:2


Foundation
  • WALK OUT BASEMENT

House And Ceiling Heights
First Floor Ceiling:8
Second Floor Ceiling:8
Maximum House Height:22' 6"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4

Roof Pitch
Primary:12/12

Roof Load
Live:20
Dead:10

INSULATION
  • Per IRC Climate Zones

Number of Rooms
Bedrooms:3
Full Baths:2
Half Baths:1
