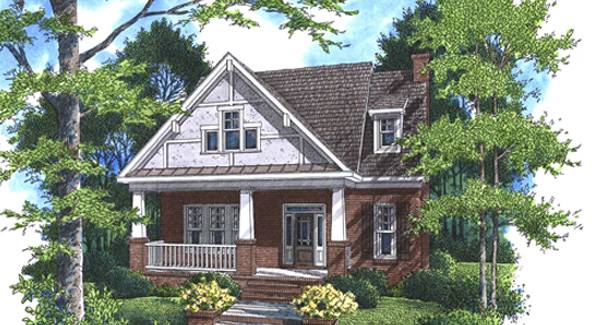

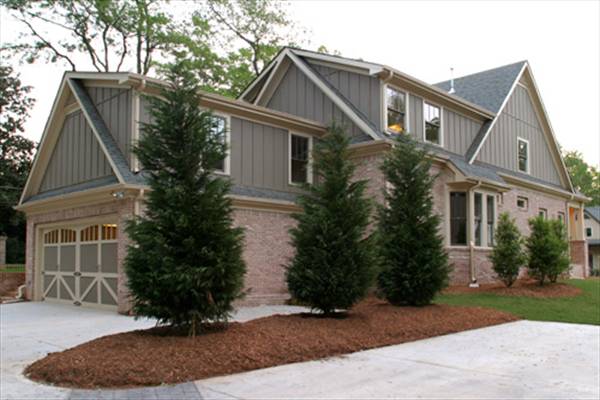

Front Left Side Left Rear Front Photo Rear-Side Kitchen Living 1 Kitchen Staircase Master Bathroom Rendering First Floor Second Floor
© copyright by designer

Plan: 5824

Plan Specification
Total Square Footage: 3,223
Main Level: 1,388
Second Level: 1,835
Bedrooms: 4
Baths: 3 Half: 1
Garages: 2
Width/Depth: 37 ft / 78 ft
Foundation: Crawl Space, if shown as standard
ENERGY STAR APPROVED
Pin It
© copyright by designer
First Floor:
First Floor
Need to make changes?
Call for a free modification quote
877-895-5299 or LIVE CHAT NOW
or use this quote form
© copyright by designer
Second Floor:
Second Floor
Similar plans: 5829, 6353, 5830, 5826
More plans by this designer/architect
ShareThis
Add to Favorites
Purchase Plans
PLAN DESCRIPTION Most often, narrow lot designs only work on flat lots. This house allows for a sloping lot. The rear staircase entry can float allowing for the garage to drop accommodating the lot's fall.

Get Your House Plans In Minutes!
NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
House Plan Pricing
$875.00
$950.00
PDFs Now! $1,150.00
$1,150.00
More details about our plan packages
Foundation Options
$0.00
Additional Plan Options
$0.00
$60.00
$50.00
$300.00
$400.00
$250.00
$500.00
Best Price Guarantee, learn more
Live Chat  |  Email
Key Features
• Attached
• Bonus Room
• Covered Front Porch
• Crawlspace
• Dining Room
• Double Vanity Sink
• Exercise Room
• Family Room
• Fireplace
• Formal LR
• Front Porch
• Great Room
• Guest Suite
• Home Office
• In-law Suite
• Kitchen Island
• Laundry 1st Fl
• Master Bdrm Upstairs
• Nook / Breakfast Area
• Open Floor Plan
• Peninsula / Eating Bar
• Rear Porch
• Rear-entry
• Screened Porch/Sunroom
• Separate Tub and Shower
• Sitting Area
• Split Bedrooms
• Vaulted Ceilings
• Walk-in Closet
• Walk-in Pantry
Plan Details
General House Information
2
Number of Stories:
37' 6"
Width:
78' 5"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Exterior Style
Craftsman
Bungalow
Number of Rooms
4
Bedrooms:
3
Full Baths:
1
Half Baths:
Finished Square Footage
1,388 Sq. Ft.
Main Level:
1,835 Sq. Ft.
Upper Level:
3,223 Sq. Ft.
Total:
Unfinished Square Footage
484 Sq. Ft.
Garage:
208 Sq. Ft.
Porch:
144 Sq. Ft.
Patio:
GARAGE
Rear
Garage Location:
2
Garage Size:
Foundation
Crawl Space
if shown as standard
House And Ceiling Heights
9
First Floor Ceiling:
8
Second Floor Ceiling:
29' 6"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
12/12
Primary:
3/12
Secondary:
12/12
Gable:
3/12
Dormer:
12/12
Porch:
Roof Load
20
Live:
10
Dead:
Insulation (R)
13
Exterior Wall:
0
Interior Wall:
30
Ceiling:
19
Floor:
Number of Rooms
4
Bedrooms:
3
Full Baths:
1
Half Baths:
