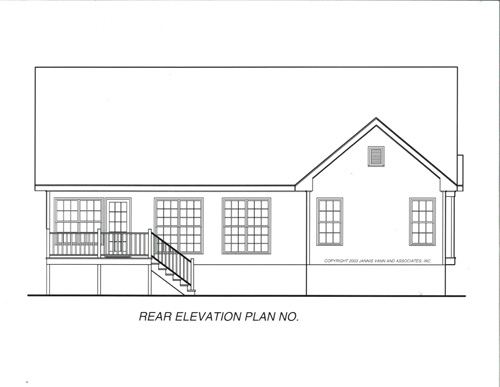

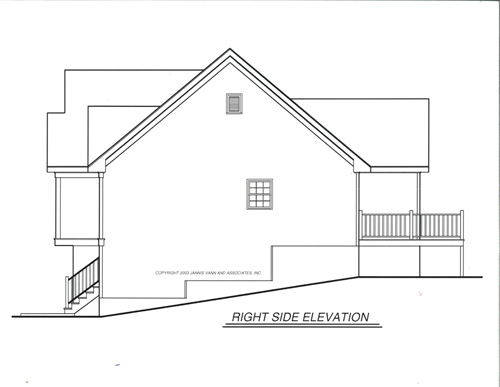

Rendering Right Elevation Rear Elevation Left Elevation Floor Plan Lower Level
© copyright by designer

Plan: 5844

Plan Specification
Total Square Footage: 1,650
Main Level: 1,557
Lower Level: 93
Bonus: 460
Bedrooms: 3
Baths: 2 Half: 0
Garages: 3
Width/Depth: 46 ft / 40 ft
ENERGY STAR APPROVED
Pin It
© copyright by designer
Floor Plan:
Floor Plan
Need to make changes?
Call for a free modification quote
877-895-5299 or LIVE CHAT NOW
or use this quote form
© copyright by designer
Lower Level:
Lower Level
Similar plans: 6355, 5846
More plans by this designer/architect
ShareThis
Add to Favorites
Purchase Plans
PLAN DESCRIPTION Vaulted ceilings help expand the sense of space in this compact split foyer. The entry stairs climb to a living room with windows all across the back wall helping your view to go well beyond the walls of the house. A side fireplace is framed by the modified cathedral ceiling making it a focal point. The cathedral ceiling of the dining room opens to the foyer as well creating a dramatic entrance.
Get Your House Plans In Minutes!
NEW PDFs Now!™ Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
10% Off All House Plans Through The End Of August !!! see details
House Plan Pricing
$540.00
$580.00
$635.00
More details about our plan packages
Additional Plan Options
$175.00
$50.00
$50.00
Best Price Guarantee, learn more
Live Chat  |  Email
Key Features
• Attached
• Daylight Basement
• Deck
• Dining Room
• Double Vanity Sink
• Drive-under
• Fireplace
• Great Room
• Laundry 1st Fl
• Master Bdrm Main Floor
• No Porch
• Nook / Breakfast Area
• Open Floor Plan
• Rear Porch
• Rec Room
• Separate Tub and Shower
• Side-entry
• Split Bedrooms
• Suited for corner lot
• Suited for narrow lot
• Suited for sloping lot
• Unfinished Space
• Vaulted Ceilings
• Walk-in Closet
• Walkout Basement
Plan Details
General House Information
1
Number of Stories:
46' 0"
Width:
40' 0"
Depth:
Single
Dwelling Number:
Exterior Style
Cottage
Craftsman
Traditional
Number of Rooms
3
Bedrooms:
2
Full Baths:
Finished Square Footage
1,557 Sq. Ft.
Main Level:
93 Sq. Ft.
Lower Level:
1,650 Sq. Ft.
Total:
Unfinished Square Footage
895 Sq. Ft.
Garage:
105 Sq. Ft.
Storage:
32 Sq. Ft.
Porch:
144 Sq. Ft.
Deck:
460 Sq. Ft.
Bonus Room:
GARAGE
Side
Garage Location:
3
Garage Size:
House And Ceiling Heights
8
First Floor Ceiling:
31' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
9/12
Primary:
Roof Load
20
Live:
10
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
3
Bedrooms:
2
Full Baths:
