Plan Specification: HHF-5846

Total Square Footage: 1,667

Main Level: 1,667

Lower Level: 800

Bedrooms: 3

Baths: 2

Garages: 2

Width: 54 ft Depth: 30 ft

Foundation: WALK OUT BASEMENT


Pricing Options Click here...

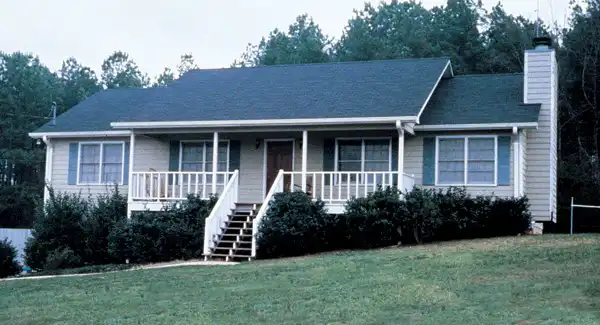

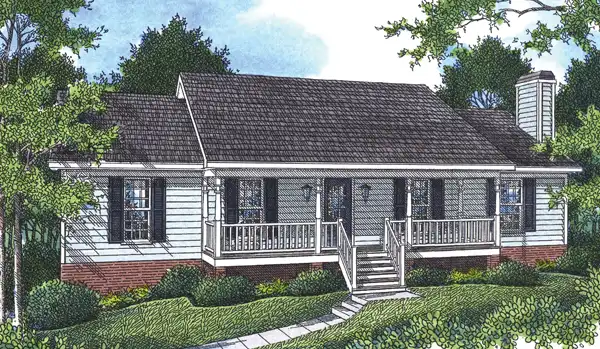

Main Plan Photo
© copyright by designer

Plan: HHF-5846

Bay windows add light to this small drive under garage ranch plan and help maximize space. Dining, breakfast and master all take advantage of that little bit of extra space making each space more comfortable to furnish. A washer/dryer closet in the hall keeps one from climbing stairs with loads of laundry.

ShareThis

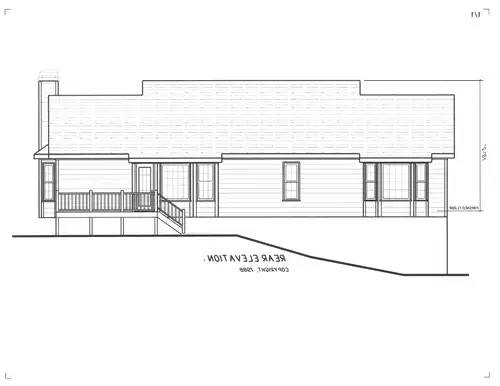

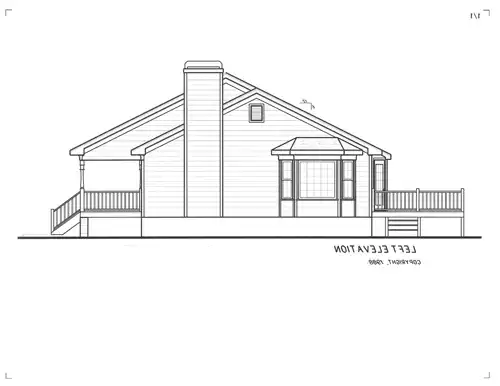

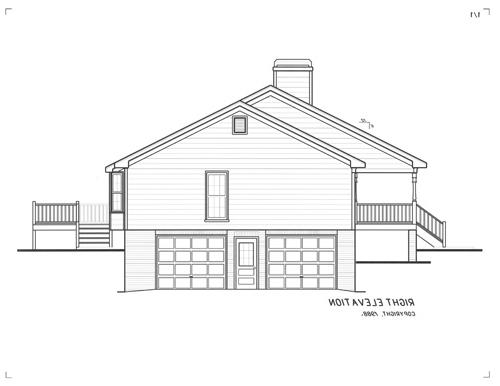

Additional Images


Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Plan Pricing Packages
HOUSE PLAN SETS

 PDF BID SET    $625.00
 Five Sets of Plans    $700.00
 PDF File   PDFs Now!   $975.00
 Vellums    $975.00
FOUNDATION OPTIONS

 WALK OUT BASEMENT  $0.00
ADDITIONAL PLAN OPTIONS

 Additional Sets  $50.00
 Mirror Reverse  $50.00
 Materials List  $60.00
 Right Read Reverse  $250.00
 New Foundation Type  $300.00
 Conversion to 2 x 6 Walls  $200.00
 Plan Modifications  $400.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Covered Front Porch
  • Deck
  • Dining Room
  • Double Vanity Sink
  • Drive-under
  • Fireplace
  • Foyer
  • Front Porch
  • His and Hers Master Closets
  • Laundry 1st Fl
  • Nook / Breakfast Area
  • Vaulted Ceilings
  • Walk-in Closet
  • Walk-in Pantry
  • Walkout Basement
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form

© copyright by designer
Lower Level:





© copyright by designer

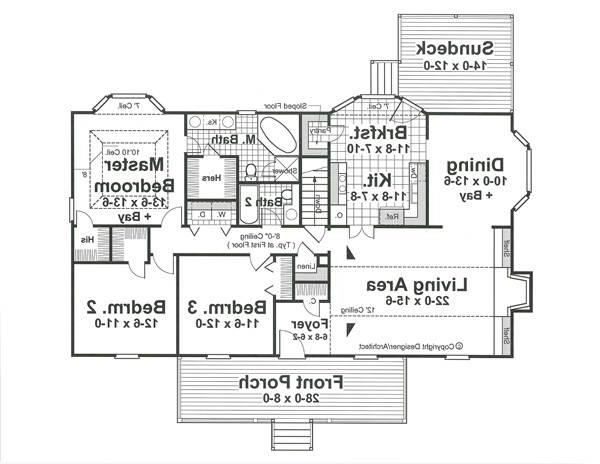

Floor Plan:

Top

Plan Details

General House Information
Number of Stories:1
Width:54' 0"
Depth:30' 0"
Dwelling Number:Single

Exterior Style
  • Farm House
  • Country
  • Ranch
  • PDFs Fast!

Number of Rooms
Bedrooms:3
Full Baths:2

Finished Square Footage
Main Level:1667 Sq. Ft.
Lower Level:800 Sq. Ft.
Total: 1667 Sq. Ft.

Unfinished Square Footage
Garage:835 Sq. Ft.
Porch:224 Sq. Ft.
Deck:168 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:2


Foundation
  • WALK OUT BASEMENT

House And Ceiling Heights
First Floor Ceiling:8
Maximum House Height:18' 0"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4

Roof Pitch
Primary:6/12

Roof Load
Live:20
Dead:10

INSULATION
  • Per IRC Climate Zones

Number of Rooms
Bedrooms:3
Full Baths:2
