House Plan: DFD-5859

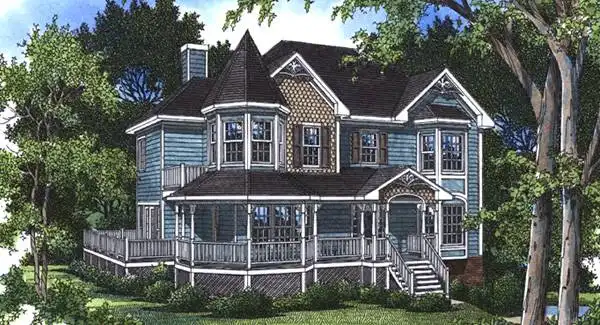

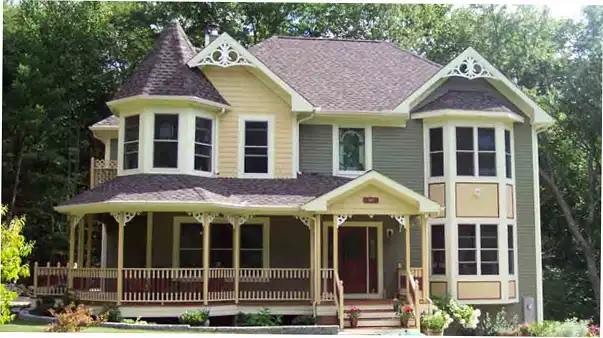

See All 5 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
2,364
BEDS
4
BATHS
2.5
STORIES
2
CARS
2
HOUSE PLANS SALE
START AT  $1,020.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

House Plan 5859
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $750
Immediate Delivery!
Digital set of plans for bidding purposes only

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,200
Immediate Delivery!
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,300
Five printed sets of house plans
STEP 2 CHOOSE YOUR FOUNDATION
STEP 3 OPTIONAL ADD-ONS
Subtotal
$1200
FREE SHIPPING

Note: This is a hand drawn plan and can only be modified if redrawn in CAD. Additional fees would be required.

Plan Details
See All Details
Finished Square Footage
1,155 Sq. Ft.
Main Level:
1,209 Sq. Ft.
Upper Level:
529 Sq. Ft.
Lower Level:
2,364 Sq. Ft.
Total:
Room Details
4
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
2
Number of Stories:
46' 0"
Width:
36' 8"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Unfinished Square Footage
612 Sq. Ft.
Garage:
271 Sq. Ft.
Porch:
318 Sq. Ft.
Deck:
GARAGE
Under
Garage Location:
2
Garage Size:
Exterior Style
Cottage
Farmhouse
Traditional
Victorian
Collections
Old House Classics
PDFs Fast!
Foundation
WALK OUT BASEMENT
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
10/12
Primary:
20/12
Teritary:
10/12
Gable:
3/12
Porch:
Roof Load
20
Live:
10
Dead:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
9
First Floor Ceiling:
8
Second Floor Ceiling:
30' 10"
Maximum House Height:
Key Features
Attached
Basement
Covered Front Porch
Deck
Dining Room
Double Vanity Sink
Drive-under
Family Room
Formal LR
Foyer
Front Porch
His and Hers Master Closets
Kitchen Island
Laundry 2nd Fl
Master Bdrm Upstairs
Nook / Breakfast Area
Separate Tub and Shower
Sitting Area
Suited for corner lot
Suited for sloping lot
Walk-in Closet
Walkout Basement
Wraparound Porch
