Plan Specification: HHF-5869

Total Square Footage: 1,601

Main Level: 1,601

Bedrooms: 3

Baths: 2

Garages: 2

Width: 50 ft Depth: 71 ft

Foundation: Crawl Space, Slab


Pricing Options Click here...
Main Plan Photo
© copyright by designer

Plan: HHF-5869

A narrow lot open plan with split bedroom layout. Master suite has trayed ceiling (in master bedroom), garden tub, over-sized shower, and his and her closets. Island in kitchen. Flex space may serve as office, nursery or hobby room. Covered front and rear porch for grilling and casual conversation. Oversized garage with storage add to the features of this home.

ShareThis
Additional Images

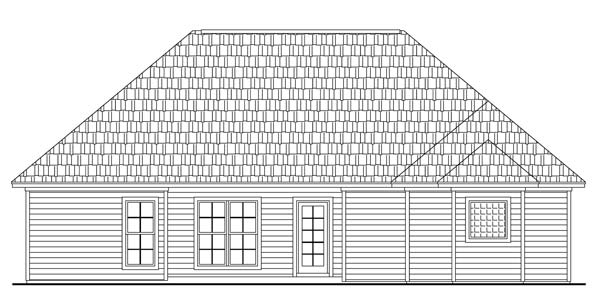

See all 2 photos and rear view
Plan Pricing Packages
HOUSE PLAN SETS
 One Set  $750.00
 Five Sets  $800.00
 PDF File Package  $885.00
 Vellums  $945.00
 CAD files  $1,385.00
ADDITIONAL PLAN OPTIONS
 Additional Sets  $55.00
 Materials List  $120.00
PROMOTIONAL ITEMS
 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Covered Front Porch
  • Covered Rear Porch
  • Crawlspace
  • Dining Room
  • Double Vanity Sink
  • Exercise Room
  • Front Porch
  • Great Room
  • His and Hers Master Closets
  • Home Office
  • Kitchen Island
  • Laundry 1st Fl
  • Library/Media Rm
  • Master Bdrm Main Floor
  • Nook / Breakfast Area
  • Oversized
  • Rear Porch
  • Separate Tub and Shower
  • Slab
  • Split Bedrooms
  • Storage Space
  • Workshop
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form

© copyright by designer
Floorplan:




Top

Plan Details

General House Information
Number of Stories:1
Width:50' 0"
Depth:71' 0"
Dwelling Number:Single
Bonus Access:None

Exterior Style
  • Traditional
  • Country
  • Ranch
  • Builders
  • Pet Lovers

Number of Rooms
Bedrooms:3
Full Baths:2

Finished Square Footage
Main Level:1601 Sq. Ft.
Total: 1601 Sq. Ft.

Unfinished Square Footage
Garage:531 Sq. Ft.
Storage:29 Sq. Ft.
Porch:181 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:2


Foundation
  • Crawl Space
  • Slab

House And Ceiling Heights
First Floor Ceiling:9
Maximum House Height:22' 3"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4

Roof Pitch
Primary:10:12

Roof Load
Live:30
Dead:10

INSULATION
Exterior Wall:15
Interior Wall:0
Ceiling:38
Floor:19

Number of Rooms
Bedrooms:3
Full Baths:2
