Plan Specification: HHF-5999

Total Square Footage: 4,195

Main Level: 2,670

Second Level: 1,525

Bedrooms: 5

Baths: 4        Half: 2

Garages: 3

Width: 70 ft Depth: 68 ft

Foundation: Basement


Pricing Options Click here...

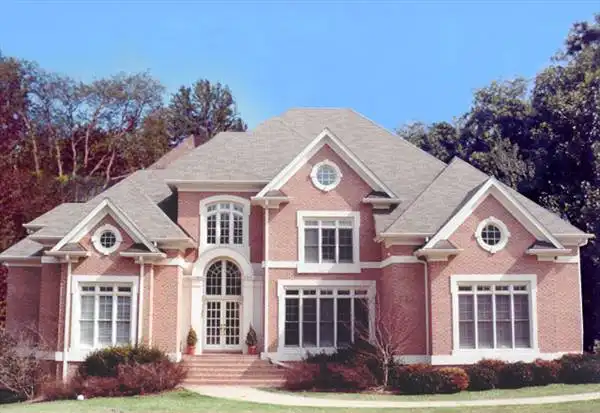

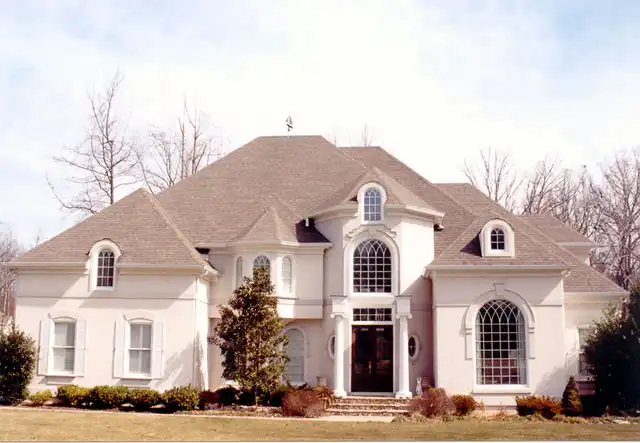

Main Plan Photo
© copyright by designer

Plan: HHF-5999

European extravagance, dazzled with chateau style, makes this enormous manor home the epitome of luxury and charm. A dramatic display of windows and a glorious arched entrance beautify the exterior. Stately steps lead up the front porch to double doors, which open inside to the spacious two-story foyer. A dramatic staircase cascades into foyer, which is flanked on either side by the formal dining room and parlor. The dining room is defined by its outlying columns. Straight ahead, the lofty two-story grand room is illuminated by a curved wall of windows at the rear. An enormous hearth warms the entire room and is flanked by built-in shelves. The cozy keeping room, warmed by a second fireplace, is open to both the casual bayed breakfast room and the gourmet island kitchen. The three-car garage is located nearby. The left wing of the main floor is almost entirely devoted to the master suite, which provides a large master bath with a whirlpool tub and a huge walk-in closet. Upstairs, all of the family bedrooms feature their own private baths. The optional fifth bedroom can also be converted to a home office and has a private bath.


ShareThis

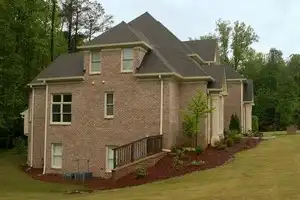

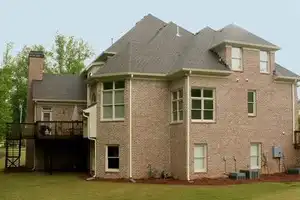

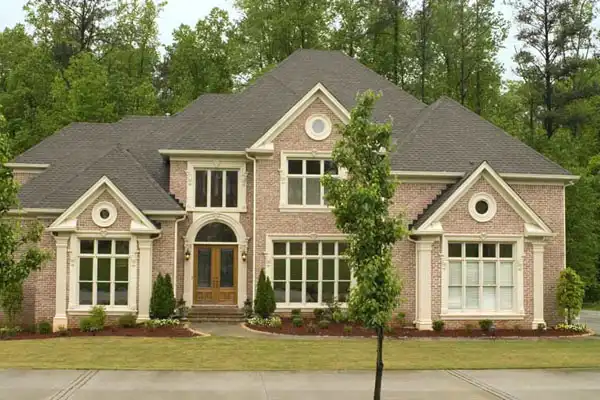

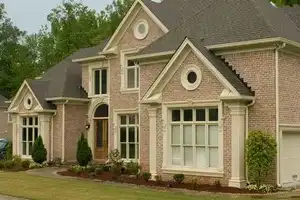

Additional Images

Plan Pricing Packages
HOUSE PLAN SETS

 Study Set (PDF)    $1,115.00
 5 Bond Sets    $1,335.00
 PDF    $1,665.00
 CAD (Email)    $2,500.00
FOUNDATION OPTIONS

 Basement  $0.00
ADDITIONAL PLAN OPTIONS

 Additional Set  $140.00
 Right Read Reverse Plans  $175.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Daylight Basement
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
1st Floor Plan:





© copyright by designer
2nd Floor Plan:


© copyright by designer
Basement Floor Plan:

Top

Plan Details

General House Information
Number of Stories:2
Width:70' 0"
Depth:68' 0"
Dwelling Number:Single

Exterior Style
  • Traditional
  • Daylight Bsmt
  • Classical
  • European

Number of Rooms
Bedrooms:5
Full Baths:4
Half Baths:2

Finished Square Footage
Main Level:2670 Sq. Ft.
Upper Level: 1525 Sq. Ft.
Total: 4195 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:3


Foundation
  • Basement

House And Ceiling Heights
First Floor Ceiling:9
Second Floor Ceiling:8
Maximum House Height:38' 7"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4

Roof Load
Live:40 lbs
Dead:12 lbs

INSULATION
  • Per IRC Climate Zones

Number of Rooms
Bedrooms:5
Full Baths:4
Half Baths:2
