Plan Specification: HHF-6140

Total Square Footage: 7,802

Main Level: 4,216

Second Level: 3,586

Bedrooms: 5

Baths: 4        Half: 1

Garages: 4

Width: 123 ft Depth: 73 ft

Foundation: Basement


Pricing Options Click here...

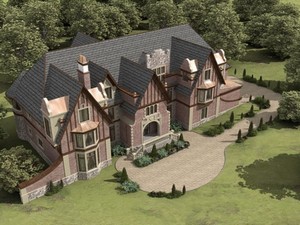

Main Plan Photo
© copyright by designer

Plan: HHF-6140

As you approach this stately edifice with its combination of brick, timber and stacked stone, you are reminded of the magnificent English country homes of the landed gentry. But as you enter the soaring two-story vestibule its evident that the best is truly yet to come. Ahead of you is a sweeping double circular staircase spotlighted by a domed ceiling, and beyond is the Grand Room with its panoramic views and barrel ceiling. The spacious and efficient kitchen is open to the sky-lit Morning and Keeping Rooms and adjacent to the Formal Dining room.

This fabulous home is ideal for families that enjoy entertaining in their theater or having visitors stay over in the Guest Suite, which is thoughtfully located away from the familys quarters. The luxurious Master Suite includes a romantic bath, shower and fireplace situated in the circular turret, a toilet room that also contains a bidet, and separate walk-in closets and dressing areas.

The home also features a two-story library, three additional bedrooms and a four car garage. Beyond the classic elegance of this Georgian manor are many other features for everyday efficiency, such as the lift (elevator) and large laundry and craft room on the second floor and the sitting room connecting two of the bedrooms ideal for childrens play and study areas.

For those that want the grandeur of an elegant country manor with a sophistication and efficient floor plan, the Dysart Castle is their ideal home.

ShareThis
Treat yourself to 10% off all house plan packages, over $500 see details

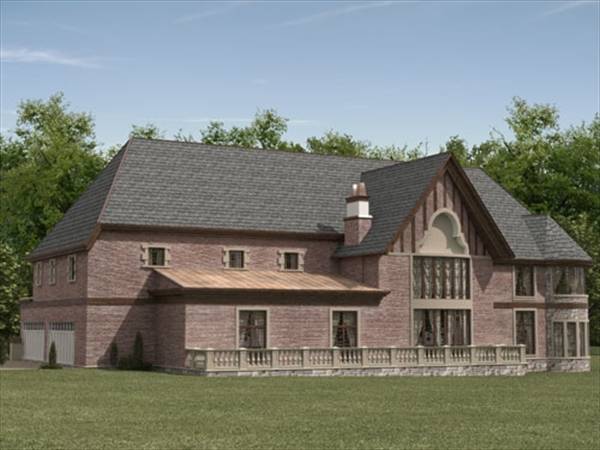

Additional Images

Plan Pricing Packages
HOUSE PLAN SETS

 PDF    $3,630.00
 CAD (Email)    $5,445.00
FOUNDATION OPTIONS

 Basement  $0.00
ADDITIONAL PLAN OPTIONS

 Additional Set  $220.00
 Right Read Reverse Plans  $250.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Daylight Basement
  • Rear Porch
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
1st Floor Plan:





© copyright by designer
2nd Floor Plan:

Top

Plan Details

General House Information
Number of Stories:2
Width:123' 0"
Depth:73' 0"
Dwelling Number:Single

Exterior Style
  • Traditional
  • Daylight Bsmt
  • European
  • Tudor

Number of Rooms
Bedrooms:5
Full Baths:4
Half Baths:1

Finished Square Footage
Main Level:4216 Sq. Ft.
Upper Level: 3586 Sq. Ft.
Total: 7802 Sq. Ft.

Unfinished Square Footage
Garage:1089 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:4


Foundation
  • Basement

House And Ceiling Heights
First Floor Ceiling:10
Second Floor Ceiling:9
Maximum House Height:46' 0"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4 or 2x6

Roof Load
Live:40
Dead:12

INSULATION
  • Per IRC Climate Zones

Number of Rooms
Bedrooms:5
Full Baths:4
Half Baths:1
