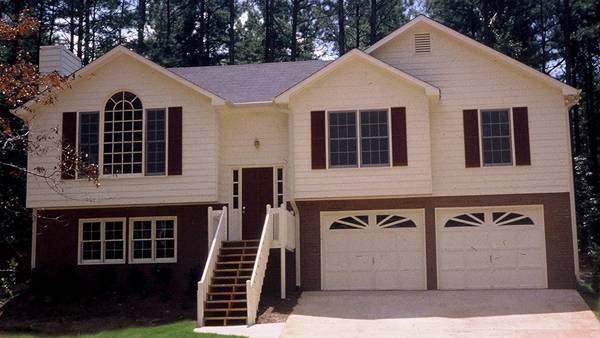

Rendering Rear Elevation Front Photo Floor Plan Lower Level
© copyright by designer

Plan: 6777

Plan Specification
Total Square Footage: 1,269
Main Level: 1,227
Lower Level: 42
Bonus: 384
Bedrooms: 3
Baths: 2 Half: 0
Garages: 2
Width/Depth: 45 ft / 36 ft
Foundation: WALK OUT BASEMENT
Pin It
© copyright by designer
Floor Plan:
Floor Plan
Need to make changes?
Call for a free modification quote
877-895-5299 or LIVE CHAT NOW
or use this quote form
© copyright by designer
Lower Level:
Lower Level
Similar plans: 8241, 8243, 8242
More plans by this designer/architect
ShareThis
Add to Favorites
Purchase Plans
PLAN DESCRIPTION This elegant split-foyer has vaulted ceilings that span the house from front to back & an open floor plan creating great flow from room to room. Plant shelves topping 8 petition walls between the kitchen and living room creates added interest. The master suite is spacious including a large closet, separate shower and garden tub.

Get Your House Plans In Minutes!
NEW PDFs Now!™ Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
10% Off All House Plans Through The End Of August !!! see details
House Plan Pricing
PDFs Now!™ $600.00
$675.00
$875.00
PDFs Now!™ $875.00
More details about our plan packages
Foundation Options
$0.00
Additional Plan Options
$175.00
$50.00
$50.00
$250.00
$60.00
$200.00
$300.00
Best Price Guarantee, learn more

Live Chat  |  Email
Key Features
• 2 Story Volume
• Attached
• Deck
• Double Vanity Sink
• Drive-under
• Fireplace
• Foyer
• Great Room
• Master Bdrm Main Floor
• Peninsula / Eating Bar
• Separate Tub and Shower
• Suited for narrow lot
• Suited for sloping lot
• Unfinished Space
• Vaulted Ceilings
• Walk-in Closet
• Walkout Basement
Plan Details
General House Information
1
Number of Stories:
45' 0"
Width:
36' 0"
Depth:
Single
Dwelling Number:
Exterior Style
Southern
Traditional
Number of Rooms
3
Bedrooms:
2
Full Baths:
Finished Square Footage
1,227 Sq. Ft.
Main Level:
42 Sq. Ft.
Lower Level:
1,269 Sq. Ft.
Total:
Unfinished Square Footage
621 Sq. Ft.
Garage:
384 Sq. Ft.
Bonus Room:
GARAGE
Under
Garage Location:
2
Garage Size:
Foundation
WALK OUT BASEMENT
House And Ceiling Heights
8'
First Floor Ceiling:
24' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
7/12
Primary:
Roof Load
20
Live:
10
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
3
Bedrooms:
2
Full Baths:
