Plan Specification: HHF-7029

Total Square Footage: 2,502

Main Level: 1,255

Second Level: 1,247

Bedrooms: 3

Baths: 2        Half: 1

Garages: 2

Width: 35 ft Depth: 63 ft

Foundation: Basement, Crawlspace, Slab


Pricing Options Click here...

Main Plan Photo
© copyright by designer

Plan: HHF-7029

Are you under the impression that a home designed for a narrow lot cant feel as open as a standard-width home? The cleverly arranged angle design of the living spaces in this narrow home will challenge the spaciousness and convenience of any standard-width floor plan. Stacked in a stair-step fashion, the great room, dining room, and kitchen flow at a diagonal, granting the ease of an open floor plan, while honoring the size restrictions of a narrow home site. Those in the kitchenwhether sitting at the angled snack bar or in the breakfast nookcan enjoy views of the television in the great rooms angled media center. A patio is nestled in the ell formed by the dining room and great room. Not all of the main level is enveloped in such openness. Appropriately, a hallway sandwiched between the powder room and the foyer leads to a den, which is enclosed behind double doors.

ShareThis
Treat yourself to 10% off all house plan packages, over $500 see details

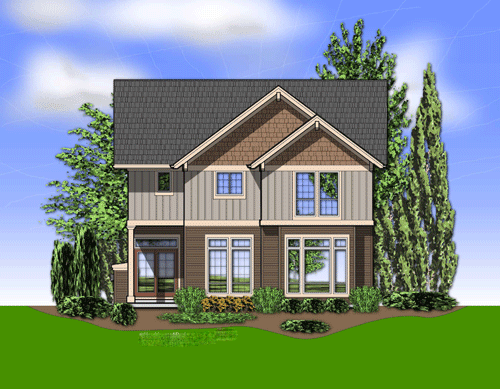

Additional Images

Plan Pricing Packages
HOUSE PLAN SETS

 Basic Package    $850.00
 Construction Package    $950.00
 Modification Package: PDF    $1,210.00
 Modification Package: CAD    $1,955.00
FOUNDATION OPTIONS

 Crawlspace  $0.00
 Slab  $125.00
 Basement  $275.00
ADDITIONAL PLAN OPTIONS

 Additional Sets  $40.00
 Full Reverse Sets  $100.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • 2 Story Volume
  • Attached
  • Basement
  • Bonus Room
  • Covered Rear Porch
  • Crawlspace
  • Dining Room
  • Double Vanity Sink
  • Fireplace
  • Foyer
  • Great Room
  • Home Office
  • Kitchen Island
  • Laundry 2nd Fl
  • Master Bdrm Upstairs
  • Nook / Breakfast Area
  • Open Floor Plan
  • Rear Porch
  • Separate Tub and Shower
  • Slab
  • Tandem
  • Vaulted Ceilings
  • Walk-in Closet
  • Walk-in Pantry
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
First Floor Plan:





© copyright by designer
Second Floor Plan:

Top

Plan Details

General House Information
Number of Stories:2
Width:35' 0"
Depth:63' 0"
Dwelling Number:Single
Bonus Access:2nd Floor

Exterior Style
  • Traditional
  • Craftsman
  • PDFs Fast!

Number of Rooms
Bedrooms:3
Full Baths:2
Half Baths:1

Finished Square Footage
Main Level:1255 Sq. Ft.
Upper Level: 1247 Sq. Ft.
Total: 2502 Sq. Ft.

Unfinished Square Footage
Garage:535 Sq. Ft.
Porch:72 Sq. Ft.
Bonus Room:295 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:2


Foundation
  • Basement
  • Crawlspace
  • Slab

House And Ceiling Heights
First Floor Ceiling:Varies
Maximum House Height:30' 9"

Framing Information
Roof Framing:Truss
Exterior Wall Framing:2x6

Roof Pitch
Primary:9/12

Roof Load
Live:25
Dead:15
Wind:0

INSULATION
Exterior Wall:21
Interior Wall:0
Ceiling:38
Floor:30

Number of Rooms
Bedrooms:3
Full Baths:2
Half Baths:1
