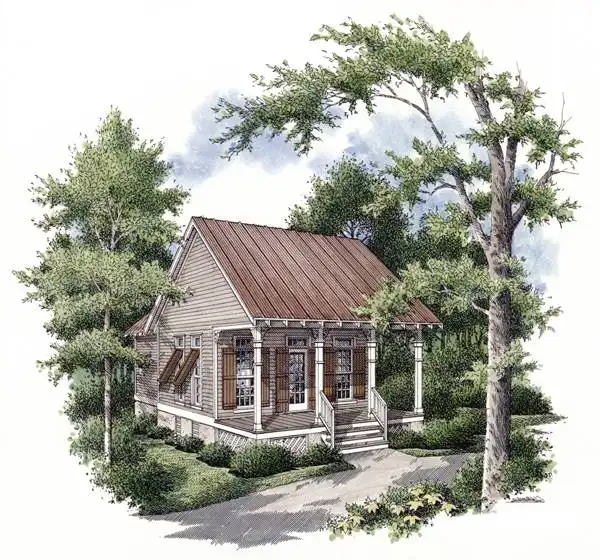

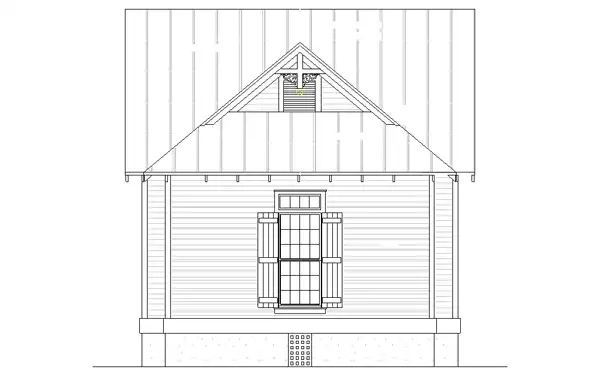

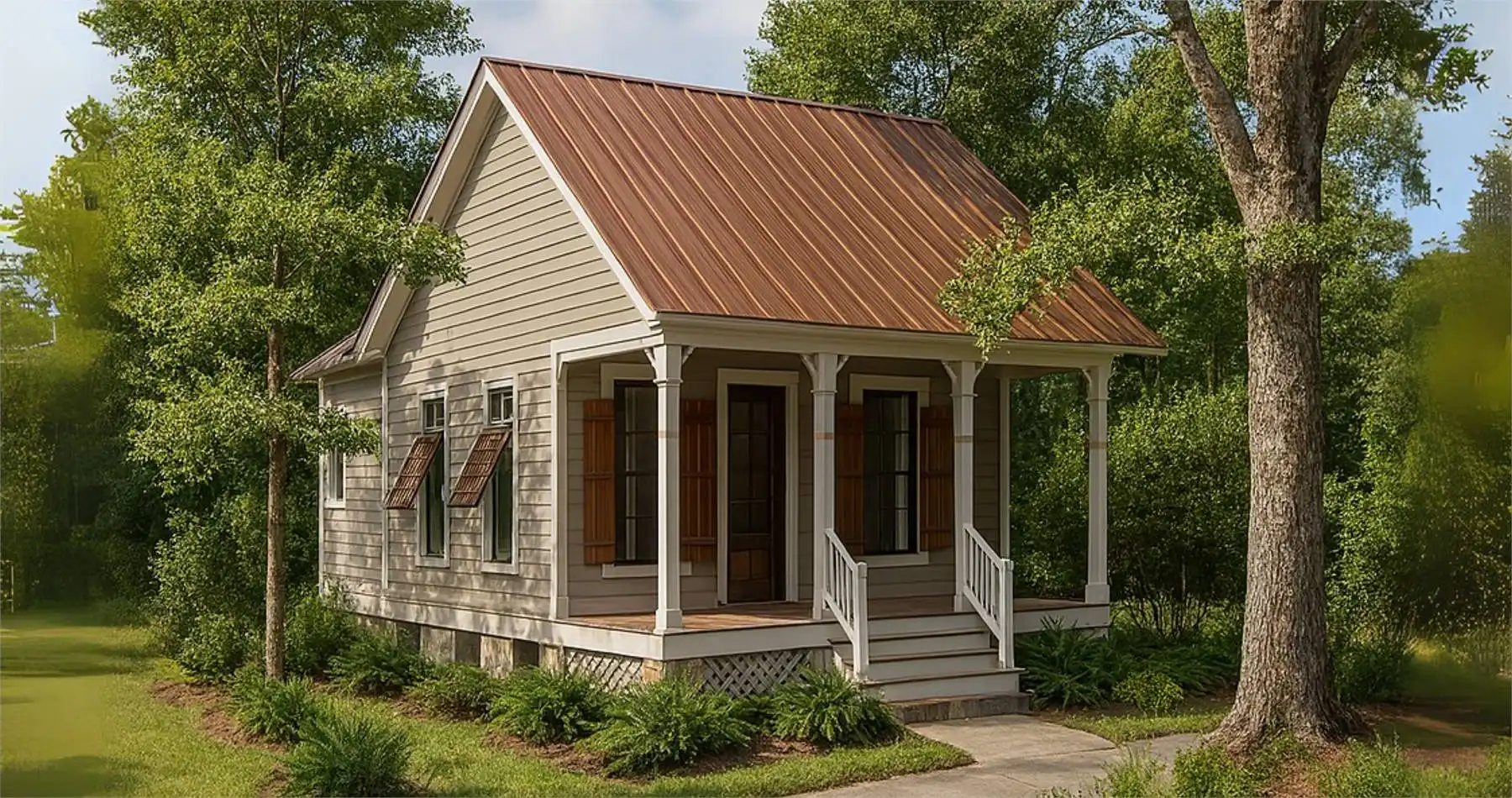

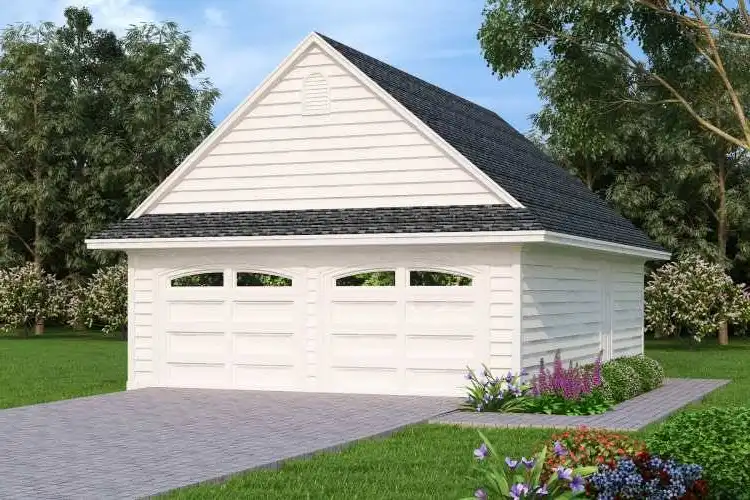

Front Rendering Right Side Elevation Left side elevation Rear Exterior Optional Garage Plan First Floor Plan
© copyright by designer

Plan: 7104

Plan Specification
Total Square Footage: 569
Main Level: 569
Bedrooms: 1
Baths: 1 Half: 0
Garages: 0
Width/Depth: 20 ft / 39 ft
Foundation: Crawl Space Foundation, Optional Concrete Slab Foundation, Optional Custom Foundation Design
Pin It
© copyright by designer
First Floor Plan:
First Floor Plan



Similar plans: 8324
More plans by this designer/architect
ShareThis
Add to Favorites
Purchase Plans
PLAN DESCRIPTION This one bed room cottage is ideal for use as a guest house or vacation cabin. The front porch is a full 8 foot wide and can accommodate rocking chairs and porch swings. Enter the front door and you will be amazed at the space. The living area is large enough for a full size furniture arrangement. The kitchen is compact but contains an abundance of work space. There is a floor to ceiling pantry and a moveable island. The master suite has two walk-in closets and a full size bath. A seperate garage plan is available upon request.
Get Your House Plans In Minutes!
NEW PDFs Now!™ Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Shop Our Memorial Day House Plan Sale! $50 Off House Plans Today Only! see details
House Plan Pricing
PDFs Now!™ $500.00
PDFs Now!™ $620.00
$630.00
$645.00
$690.00
$750.00
$1,428.00
More details about our plan packages
Foundation Options
PDFs Now!™ available $0.00
PDFs Now!™ available $100.00
$300.00
Additional Plan Options
$175.00
$100.00
$15.00
$125.00
$60.00
Best Price Guarantee, learn more

Live Chat  |  Email
Key Features
• Covered Front Porch
• Front Porch
• Laundry 1st Fl
• None
• Suited for narrow lot
Plan Details
General House Information
1
Number of Stories:
20' 0"
Width:
39' 0"
Depth:
Single
Dwelling Number:
Exterior Style
Cottage
Farm House
Traditional
Facade
Siding
Number of Rooms
1
Bedrooms:
1
Full Baths:
Finished Square Footage
569 Sq. Ft.
Main Level:
569 Sq. Ft.
Total:
Unfinished Square Footage
160 Sq. Ft.
Porch:
GARAGE
0
Garage Size:
Foundation
Crawl Space Foundation
Optional Concrete Slab Foundation
Optional Custom Foundation Design
House And Ceiling Heights
9
First Floor Ceiling:
19' 7"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
10:12
Primary:
Insulation (R)
11
Exterior Wall:
0
Interior Wall:
38
Ceiling:
19
Floor:
Number of Rooms
1
Bedrooms:
1
Full Baths:
