Plan Specification: HHF-7764

Total Square Footage: 1,709

Main Level: 1,709

Bedrooms: 3

Baths: 1        Half: 1

Garages: 2

Width: 70 ft Depth: 60 ft

Foundation: Basement, Crawl Space, ICF - Basement (Insul. Conc. Forms), ICF - Slab (Insul. Conc Forms), Slab Foundation, Walk-out Basement


Pricing Options Click here...

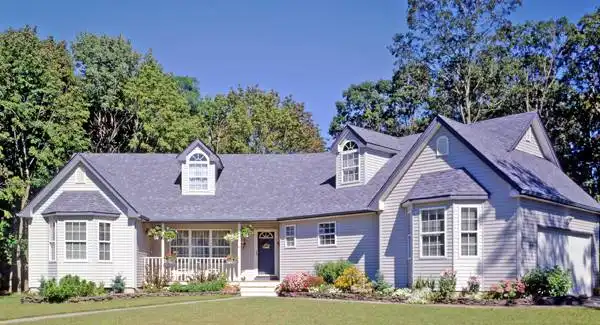

Main Plan Photo
© copyright by designer

Plan: HHF-7764

This photographed version of plan number 2806 shows a wonderful adaptation in siding versus the brick in 2806. It shares the same wonderful floor plan which provides for a beautiful flowing living area maximizing the angled plan plus a distintively private master suite. One of our all-time favorites.

ShareThis
Additional Images

See all 4 photos and rear view
Plan Pricing Packages
HOUSE PLAN SETS
 Review Set with Material List  $179.00
 PDF BID SET  $575.00
 Upgrade From a Review Set  $576.00
 Four Set Package  $675.00
 Eight Set Package  $755.00
 PDF Construction Set - Single Use  $845.00
 Reproducible Vellum Set  $870.00
 CAD FILE - single use  $1,295.00
FOUNDATION OPTIONS
 Crawl Space  $0.00
 Slab Foundation  $0.00
 Basement  $100.00
 ICF - Slab (Insul. Conc Forms)  $100.00
 ICF - Basement (Insul. Conc. Forms)  $150.00
 Walk-out Basement  $175.00
ADDITIONAL PLAN OPTIONS
 Additional Set  $50.00
 Material List (if available)  $75.00
 Mirror Reverse  $50.00
 Full Reverse Plans (If available)  $350.00
 Multiple Use License (For more than one home)  $250.00
 High Wind Structural Drawings  $150.00
PROMOTIONAL ITEMS
 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Covered Front Porch
  • Covered Rear Porch
  • Daylight Basement
  • Dining Room
  • Double Vanity Sink
  • Fireplace
  • Foyer
  • Great Room
  • His and Hers Master Closets
  • Laundry 1st Fl
  • Master Bdrm Main Floor
  • Peninsula / Eating Bar
  • Separate Tub and Shower
  • Split Bedrooms
  • Walk-in Closet
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form

© copyright by designer

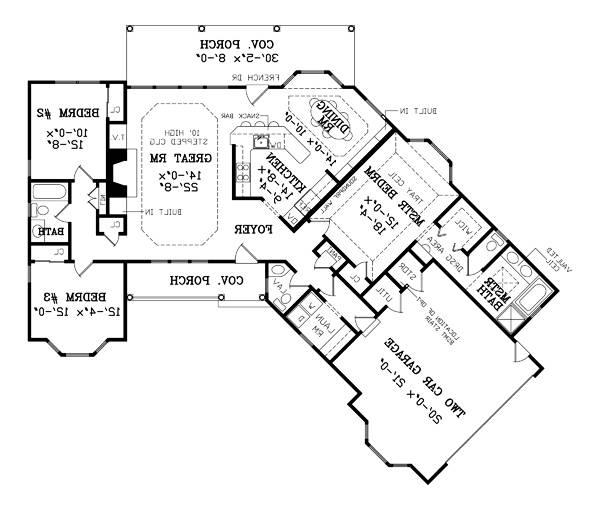

First Floor Plan:




Top

Plan Details

General House Information
Number of Stories:1
Width:70' 1"
Depth:60' 7"
Dwelling Number:Single

Exterior Style
  • Country
  • Farm House
  • Ranch

Facade
  • OwnersChoice

Number of Rooms
Bedrooms:3
Full Baths:1
Half Baths:1

Finished Square Footage
Main Level:1709 Sq. Ft.
Total: 1709 Sq. Ft.

Unfinished Square Footage
Garage:448 Sq. Ft.
Porch:323 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:2


Foundation
  • Basement
  • Crawl Space
  • ICF - Basement (Insul. Conc. Forms)
  • ICF - Slab (Insul. Conc Forms)
  • Slab Foundation
  • Walk-out Basement

House And Ceiling Heights
First Floor Ceiling:9
Maximum House Height:20' 6"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4

Roof Pitch
Primary:9: 12

Roof Load
Live:30
Dead:10
Wind:90

INSULATION
Exterior Wall:13
Interior Wall:0
Ceiling:30
Floor:19

Number of Rooms
Bedrooms:3
Full Baths:1
Half Baths:1
