Plan Specification: HHF-7765

Total Square Footage: 2,243

Main Level: 2,243

Bedrooms: 3

Baths: 2        Half: 1

Garages: 2

Width: 83 ft Depth: 53 ft

Foundation: Basement, Crawl Space, Slab Foundation, Walk-out Basement


Pricing Options Click here...

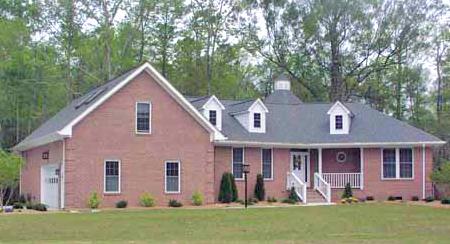

Main Plan Photo
© copyright by designer

Plan: HHF-7765

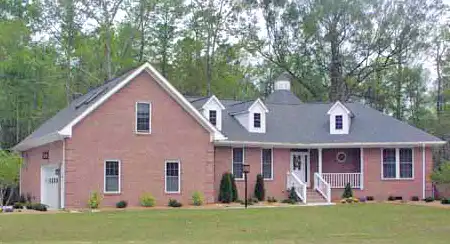

This photographed version of the dramatic angled plan 3705 is testament to the flexibility of our plans. It was built in brick rather than the siding of the original and the owners added a bonus room over the garage. Otherwise the dramatic octagonal great room and all the interior drama is retained. For great interior photos of another brick version see plan 3705.

ShareThis
Additional Images

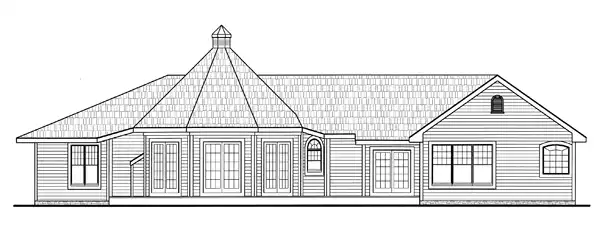

See all 3 photos and rear view
Plan Pricing Packages
HOUSE PLAN SETS
 Review Set with Material List  $179.00
 PDF BID SET  $645.00
 Upgrade From a Review Set  $656.00
 Four Set Package  $745.00
 Eight Set Package  $835.00
 PDF Construction Set - Single Use  $935.00
 Reproducible Vellum Set  $965.00
 CAD FILE - single use  $1,475.00
FOUNDATION OPTIONS
 Crawl Space  $0.00
 Slab Foundation  $0.00
 Basement  $100.00
 Walk-out Basement  $175.00
ADDITIONAL PLAN OPTIONS
 Additional Set  $50.00
 Material List (if available)  $75.00
 Mirror Reverse  $50.00
 Full Reverse Plans (If available)  $350.00
 Multiple Use License (For more than one home)  $250.00
 High Wind Structural Drawings  $150.00
PROMOTIONAL ITEMS
 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Daylight Basement
  • Front Porch
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form

© copyright by designer

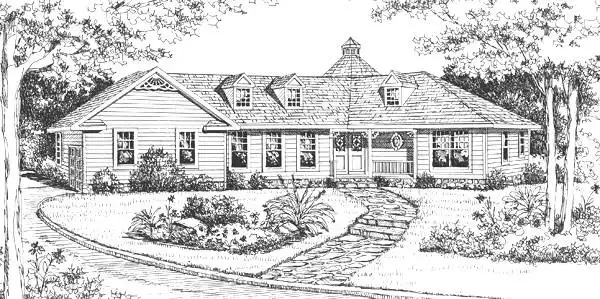

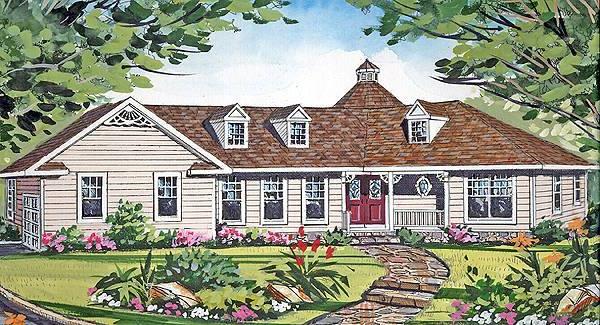

Front Rendering:





© copyright by designer
First Floor Plan:

Top

Plan Details

General House Information
Number of Stories:1
Width:83' 6"
Depth:53' 4"
Dwelling Number:Single

Exterior Style
  • Modern
  • Country
  • Farm House
  • Ranch

Facade
  • OwnersChoice

Number of Rooms
Bedrooms:3
Full Baths:2
Half Baths:1

Finished Square Footage
Main Level:2243 Sq. Ft.
Total: 2243 Sq. Ft.

Unfinished Square Footage
Garage:453 Sq. Ft.
Porch:67 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:2


Foundation
  • Basement
  • Crawl Space
  • Slab Foundation
  • Walk-out Basement

House And Ceiling Heights
First Floor Ceiling:9
Maximum House Height:28' 0"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4

Roof Pitch
Primary:8:12
Secondary:12:12

Roof Load
Live:30
Dead:10
Wind:90

INSULATION
Exterior Wall:13
Interior Wall:0
Ceiling:30
Floor:19

Number of Rooms
Bedrooms:3
Full Baths:2
Half Baths:1
