Plan Specification: HHF-7780

Total Square Footage: 1,994

Main Level: 1,994

Bedrooms: 4

Baths: 2

Garages: 2

Width: 57 ft Depth: 42 ft

Foundation: Basement, Crawl Space, Slab Foundation


Pricing Options Click here...

Main Plan Photo
© copyright by designer

Plan: HHF-7780

A charming, country influenced split bedroom ranch plan with a more formal, balanced facade. Victorian detailed bay windows flank each side of a brick faced center section, set under a deep covered porch. Round top windows in this section add lots of light to the entry and flanking rooms. I created ten foot high first floor ceilings to prevail throughout the living area in the center section, as well as in the master bedroom. A flexible office/parlor or 4th bedroom is located off the center hall as is the formal dining room. I designed the kitchen in a very open relationship with the Great Room. The re is a huge expansion space on the second floor. For photos of a built version see plan #4609.

ShareThis

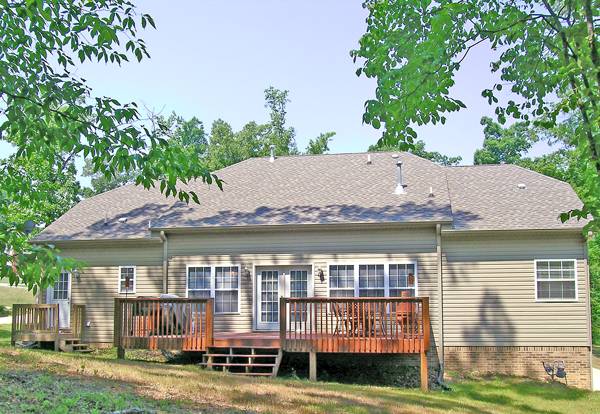

Additional Images

Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Plan Pricing Packages
HOUSE PLAN SETS

 PDF BID SET   PDFs Now!   $605.00
 Four Set Package    $705.00
 Eight Set Package    $795.00
 PDF Construction Set - Single Use   PDFs Now!   $895.00
 Reproducible Vellum Set    $920.00
 CAD FILE - single use    $1,395.00
FOUNDATION OPTIONS

 Crawl Space PDFs Now! available   $0.00
 Slab Foundation PDFs Now! available   $0.00
 Basement PDFs Now! available   $100.00
ADDITIONAL PLAN OPTIONS

 Additional Set  $50.00
 Material List (if available)  $75.00
 Mirror Reverse  $50.00
 Full Reverse Plans (If available)  $350.00
 Multiple Use License (For more than one home)  $250.00
 High Wind Structural Drawings  $150.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Bonus Room
  • Country Kitchen
  • Covered Front Porch
  • Dining Room
  • Double Vanity Sink
  • Fireplace
  • Foyer
  • Great Room
  • His and Hers Master Closets
  • Laundry 1st Fl
  • Master Bdrm Main Floor
  • Mud Room
  • Open Floor Plan
  • Peninsula / Eating Bar
  • Separate Tub and Shower
  • Split Bedrooms
  • Unfinished Space
  • Vaulted Ceilings
  • Walk-in Closet
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
First Floor Plan:





© copyright by designer
Second Floor Plan:

Top

Plan Details

General House Information
Number of Stories:1
Width:57' 6"
Depth:42' 4"
Dwelling Number:Single
Bonus Access:2nd Floor

Exterior Style
  • Country
  • Farm House
  • Ranch

Facade
  • OwnersChoice

Number of Rooms
Bedrooms:4
Full Baths:2

Finished Square Footage
Main Level:1994 Sq. Ft.
Total: 1994 Sq. Ft.

Unfinished Square Footage
Garage:424 Sq. Ft.
Porch:205 Sq. Ft.
Bonus Room:770 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:2


Foundation
  • Basement
  • Crawl Space
  • Slab Foundation

House And Ceiling Heights
First Floor Ceiling:10.1
Second Floor Ceiling:8.1
Maximum House Height:26' 0"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4

Roof Pitch
Primary:7: 12

Roof Load
Live:30
Dead:7
Wind:90

INSULATION
Exterior Wall:13
Interior Wall:0
Ceiling:30
Floor:19

Number of Rooms
Bedrooms:4
Full Baths:2
