Plan Specification: HHF-8091

Total Square Footage: 4,579

ENERGY STAR

Main Level: 2,705

Second Level: 1,874

Bedrooms: 4

Baths: 3        Half: 1

Garages: 3

Width: 64 ft Depth: 73 ft

Foundation: Basement


Pricing Options Click here...
Main Plan Photo
© copyright by designer

Plan: HHF-8091

Grand Georgian Style begins with this narrow lot design. Inside, the foyer opens to the two-story grand salon with its bow window overlooking the large private deck. This large and opulent home offers choices for entertaining and resting with an excellent traffic flow. For busy professionals with high expectations, the Westdrake Place is certain to please.

ShareThis
Additional Images

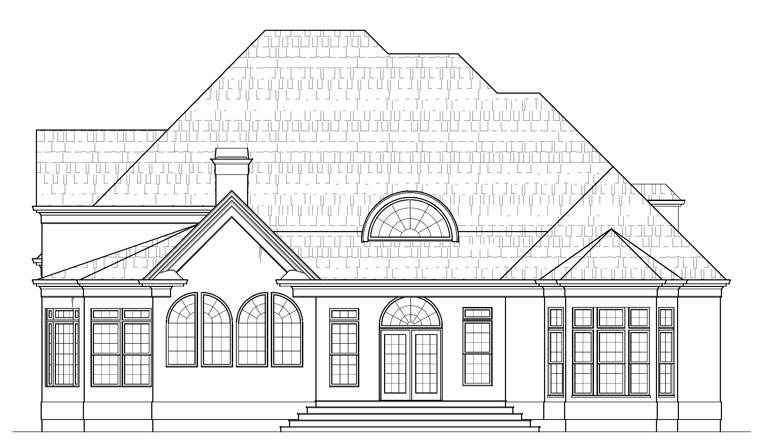

See all 2 photos and rear view
Plan Pricing Packages
HOUSE PLAN SETS
 One Set  $1,100.00
 5 Sets  $1,305.00
 PDF  $1,650.00
 Vellums  $1,650.00
 AutoCAD Disk  $2,475.00
FOUNDATION OPTIONS
 Basement  $0.00
ADDITIONAL PLAN OPTIONS
 ENERGY STAR Plan Package  $375.00
 Additional Set  $125.00
 Right Read Reverse Plans  $175.00
PROMOTIONAL ITEMS
 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • 2 Story Grand Salon
  • 2 Story Volume
  • Attached
  • Daylight Basement
  • Foyer
  • Gym
  • Library/Media Rm
  • Rear Porch
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form

© copyright by designer
1st Floor Plan:





© copyright by designer
2nd Floor Plan:

Top

Plan Details

General House Information
Number of Stories:2
Width:64' 0"
Depth:73' 0"
Dwelling Number:Single

Exterior Style
  • Colonial
  • Southern
  • Traditional
  • Daylight Bsmt
  • Sloping Lot

Number of Rooms
Bedrooms:4
Full Baths:3
Half Baths:1

Finished Square Footage
Main Level:2705 Sq. Ft.
Upper Level: 1874 Sq. Ft.
Total: 4579 Sq. Ft.

Unfinished Square Footage
Garage:672 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:3


Foundation
  • Basement

House And Ceiling Heights
First Floor Ceiling:9
Second Floor Ceiling:8
Maximum House Height:35' 2"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4

Roof Pitch
Primary:12/12

Roof Load
Live:40#
Dead:12#

INSULATION
  • Per IRC Climate Zones

Number of Rooms
Bedrooms:4
Full Baths:3
Half Baths:1
