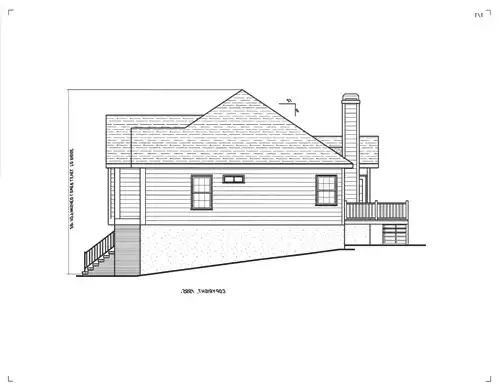

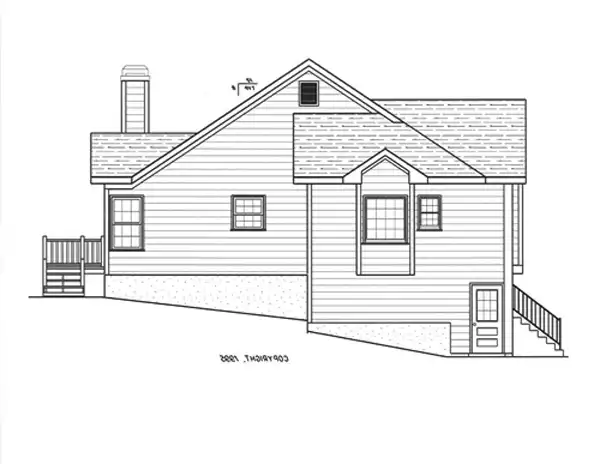

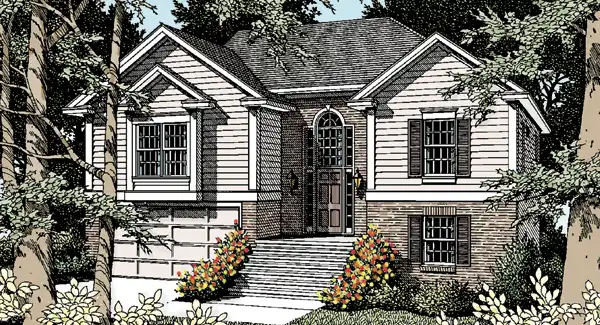

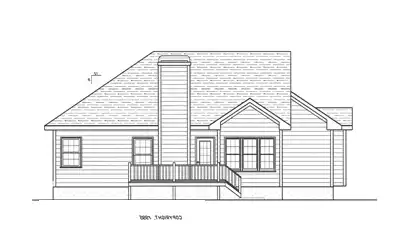

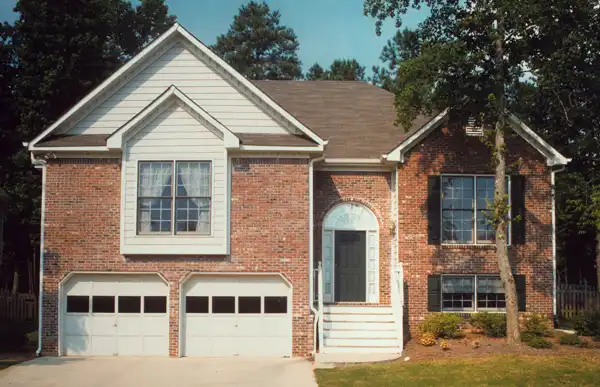

Rendering Right Elevation Rear Elevation Front Photo Left Elevation Floor Plan Lower Level
© copyright by designer

Plan: 8244

Plan Specification
Total Square Footage: 1,407
Lower Level: 40
Bonus: 224
Bedrooms: 3
Baths: 2 Half: 0
Garages: 2
Width/Depth: 46 ft / 40 ft
Foundation: WALK OUT BASEMENT
Pin It
© copyright by designer
Floor Plan:
Floor Plan
Need to make changes?
Call for a free modification quote
877-895-5299 or LIVE CHAT NOW
or use this quote form
© copyright by designer
Lower Level:
Lower Level
Similar plans: 8244, 5844
More plans by this designer/architect
ShareThis
Add to Favorites
Purchase Plans
PLAN DESCRIPTION Vaulted ceilings help expand the sense of space in this compact split foyer. The entry stairs climb to a living room with windows all across the back wall helping your view to go well beyond the walls of the house. A side fireplace is framed by the modified cathedral ceiling making it a focal point. The cathedral ceiling of the dining room opens to the foyer as well creating a dramatic entrance.
Get Your House Plans In Minutes!
NEW PDFs Now!™ Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
House Plan Pricing
$625.00
$700.00
PDFs Now!™ $975.00
$975.00
More details about our plan packages
Foundation Options
$0.00
Additional Plan Options
$175.00
$50.00
$50.00
$60.00
$300.00
$200.00
$250.00
$400.00
Best Price Guarantee, learn more
Live Chat  |  Email
Key Features
• 2 Story Volume
• Attached
• Bonus Room
• Deck
• Drive-under
• Fireplace
• Foyer
• Great Room
• Laundry 1st Fl
• Master Bdrm Main Floor
• Nook / Breakfast Area
• Separate Tub and Shower
• Split Bedrooms
• Suited for narrow lot
• Unfinished Space
• Vaulted Ceilings
• Walk-in Closet
• Walkout Basement
Plan Details
General House Information
2
Number of Stories:
46' 0"
Width:
40' 0"
Depth:
Single
Dwelling Number:
1st Floor
Bonus Access:
Exterior Style
Modern
Southern
Traditional
Number of Rooms
3
Bedrooms:
2
Full Baths:
Finished Square Footage
40 Sq. Ft.
Lower Level:
1,407 Sq. Ft.
Total:
Unfinished Square Footage
400 Sq. Ft.
Garage:
568 Sq. Ft.
Storage:
135 Sq. Ft.
Deck:
224 Sq. Ft.
Bonus Room:
GARAGE
Front
Garage Location:
2
Garage Size:
Foundation
WALK OUT BASEMENT
House And Ceiling Heights
8
First Floor Ceiling:
28' 10"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
8/12
Primary:
Roof Load
20
Live:
10
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
3
Bedrooms:
2
Full Baths:
