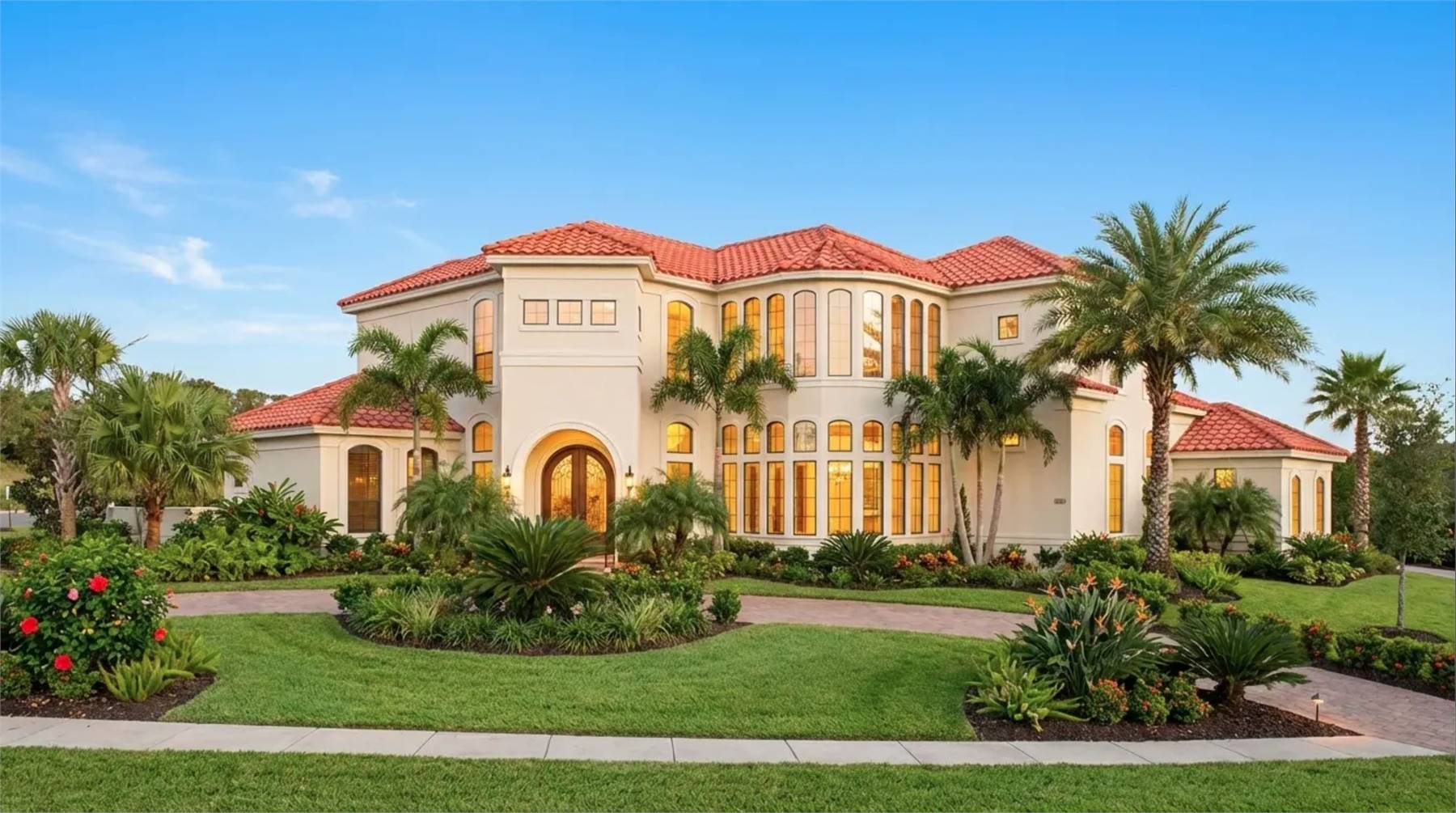

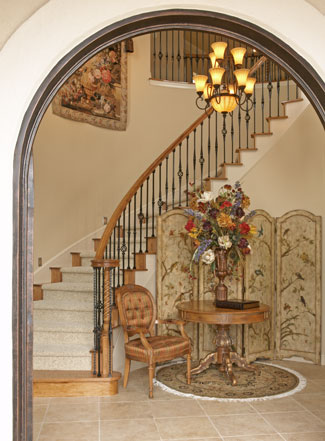

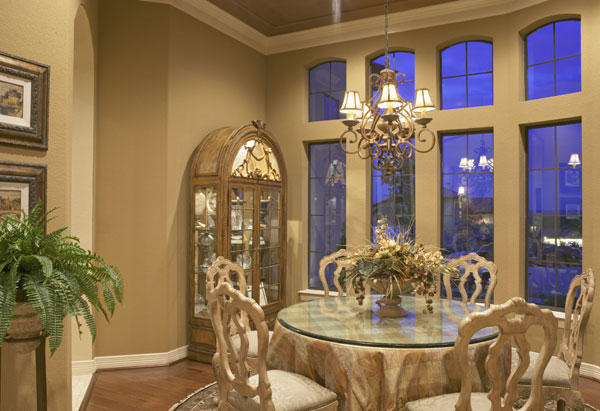

Front Photo Foyer Dining Room Kitchen Living Room Master Bedroom Master Bath Game Room Media Room Rear Photo First Floor Plan Second Floor Plan
© copyright by designer

Plan: 8424

Plan Specification
Total Square Footage: 3,804
Main Level: 2,593
Second Level: 1,211
Bedrooms: 4
Baths: 4 Half: 1
Garages: 2
Width/Depth: 85 ft / 80 ft
Foundation: Slab
Pin It
© copyright by designer
First Floor Plan:
First Floor Plan
Need to make changes?
Call for a free modification quote
877-895-5299 or LIVE CHAT NOW
or use this quote form
© copyright by designer
Second Floor Plan:
Second Floor Plan
More plans by this designer/architect
ShareThis
Add to Favorites
Purchase Plans
Get Your House Plans In Minutes!
NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
House Plan Pricing
$1,145.00
PDFs Now! $1,145.00
$2,290.00
More details about our plan packages
Foundation Options
$0.00
Additional Plan Options
$55.00
Best Price Guarantee, learn more
Live Chat  |  Email
Key Features
• 2 Bedrooms Down
• 2 Story Volume
• Arches
• Attached
• Built-in Bookcases
• Built-in Niches
• Dining Room
• Fireplace
• Formal Dining Room
• Foyer
• Front Porch
• Garage Storage
• Golf Cart Garage
• Great Room
• Guest Suite
• Home Theater
• Impressive Entrance
• Kitchen - Snack Bar
• Kitchen Island
• Laundry 1st Fl
• Library/Media Rm
• Master Bdrm Main Floor
• Master Suite
• Open Floor Plan
• Outdoor Fireplace
• Patio/Terrace/Veranda
• Side-entry
• Stucco Facade
• Unusually Shaped Rooms
• Various Ceiling Heights
• Walk-in Closet
• Walk-in Pantry
• Windows - Expansive Rear View
• Windows - Window Wall
Plan Details
General House Information
2
Number of Stories:
85' 8"
Width:
80' 4"
Depth:
Single
Dwelling Number:
Exterior Style
Mediterranean
North Carolina
Number of Rooms
4
Bedrooms:
4
Full Baths:
1
Half Baths:
Finished Square Footage
2,593 Sq. Ft.
Main Level:
1,211 Sq. Ft.
Upper Level:
3,804 Sq. Ft.
Total:
Unfinished Square Footage
601 Sq. Ft.
Garage:
704 Sq. Ft.
Porch:
GARAGE
Side
Garage Location:
2
Garage Size:
Foundation
Slab
House And Ceiling Heights
10
First Floor Ceiling:
9
Second Floor Ceiling:
30' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
6/12
Primary:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
4
Bedrooms:
4
Full Baths:
1
Half Baths:
