Plan Specification: HHF-8424

Total Square Footage: 3,804

Main Level: 2,593

Second Level: 1,211

Bedrooms: 4

Baths: 4        Half: 1

Garages: 2

Width: 85 ft Depth: 80 ft

Foundation: Slab


Pricing Options Click here...

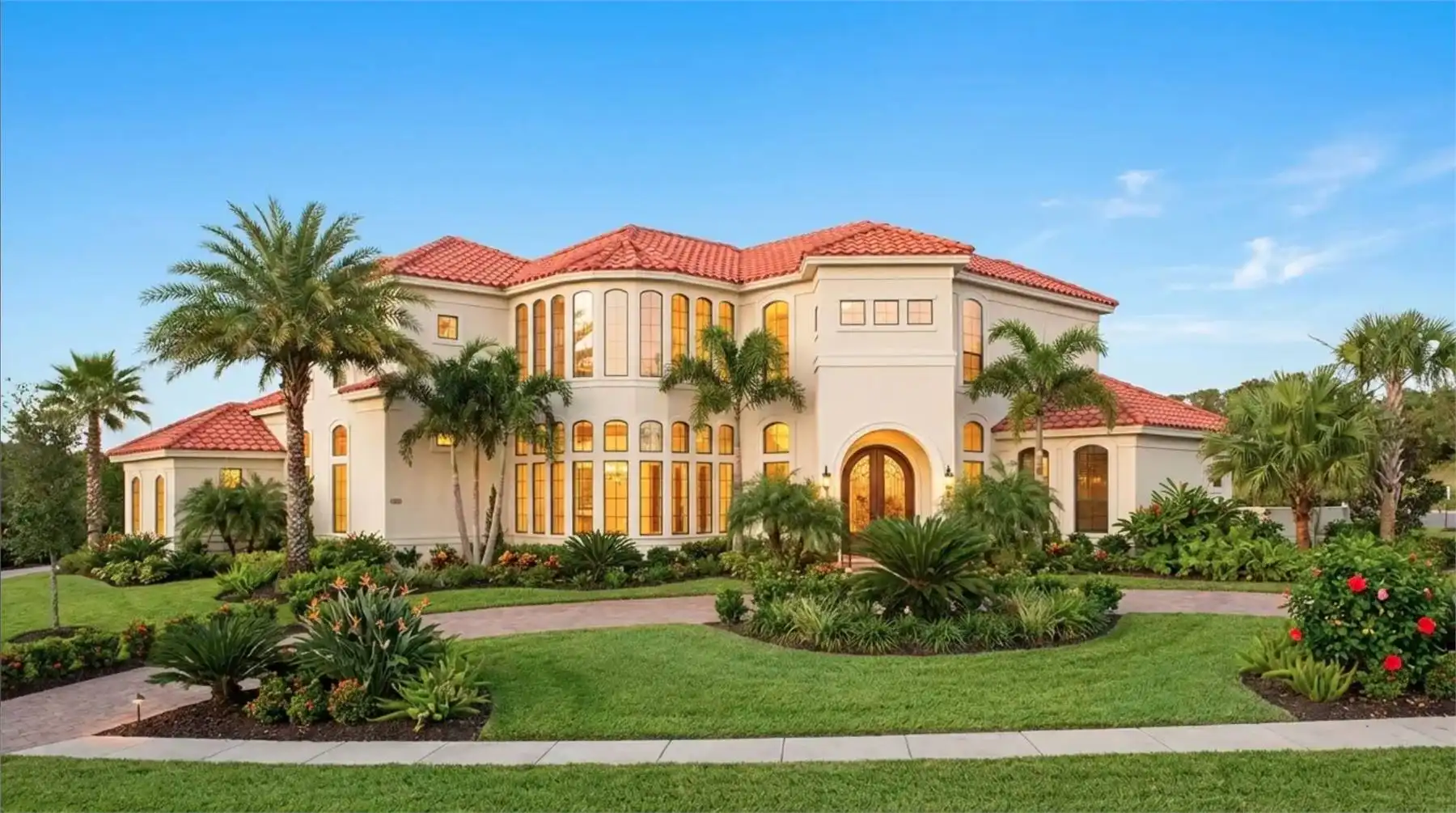

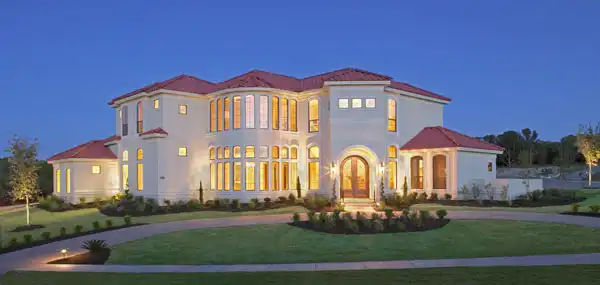

Main Plan Photo
© copyright by designer

Plan: HHF-8424

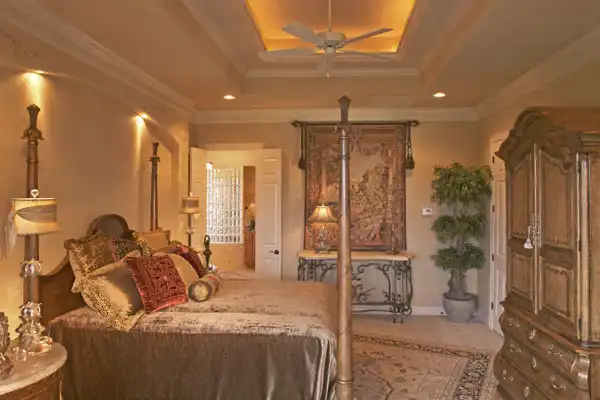

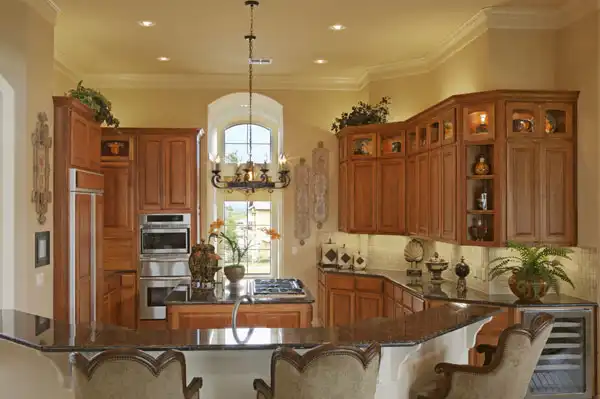

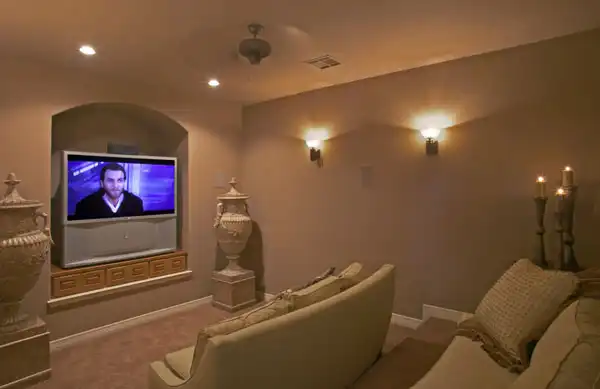

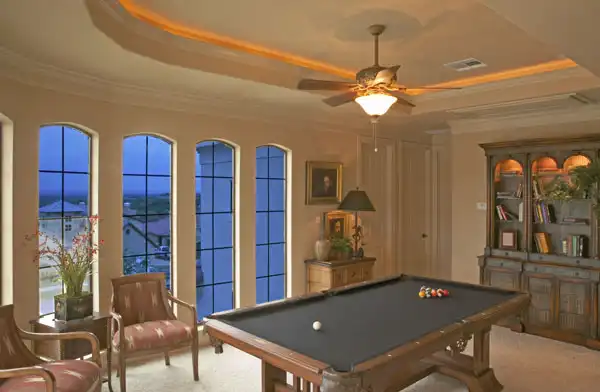

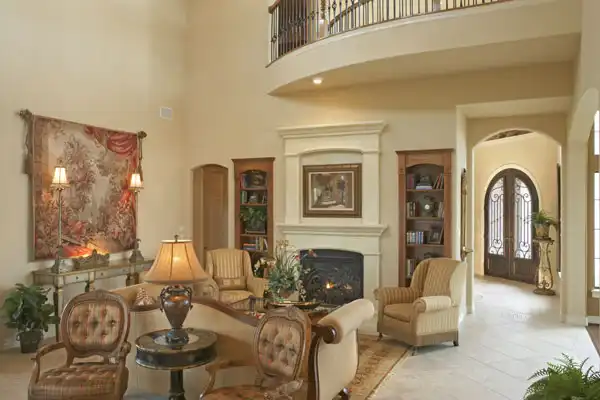

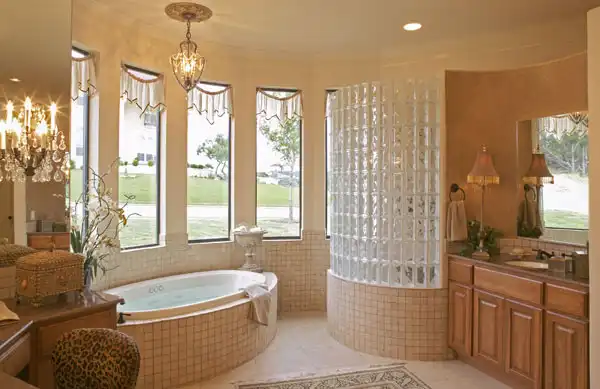

This Mediterranean style home features the ultimate covered patio for outdoor living. Inside, the back of the home is all glass. The gourmet Kitchen is open to the Great Room and Breakfast Room. The Master Suite includes a spa like Bath with a large soaking tub nestled in the curved wall. The upstairs includes a Home Theater, Game Room and two Bedrooms with private Baths.

ShareThis
$50 off any House Plan through midnight tonight! see details
Additional Images


Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Plan Pricing Packages
HOUSE PLAN SETS

 Vellum    $1,145.00
 PDF   PDFs Now!   $1,145.00
 CAD FILE    $2,290.00
FOUNDATION OPTIONS

 Slab  $0.00
ADDITIONAL PLAN OPTIONS

 Mirror Reverse  $55.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • 2 Bedrooms Down
  • 2 Story Volume
  • Arches
  • Attached
  • Built-in Bookcases
  • Built-in Niches

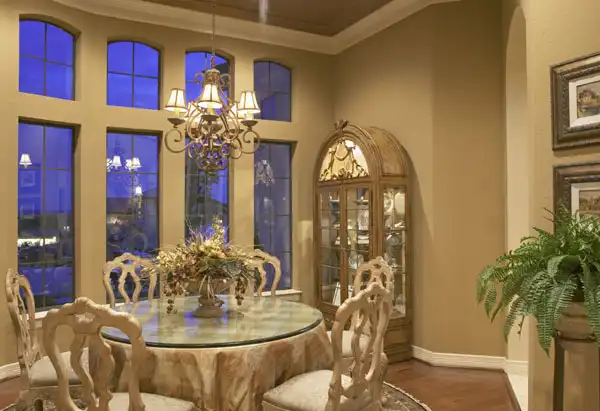

  • Dining Room
  • Fireplace
  • Formal Dining Room
  • Foyer
  • Front Porch
  • Garage Storage
  • Golf Cart Garage
  • Great Room
  • Guest Suite
  • Home Theater
  • Impressive Entrance
  • Kitchen - Snack Bar
  • Kitchen Island
  • Laundry 1st Fl
  • Library/Media Rm
  • Master Bdrm Main Floor
  • Master Suite
  • Open Floor Plan
  • Outdoor Fireplace
  • Patio/Terrace/Veranda
  • Side-entry
  • Stucco Facade
  • Unusually Shaped Rooms
  • Various Ceiling Heights
  • Walk-in Closet
  • Walk-in Pantry
  • Windows - Expansive Rear View
  • Windows - Window Wall
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
10% off ALL online house plan packages! Promo Code: Thanks2011

© copyright by designer
First Floor Plan:





© copyright by designer
Second Floor Plan:

Top

Plan Details

General House Information
Number of Stories:2
Width:85' 8"
Depth:80' 4"
Dwelling Number:Single

Exterior Style
  • Mediterranean
  • North Carolina

Number of Rooms
Bedrooms:4
Full Baths:4
Half Baths:1

Finished Square Footage
Main Level:2593 Sq. Ft.
Upper Level: 1211 Sq. Ft.
Total: 3804 Sq. Ft.

Unfinished Square Footage
Garage:601 Sq. Ft.
Porch:704 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:2


Foundation
  • Slab

House And Ceiling Heights
First Floor Ceiling:10
Second Floor Ceiling:9
Maximum House Height:30' 0"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4

Roof Pitch
Primary:6/12

INSULATION
  • Per IRC Climate Zones

Number of Rooms
Bedrooms:4
Full Baths:4
Half Baths:1
