House Plan: DFD-8514

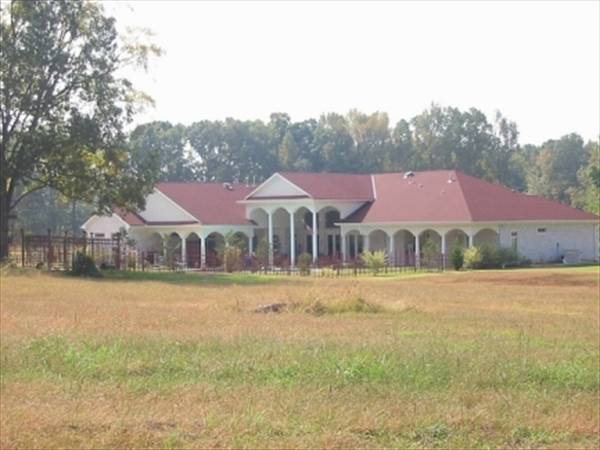

See All 2 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
5,126
BEDS
3
BATHS
4
STORIES
1
CARS
3
PLANS FROM $2,040
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

House Plan 8514
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $1,225
Digital set of plans for bidding purposes only

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $2,040
Five printed sets of house plans

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $2,840
Most recommended package

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $3,625
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$2040
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
5,126 Sq. Ft.
Main Level:
5,126 Sq. Ft.
Total:
Room Details
3
Bedrooms:
4
Full Baths:
General House Information
1
Number of Stories:
115' 0"
Width:
90' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Unfinished Square Footage
GARAGE
Side
Garage Location:
3
Garage Size:
Exterior Style
European
Mediterranean
Traditional
Collections
In-Law Suite
Luxury
Old House Classics
Foundation
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
6
Primary:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
10
First Floor Ceiling:
24' 0"
Maximum House Height:
Key Features
Attached
Fireplace
Rear Porch
Slab
