Plan Specification: HHF-8995

Total Square Footage: 2,149

Main Level: 2,149

Bedrooms: 3

Baths: 2        Half: 1

Garages: 3

Width: 64 ft Depth: 80 ft

Foundation: Concrete Slab Foundation, Optional Crawl Space Foundation, Optional Custom Foundation Design


Pricing Options Click here...

Main Plan Photo
© copyright by designer

Plan: HHF-8995

Compactly designed, this home is ideal for narrow or small lots. Living room features include 12' ceilings, fireplace, built-ins and a serving bar. A butlers pantry is conveniently located to make it easy to load the pantry with groceries straight from the garage but it can also be accessed from the kitchen and dining side.

ShareThis

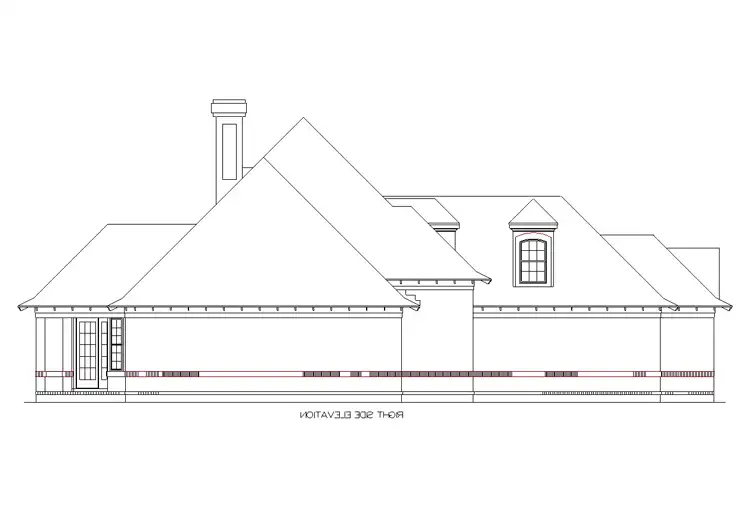

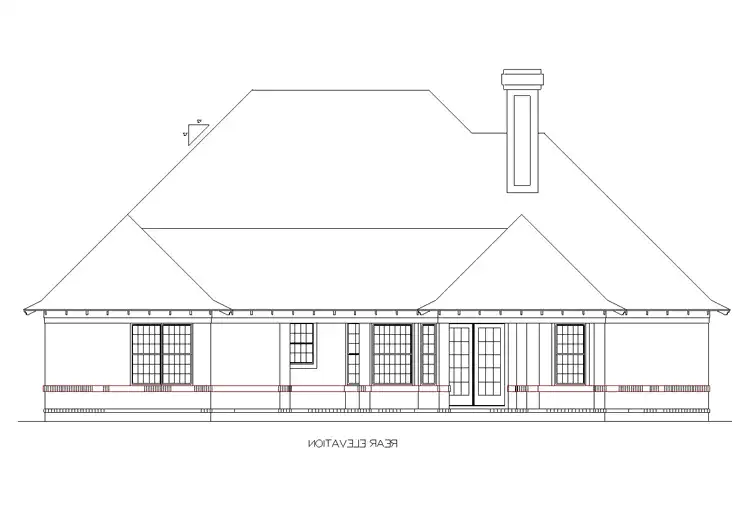

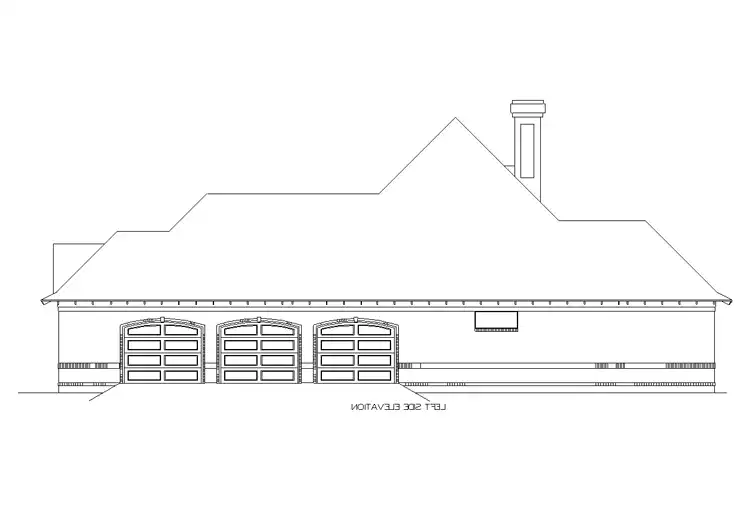

Additional Images


Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Plan Pricing Packages
HOUSE PLAN SETS

 PDF BID SET   PDFs Now!   $715.00
 1 set    $719.00
 4 sets    $739.00
 8 sets    $779.00
 12 sets    $829.00
 Reproducible Set    $869.00
 PDF Construction Set - 1 Build   PDFs Now!   $869.00
 Cad Files    $1,738.00
FOUNDATION OPTIONS

 Concrete Slab Foundation PDFs Now! available   $0.00
 Optional Crawl Space Foundation PDFs Now! available   $90.00
 Optional Custom Foundation Design  $400.00
ADDITIONAL PLAN OPTIONS

 Additional Sets  $50.00
 Mirror Reverse Set  $60.00
 FULL REVERSE PLANS ON REQUEST  $125.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Rear Porch
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer

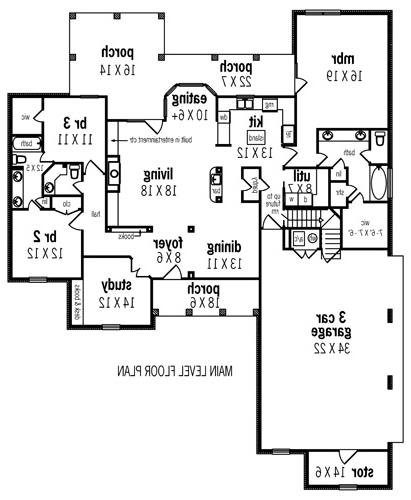

First Floor Plan:





© copyright by designer

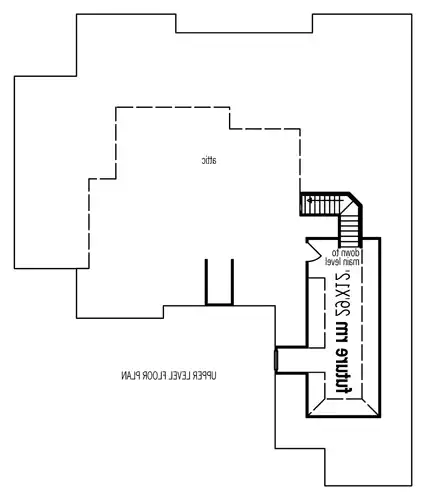

Bonus Room:

Top

Plan Details

General House Information
Number of Stories:1
Width:64' 0"
Depth:80' 0"
Dwelling Number:Single

Exterior Style
  • Traditional
  • Country
  • European
  • French Country

Facade
  • Brick

Number of Rooms
Bedrooms:3
Full Baths:2
Half Baths:1

Finished Square Footage
Main Level:2149 Sq. Ft.
Total: 2149 Sq. Ft.

Unfinished Square Footage
Garage:762 Sq. Ft.
Storage:107 Sq. Ft.
Porch:511 Sq. Ft.
Bonus Room:371 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:3


Foundation
  • Concrete Slab Foundation
  • Optional Crawl Space Foundation
  • Optional Custom Foundation Design

House And Ceiling Heights
First Floor Ceiling:12 & 9
Second Floor Ceiling:9
Maximum House Height:31' 0"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4

Roof Pitch
Primary:12:12
Porch:6:12

INSULATION
Exterior Wall:11
Interior Wall:0
Ceiling:38
Floor:19

Number of Rooms
Bedrooms:3
Full Baths:2
Half Baths:1
