House Plan: DFD-11765

Pin It
See All 6 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
594
BEDS
0
BATHS
1
STORIES
1
CARS
0
PLANS FROM $600
For questions and help, live chat, email or call us at 877-895-5299

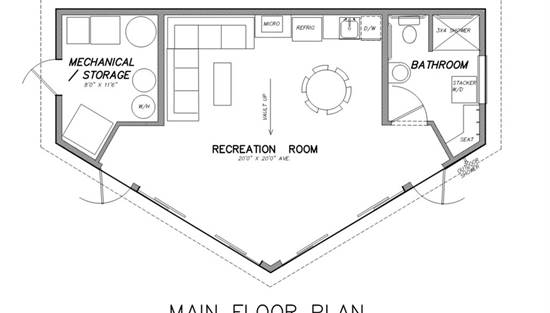

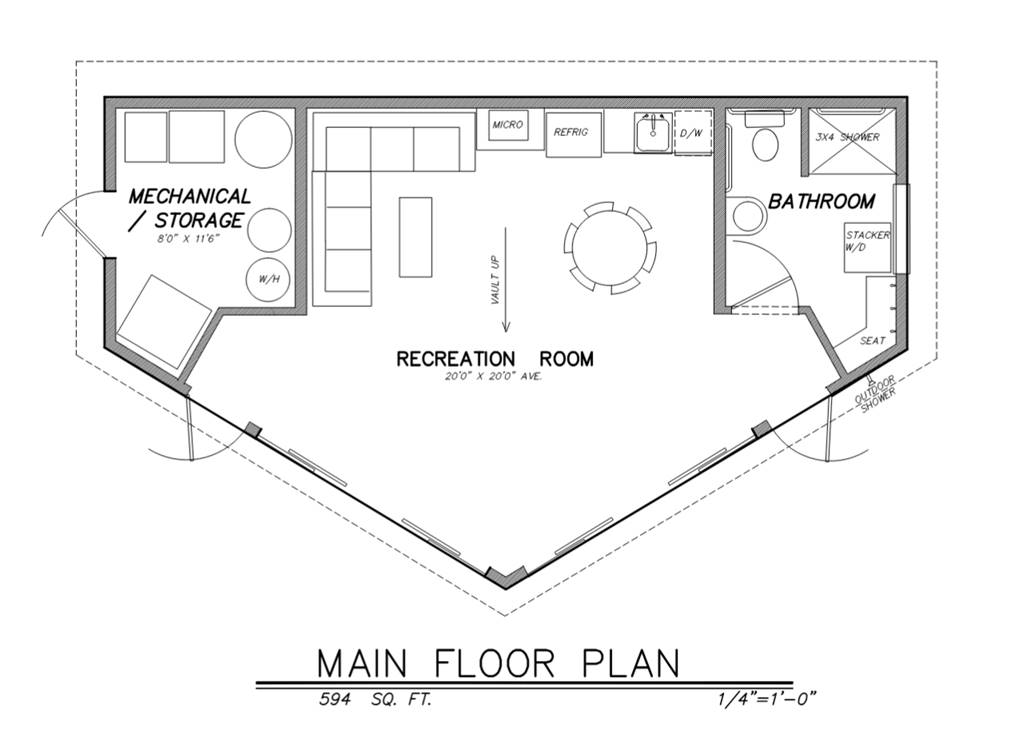

1st Floor
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 11765:

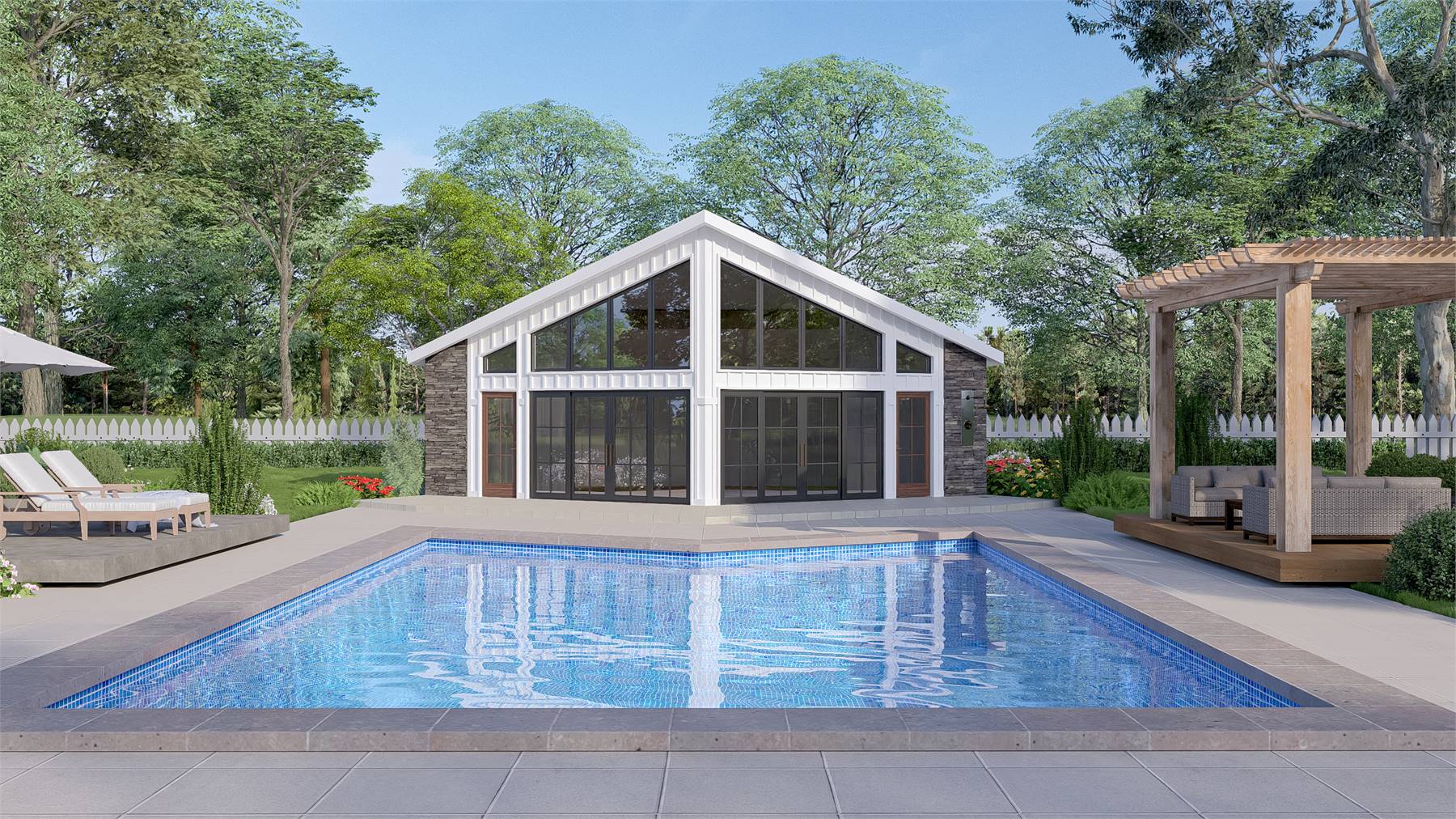

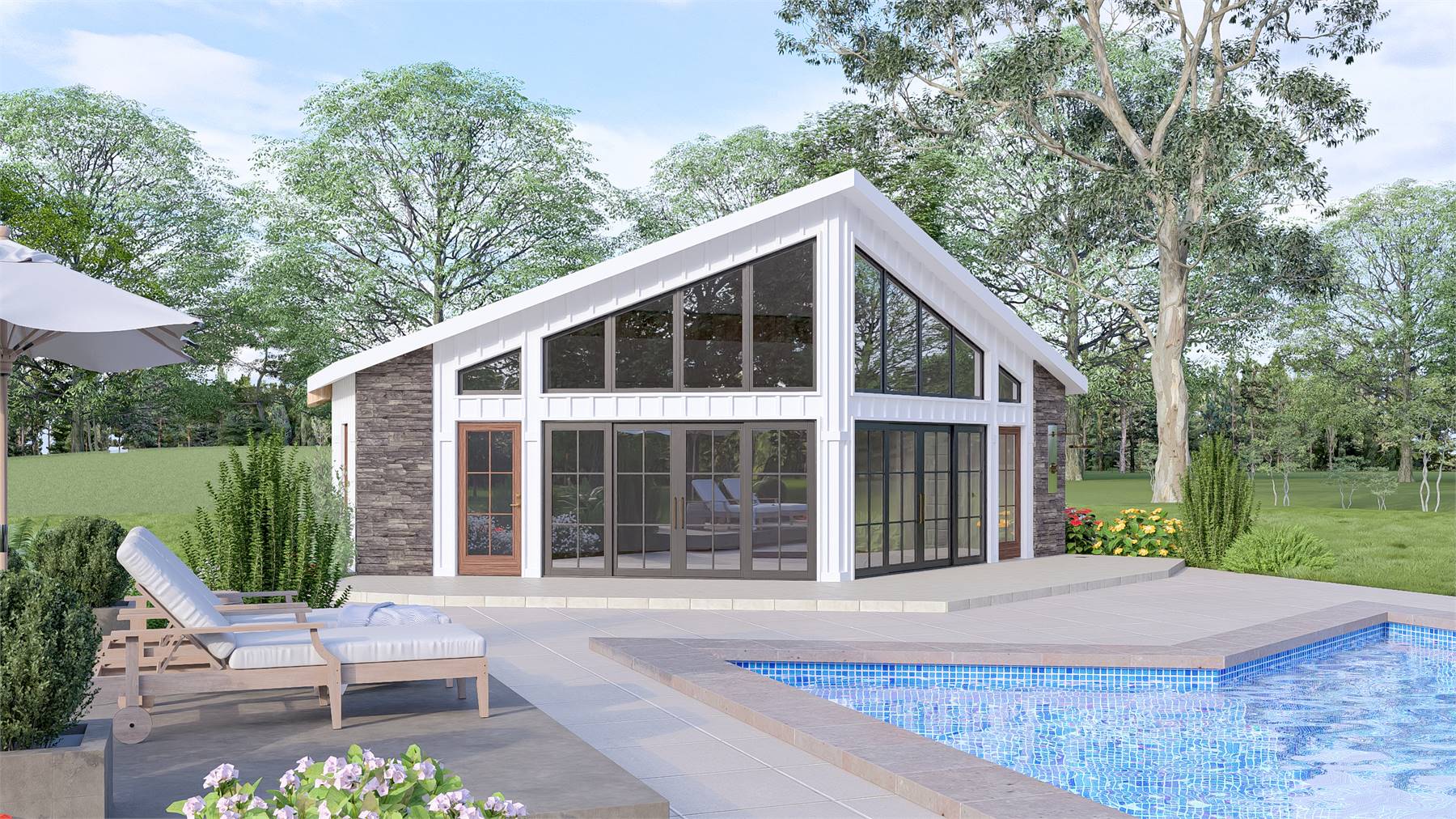

Plan 11765 is dramatic modern pool house design ready to expand your home's outdoor living space! It packs 594 square feet into a pentagon footprint, complete with vaulted rec space with a kitchenette and a full bath with laundry. Large patio doors allow you to open up the interior to the fresh air, and large windows promise ample daylighting on top of that. Don't miss the handy outdoor shower!
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $600
Immediate Delivery!
Most recommended package

5 Printed Sets + PDF

Includes 5 physical printed blueprint sets, shipped free via UPS within the U.S. Printed sets ship within 1 business day and are delivered within 3 – 5 business days. A complimentary PDF plan set is also emailed within 1 business day for easy sharing and local printing. These plans may be used to construct one home.

5 Printed Sets + PDF $870
5 Printed Sets + PDF

CAD + PDF Single Build

This plan package is created in AutoCAD and delivered in .DWG format. CAD files are intended for use by design professionals, structural engineers, and builders to update plans for local building codes or to make revisions based on specific needs, lot requirements, and budget considerations. A complimentary PDF copy is included with this package for reference. CAD packages are delivered within 1 to 2 business days.

This package also comes with a copyright release for making revisions and printing unlimited copies.

For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan page.

CAD + PDF Single Build $1,115
2D electronic editable computer files

CAD + PDF Unlimited Build

This plan package is created in AutoCAD and delivered in .DWG format. CAD files are intended for use by design professionals, structural engineers, and builders to update plans for local building codes or to make revisions based on specific needs, lot requirements, and budget considerations. A complimentary PDF copy is included with this package for reference. CAD packages are delivered within 1 to 2 business days.

This package also comes with a multi-use building license, granting permission to construct the home an unlimited number of times, along with a copyright release for making revisions and printing unlimited copies.

For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan page.

CAD + PDF Unlimited Build $1,473

States N/A: CADUNLIMITED+PDF
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal:
$600
FREE SHIPPING

Detailed Plan Packages & Pricing
Our Structural Detail & IRC Guarantee
Architect's Preferred Home Products
Plan Details
See All Details
Finished Square Footage
594 Sq. Ft.
Main Level:
594 Sq. Ft.
Total:
Room Details
1
Full Baths:
General House Information
1
Number of Stories:
36'
Width:
22'
Depth:
Pool
Dwelling Number:
Unfinished Square Footage
GARAGE
0
Garage Size:
Exterior Style
Contemporary
Modern
Collections
Exclusive
Home Addition
Open Floor Plan
Outdoor Living
Pool
Foundation
Slab
Framing Information
Stick
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
4/12
Primary:
3.75/12
Secondary:
Roof Load
20 PSF
Live:
10 PSF
Dead:
135 PSF/3 sec gust
Wind:
Insulation (R)
21
Exterior Wall:
38
Ceiling:
10
Floor:
House And Ceiling Heights
9
First Floor Ceiling:
17'
Maximum House Height:
Key Features
Laundry 1st Fl
None
Open Floor Plan
Rec Room
Storage Space
Vaulted Ceilings
Vaulted Great Room/Living
