House Plan: DFD-12402

Pin It
See All 70 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
3,482
BEDS
5
BATHS
4.5
STORIES
2
CARS
3
PLANS FROM $2,050
For questions and help, live chat, email or call us at 877-895-5299

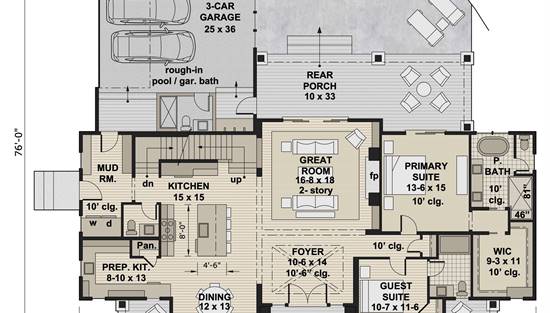

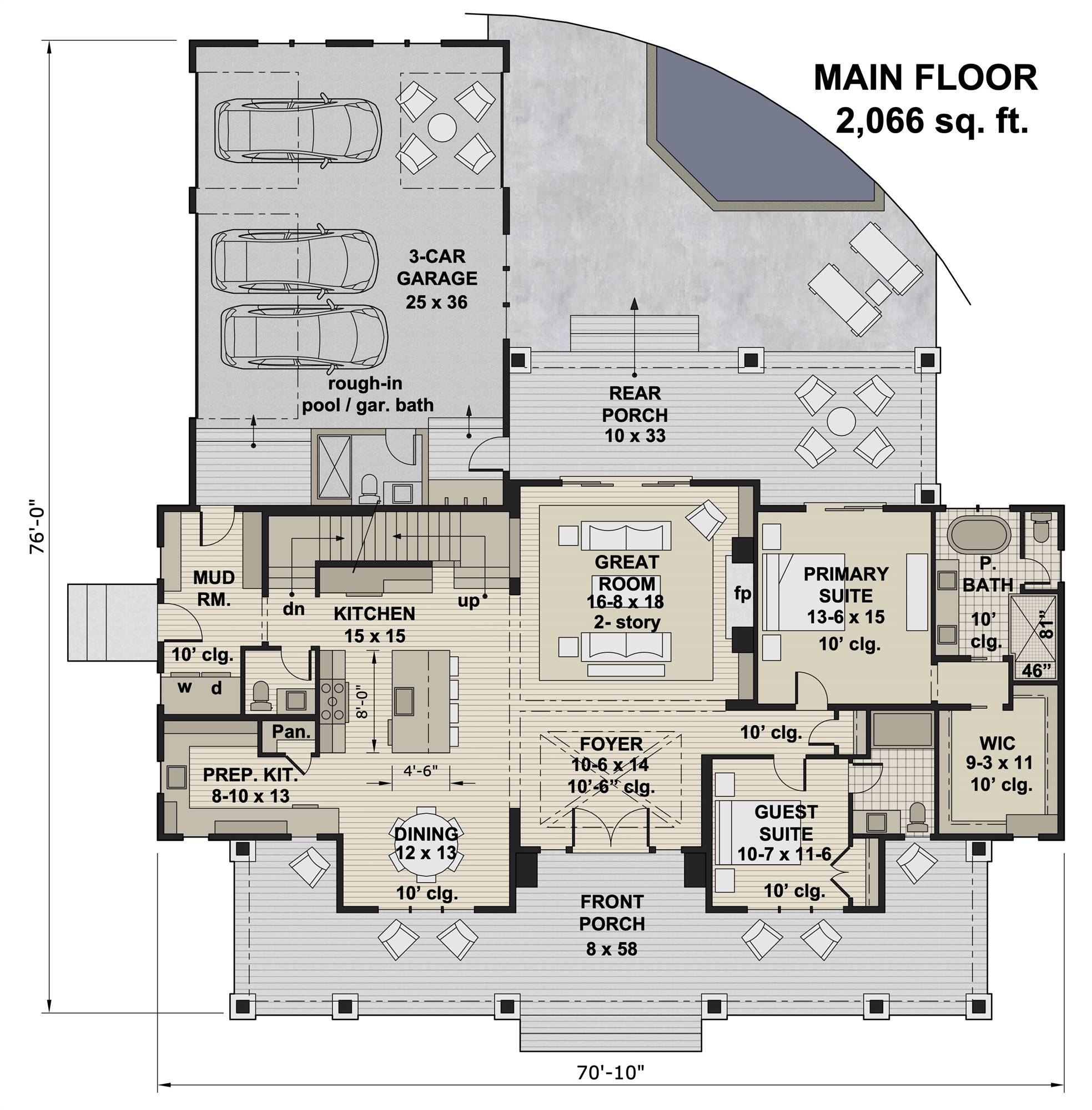

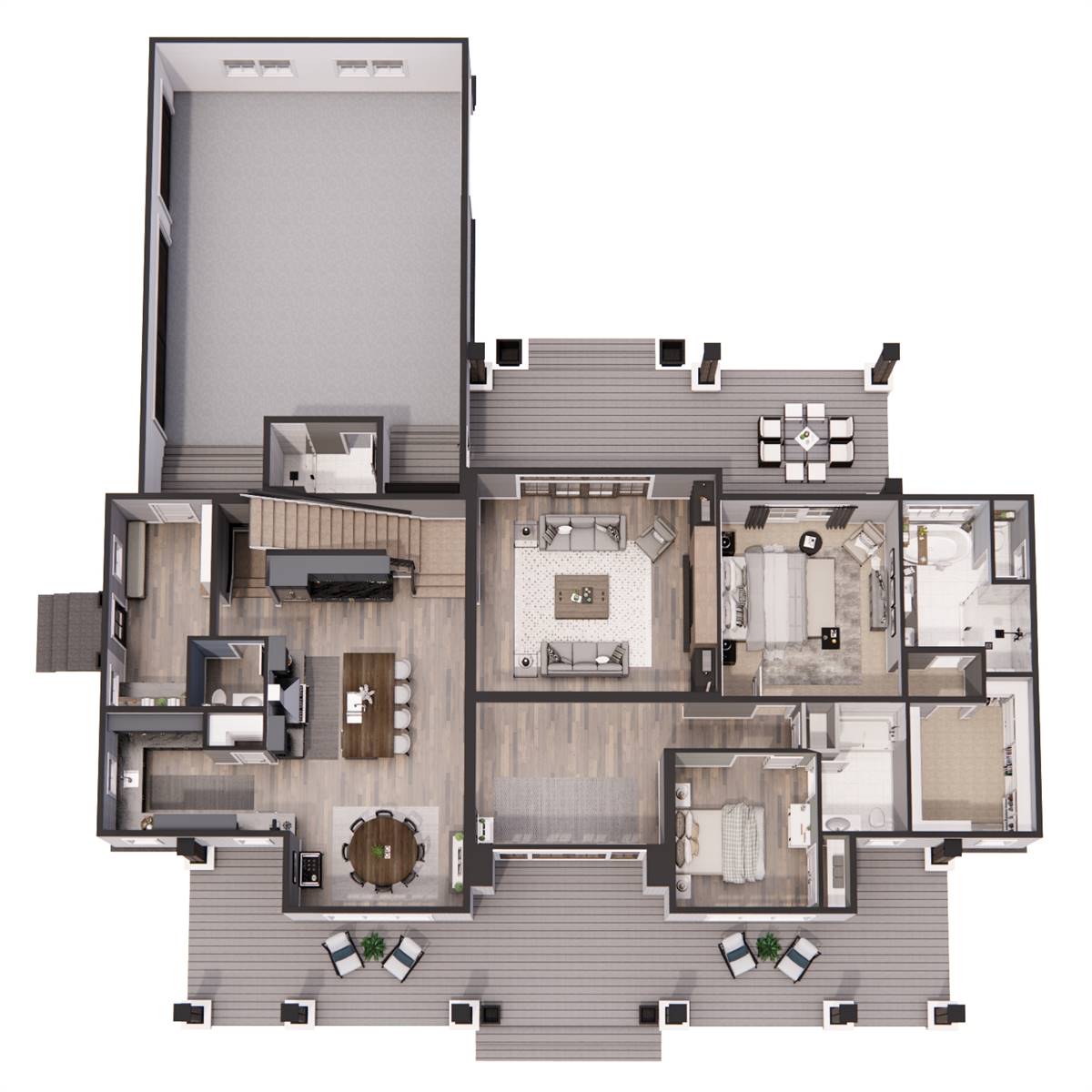

1st Floor

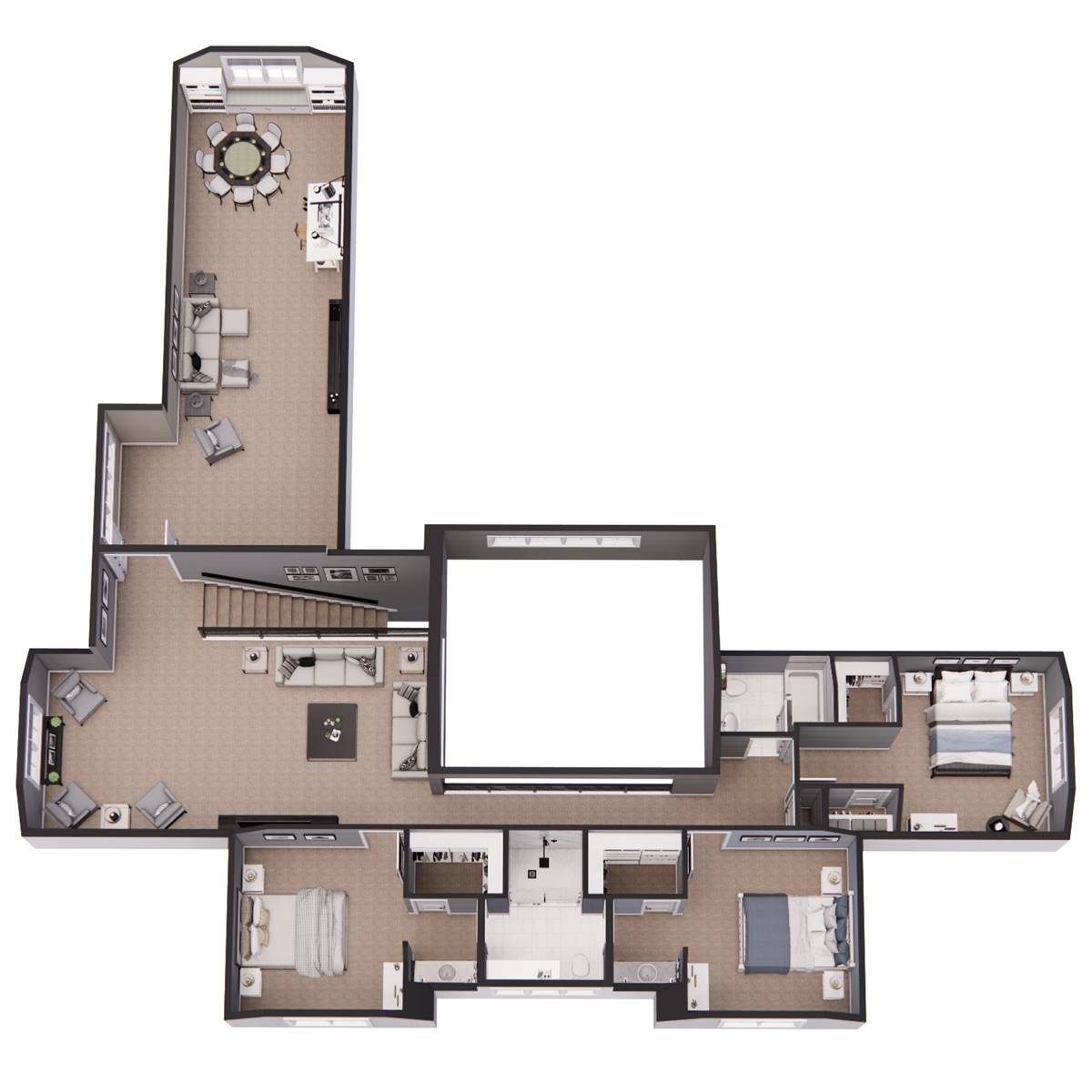

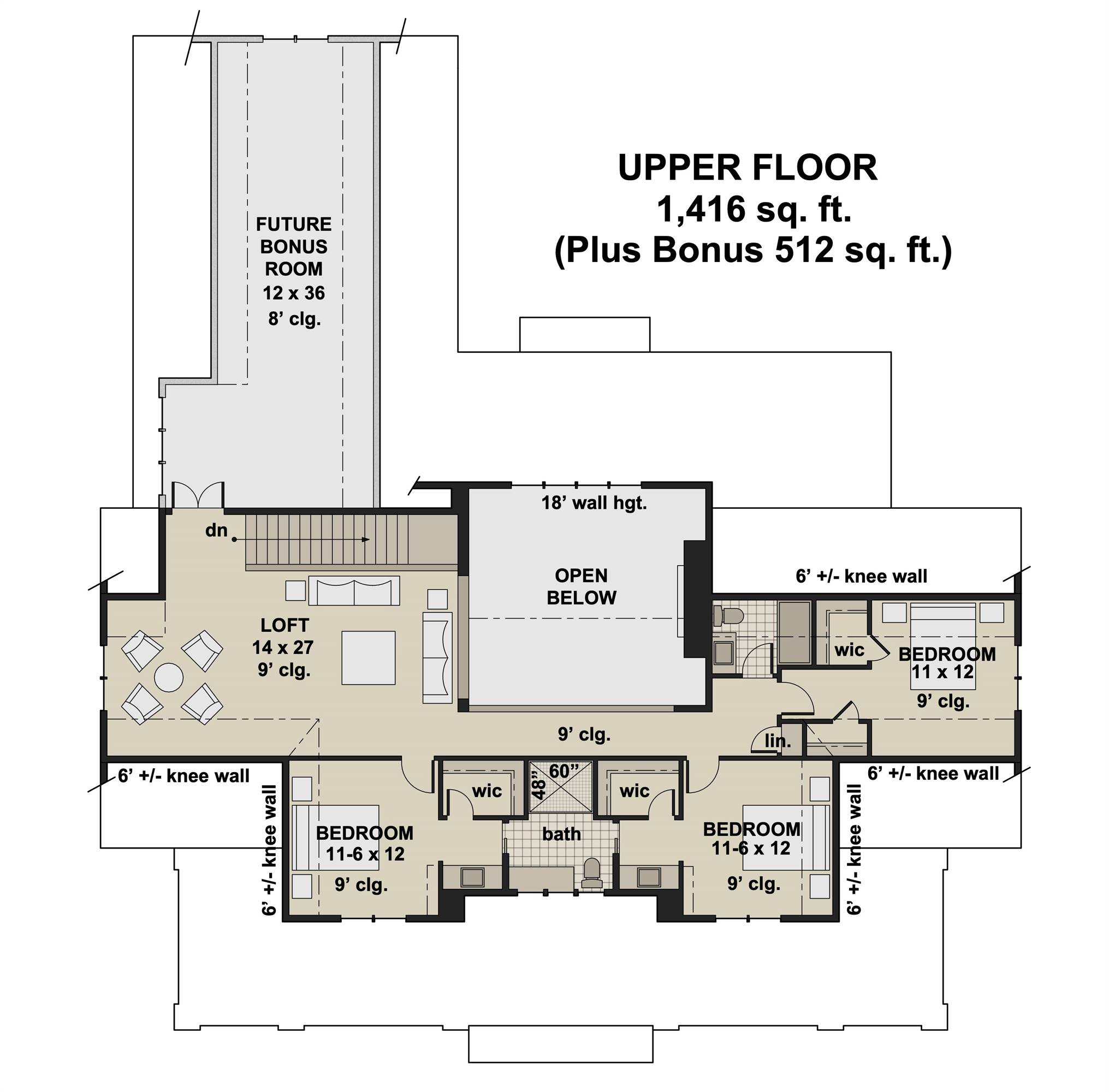

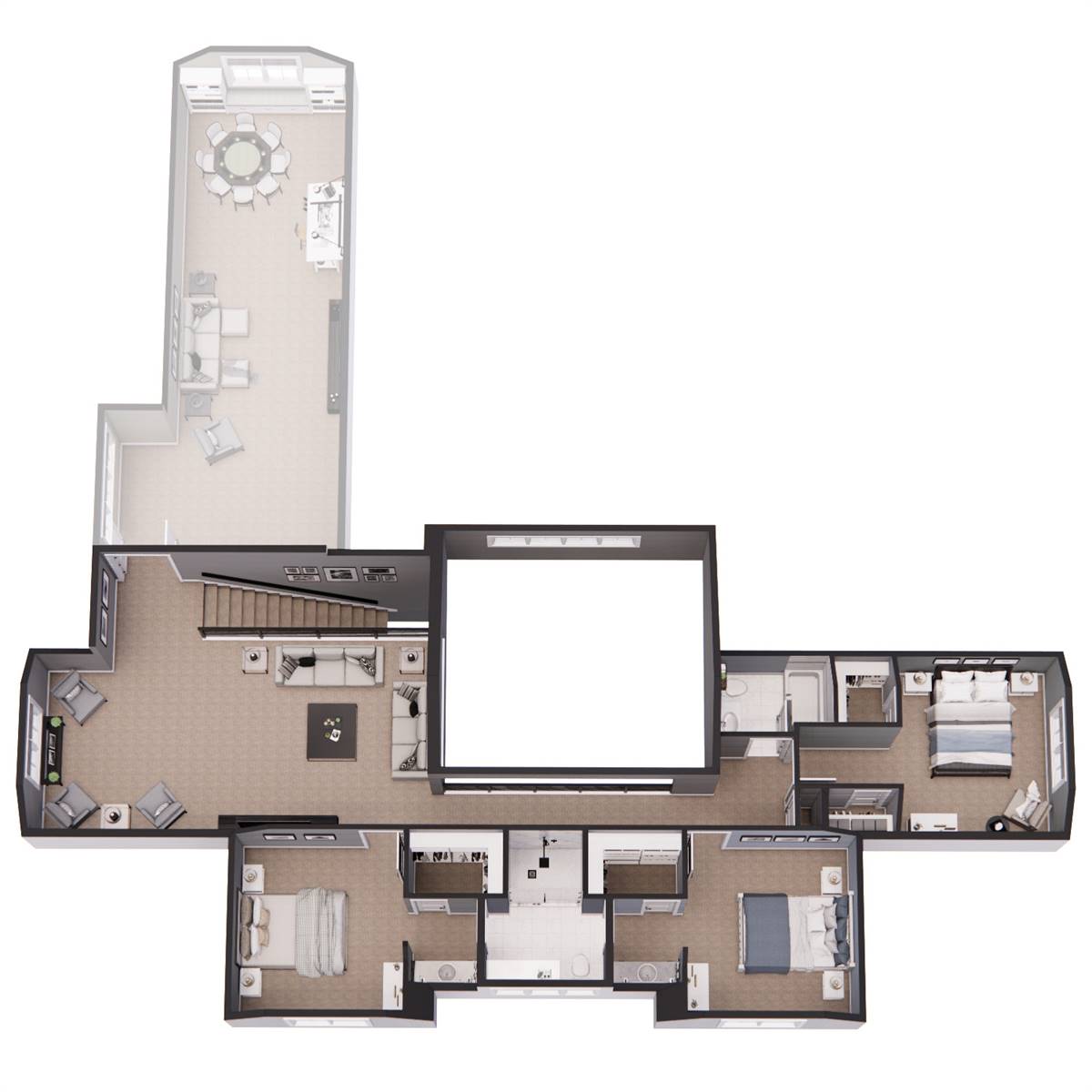

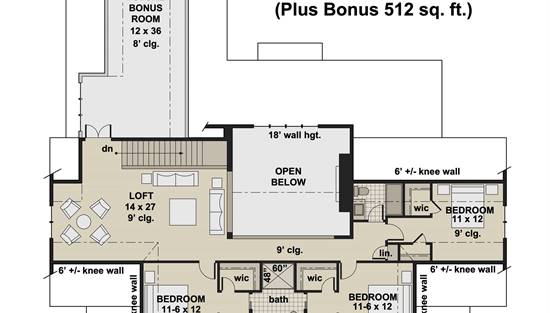

2nd Floor
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 12402:
With 3,482 square feet of heated living space, this 5 bedroom, 4.5 bathroom home blends expansive gathering areas with comfortable private spaces. The great room with fireplace flows into the open kitchen and breakfast nook, creating a natural hub for everyday living and entertaining. The kitchen includes a large island, peninsula eating bar, L-shaped layout, and pantry to provide both function and style. A main floor primary suite offers a relaxing retreat with a walk-in closet, double vanity sink, and separate tub and shower. A convenient guest suite on the main level gives visitors a comfortable place to stay. Upstairs, three bedrooms share access to a loft and an oversized bonus room that adds flexible living space for recreation or relaxation. A dedicated home office, mud room, and first-floor laundry enhance everyday convenience. Covered front and rear porches, outdoor living space, and a rear-entry oversized 3-car garage add the finishing touches to this spacious family home.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $2,050
Most recommended package

5 Printed Sets

Includes 5 physical printed blueprint sets, shipped free via UPS within the U.S. Printed sets ship within 1 business day and are delivered within 3 – 5 business days. These plans may be used to construct one home.

5 Printed Sets $2,250
Five printed sets of house plans

8 Printed Sets

Includes 8 physical printed blueprint sets, shipped free via UPS within the U.S. Printed sets ship within 1 business day and are delivered within 3 – 5 business days. These plans may be used to construct one home.

8 Printed Sets $2,350
Eight printed sets of house plans

5 Printed Sets + PDF

Includes 5 physical printed blueprint sets, shipped free via UPS within the U.S. Printed sets ship within 1 business day and are delivered within 3 – 5 business days. A complimentary PDF plan set is also emailed within 1 business day for easy sharing and local printing. These plans may be used to construct one home.

5 Printed Sets + PDF $2,350
5 Printed Sets + PDF

CAD + PDF Single Build

This plan package is created in AutoCAD and delivered in .DWG format. CAD files are intended for use by design professionals, structural engineers, and builders to update plans for local building codes or to make revisions based on specific needs, lot requirements, and budget considerations. A complimentary PDF copy is included with this package for reference. CAD packages are delivered within 1 to 2 business days.

This package also comes with a copyright release for making revisions and printing unlimited copies.

For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan page.

CAD + PDF Single Build $2,700
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal:
$2050
FREE SHIPPING

Detailed Plan Packages & Pricing
Our Structural Detail & IRC Guarantee
Architect's Preferred Home Products
Plan Details
See All Details
Finished Square Footage
2,066 Sq. Ft.
Main Level:
1,416 Sq. Ft.
Upper Level:
3,482 Sq. Ft.
Total:
Room Details
5
Bedrooms:
4
Full Baths:
1
Half Baths:
General House Information
2
Number of Stories:
70' 10"
Width:
76' 6"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Unfinished Square Footage
900 Sq. Ft.
Garage:
794 Sq. Ft.
Porch:
512 Sq. Ft.
Bonus Room:
GARAGE
Rear
Garage Location:
3
Garage Size:
Exterior Style
Country
Craftsman
Farmhouse
Modern Farmhouse
Collections
Builders
Kitchens
Luxury
Primary Suites
North Carolina
Open Floor Plan
Outdoor Living
Split Bedroom
Tennessee
Texas
Foundation
Basement foundation
Crawl Space
Daylight Basement
Slab Foundation
Walkout Basement
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
12/12
Primary:
Insulation (R)
House And Ceiling Heights
10
First Floor Ceiling:
9
Second Floor Ceiling:
33' 5"
Maximum House Height:
Key Features
Attached
Bonus Room
Covered Front Porch
Covered Rear Porch
Double Vanity Sink
Fireplace
Foyer
Great Room
Guest Suite
Home Office
Kitchen Island
Laundry 1st Fl
Loft / Balcony
L-Shaped
Primary Bdrm Main Floor
Mud Room
Nook / Breakfast Area
Open Floor Plan
Outdoor Living Space
Oversized
Pantry
Peninsula / Eating Bar
Separate Tub and Shower
Side-entry
Split Bedrooms
Suited for corner lot
Walk-in Closet
