House Plan: DFD-3204

See All 5 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
825
BEDS
1
BATHS
1
STORIES
2
CARS
5
PLANS FROM $1,300
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 3204:

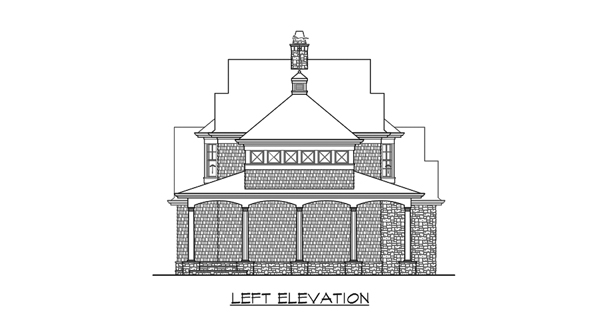

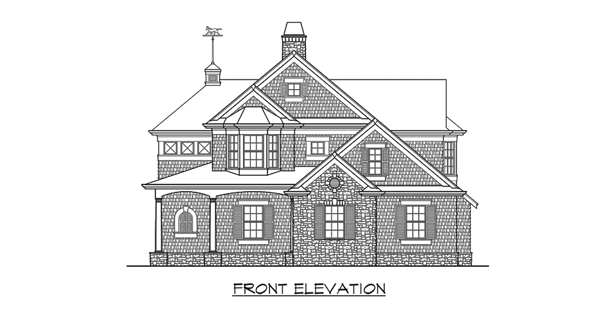

This Astoria Cottage is the matching playhouse or guesthouse and overflow garage for our popular Astoria plan. A window-lined entry stair tower that leads to an open living/gaming space with a kitchen, laundry, bathroom and private bedroom flanks the oversize five-car tandem garage. The facade has all the charm of the Astoria with its arched wraparound porch, stone and shingle siding and elegant trim.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,300
Most recommended package

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $2,400
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1300
FREE SHIPPING
IMPORTANT NOTE: Due to state regulations, this home is not available for purchase in the State of Washington. Contact us for more information.

Note: This plan cannot be purchased for construction in Washington State.

Plan Details
See All Details
Finished Square Footage
130 Sq. Ft.
Main Level:
695 Sq. Ft.
Upper Level:
825 Sq. Ft.
Total:
Room Details
1
Bedrooms:
1
Full Baths:
General House Information
2
Number of Stories:
47' 0"
Width:
38' 0"
Depth:
Garage
Dwelling Number:
Unfinished Square Footage
1215 Sq. Ft.
Garage:
GARAGE
Rear
Garage Location:
5
Garage Size:
Exterior Style
Cottage
Farmhouse
Victorian
Collections
ADU
Old House Classics
Open Floor Plan
Vacation
Foundation
Slab
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
10
Primary:
4
Secondary:
Roof Load
25
Live:
15
Dead:
85
Wind:
Insulation (R)
21
Exterior Wall:
0
Interior Wall:
38
Ceiling:
30
Floor:
House And Ceiling Heights
8
First Floor Ceiling:
10
Second Floor Ceiling:
32' 0"
Maximum House Height:
Key Features
Covered Front Porch
Fireplace
Open Floor Plan
Peninsula / Eating Bar
Slab
Storage Space
Tandem
With Living Space
Workshop
