House Plan: 3765

Plan Specification
Total Square Footage: 1,267
Main Level: 924
Second Level: 343
Bedrooms: 3
Baths: 2 Half: 0
Garages: 0
Width/Depth: 40 ft / 38 ft
Foundation: Basement, Crawl Space, Slab Foundation
Pin It
View typical construction drawings by this designer >
© copyright by designer
First Floor Plan:
First Floor Plan
Need to make changes?
Call for a free modification quote
877-895-5299 or LIVE CHAT NOW
or use this quote form
© copyright by designer
Second Floor Plan:
Second Floor Plan
Similar plans: 3824, 3874, 3869, 3813
More plans by this designer/architect
Add to Favorites
Purchase Plans

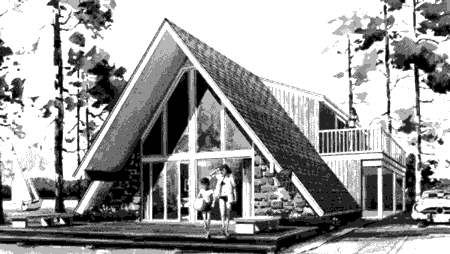

PLAN DESCRIPTION This stylish A-frame has perfect outdoor complements including two side porches, one of which is screened, a second floor deck off the second floor bedroom and an optional front deck. Interior highlights include a 24' living room with a corner stone fireplace, cathedral ceiling and two sets of sliding glass doors. An attractive circular stairway leads to the second level balcony which overlooks this high-activity area. The kitchen offers direct access to the attached porch with built-in stone barbecue for outdoor dining.
Get Your House Plans In Minutes!
NEW PDFs NOW!™ Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
NOW THRU 6/25: SAVE 10% ON ALL HOUSE PLANS! see details
House Plan Pricing
PDFs NOW!™ $595.00
PDFs NOW!™ $795.00
$825.00
$900.00
$925.00
More details about our plan packages
Foundation Options
PDFs NOW!™ available $0.00
PDFs NOW!™ available $0.00
PDFs NOW!™ available $100.00
Additional Plan Options
$175.00
$250.00
$50.00
$85.00
$50.00
$150.00
Best Price Guarantee, learn more

Live Chat  |  Email
Key Features
• Deck
• Fireplace
• Grand Room
• Great Room
• Laundry 1st Fl
• Loft / Balcony
• Master Bdrm Upstairs
• Master Bedroom Up
• None
• Peninsula / Eating Bar
• Screened Porch/Sunroom
• Storage Space
• Suited for narrow lot
• Vaulted Ceilings
• Walk-in Closet
Plan Details
General House Information
2
Number of Stories:
40' 8"
Width:
38' 10"
Depth:
Single
Dwelling Number:
Exterior Style
Contemporary
Lake
Modern
Facade
Owner's Choice
OwnersChoice
Number of Rooms
3
Bedrooms:
2
Full Baths:
Finished Square Footage
924 Sq. Ft.
Main Level:
343 Sq. Ft.
Upper Level:
1,267 Sq. Ft.
Total:
Unfinished Square Footage
215 Sq. Ft.
Porch:
128 Sq. Ft.
Deck:
GARAGE
0
Garage Size:
Foundation
Basement
Crawl Space
Slab Foundation
House And Ceiling Heights
8'-1"
First Floor Ceiling:
8'-1"
Second Floor Ceiling:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
12/12
Primary:
Roof Load
20
Live:
15
Dead:
Insulation (R)
13
Exterior Wall:
0
Interior Wall:
30
Ceiling:
19
Floor:
Number of Rooms
3
Bedrooms:
2
Full Baths:
