House Plan: 4838

Plan Specification
Total Square Footage: 2,267
Main Level: 2,267
Bonus: 439
Bedrooms: 3
Baths: 3 Half: 0
Garages: 2
Width/Depth: 72 ft / 64 ft
Foundation: Basement, Crawl Space, Slab, Walk-out Basement
Pin It
View typical construction drawings by this designer >
© copyright by designer
First Floor Plan:
First Floor Plan
Need to make changes?
Call for a free modification quote
877-895-5299 or LIVE CHAT NOW
or use this quote form
© copyright by designer
Second Floor Plan:
Second Floor Plan
Similar plans: 5775
More plans by this designer/architect
ShareThis
Add to Favorites
Purchase Plans

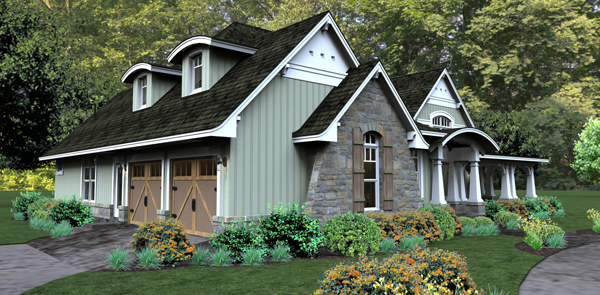

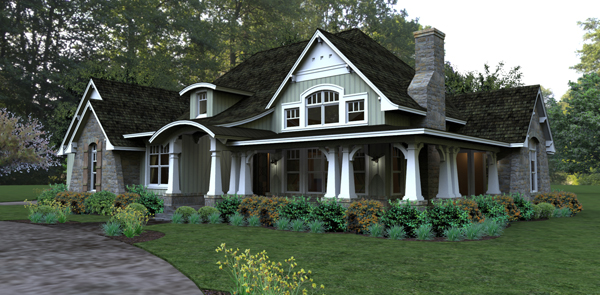

PLAN DESCRIPTION Friends and family will compliment you on this charming country cottage. A wraparound porch and a lanai with barbecue area and fireplace make this a great home for enjoying the outdoors.

The master suite has plenty of natural light, views and porch access. Secondary bedrooms each have direct access to a bath, as well as a walk-in-closet.

Kitchen and dining areas are oriented to the rear for enjoying outdoor spaces. The family room is large and makes a great place to watch the game.

Utility areas abound with large pantry, workshop area and a sink in the laundry area.

A bonus area over the garage makes a great media room.
Get Your House Plans In Minutes!
NEW PDFs Now!™ Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
House Plan Pricing
PDFs Now!™ $795.00
$995.00
$1,145.00
PDFs Now!™ $1,245.00
$1,245.00
$1,995.00
More details about our plan packages
Foundation Options
PDFs Now!™ available $0.00
PDFs Now!™ available $200.00
PDFs Now!™ available $300.00
PDFs Now!™ available $300.00
Additional Plan Options
$2,225.00
$150.00
$200.00
$50.00
Best Price Guarantee, learn more

Live Chat  |  Email
Key Features
• Attached
• Basement
• Bonus Room
• Covered Front Porch
• Covered Rear Porch
• Crawlspace
• Double Vanity Sink
• Family Room
• Fireplace
• Foyer
• Front Porch
• Home Office
• Kitchen Island
• Laundry 1st Fl
• Master Bdrm Main Floor
• Nook / Breakfast Area
• Peninsula / Eating Bar
• Rear Porch
• Separate Tub and Shower
• Side-entry
• Slab
• Split Bedrooms
• Storage Space
• Suited for corner lot
• Suited for sloping lot
• Suited for view lot
• Unfinished Space
• Vaulted Ceilings
• Walk-in Closet
• Walk-in Pantry
• Workshop
• Wraparound Porch
Plan Details
General House Information
2
Number of Stories:
72' 1"
Width:
64' 1"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Exterior Style
Bungalow
Cottage
Country
Number of Rooms
3
Bedrooms:
3
Full Baths:
Finished Square Footage
2,267 Sq. Ft.
Main Level:
2,267 Sq. Ft.
Total:
Unfinished Square Footage
586 Sq. Ft.
Garage:
998 Sq. Ft.
Porch:
439 Sq. Ft.
Bonus Room:
GARAGE
Side
Garage Location:
2
Garage Size:
Foundation
Basement
Crawl Space
Slab
Walk-out Basement
House And Ceiling Heights
10
First Floor Ceiling:
8
Second Floor Ceiling:
30' 6"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
12/12
Primary:
2:12
Secondary:
Roof Load
20
Live:
15
Dead:
20
Wind:
Insulation (R)
15
Exterior Wall:
13
Interior Wall:
30
Ceiling:
0
Floor:
Number of Rooms
3
Bedrooms:
3
Full Baths:
