House Plan: DFD-5016

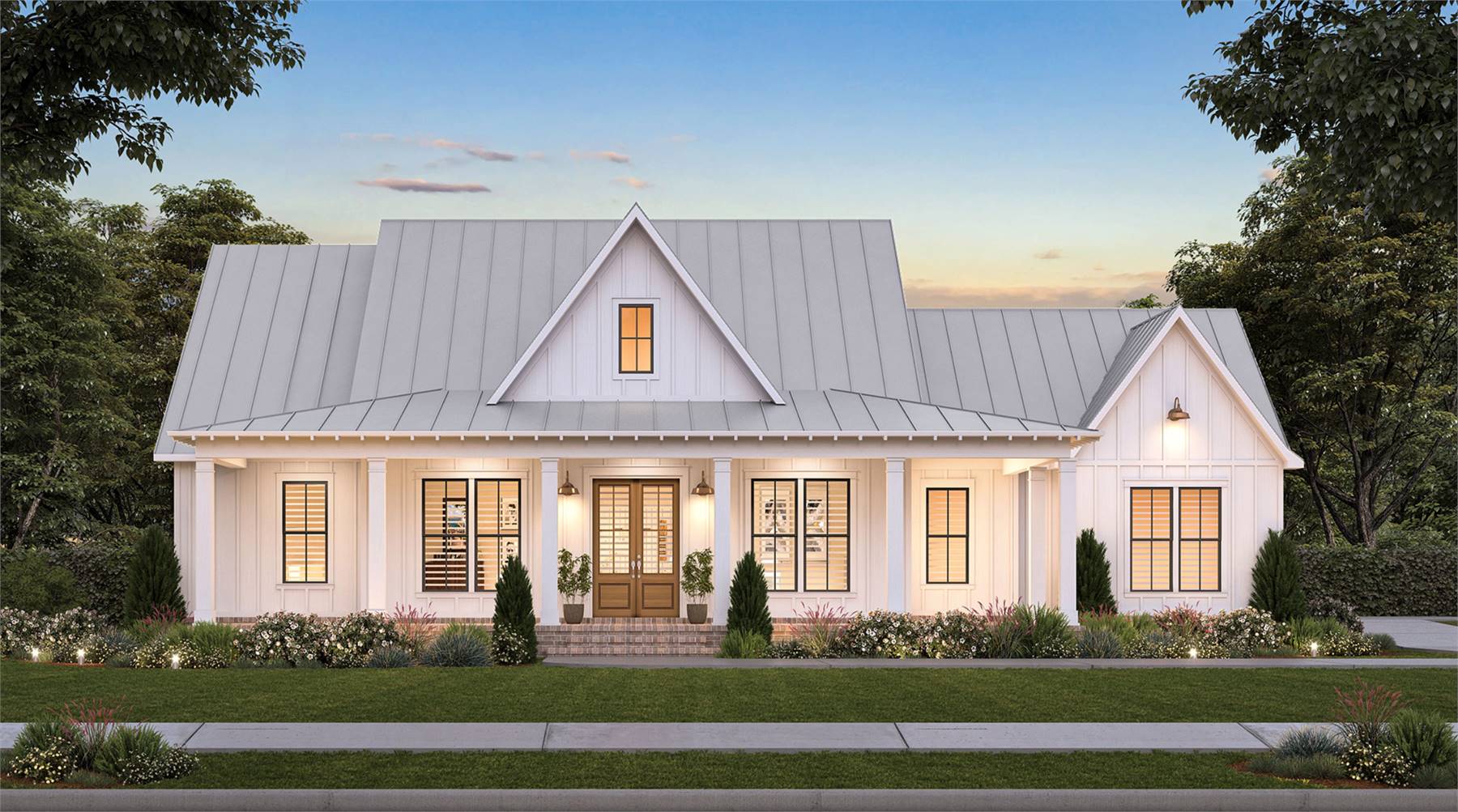

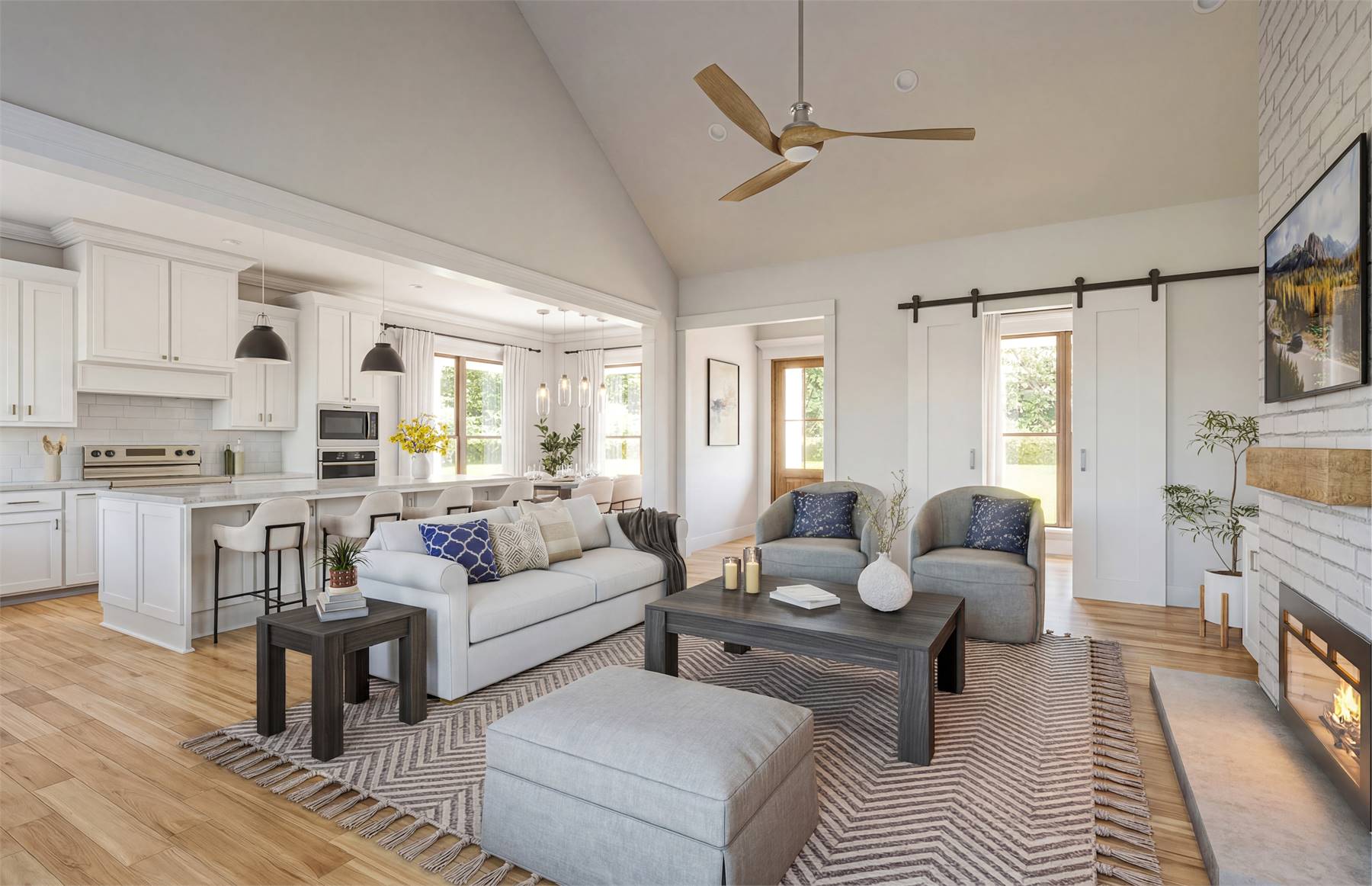

See All 4 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
2,085
BEDS
3
BATHS
2.5
STORIES
1
CARS
2
HOUSE PLANS SALE
START AT  $1,058.25
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

House Plan 5016
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,245
Most recommended package

PDF Unlimited Build


Digital plans with an unlimited build license emailed in PDF format, that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators and more

PDF Unlimited Build $1,945
Digital plans including unlimited build license

CAD Unlimited Build


2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

CAD Unlimited Build $2,745
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1245
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
2,085 Sq. Ft.
Main Level:
2,085 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
1
Number of Stories:
67' 10"
Width:
74' 7"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
600 Sq. Ft.
Garage:
881 Sq. Ft.
Porch:
GARAGE
Rear
Garage Location:
2
Garage Size:
Exterior Style
Country
Farmhouse
Modern Farmhouse
Ranch
Collections
Canada
First Home
Kitchens
Master Suites
North Carolina
Open Floor Plan
Outdoor Living
Split Bedroom
Tennessee
Texas
Foundation
Basement Foundation
Crawl Space
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
9/12
Primary:
12/12
Secondary:
Insulation (R)
House And Ceiling Heights
10
First Floor Ceiling:
25' 12"
Maximum House Height:
Key Features
Attached
Covered Rear Porch
Dining Room
Double Vanity Sink
Great Room
Home Office
Kitchen Island
Laundry 1st Fl
L-Shaped
Master Bdrm Main Floor
Mud Room
Open Floor Plan
Pantry
Peninsula / Eating Bar
Rear-entry
Separate Tub and Shower
Split Bedrooms
Vaulted Great Room/Living
Vaulted Master
Walk-in Closet
Wraparound Porch
