House Plan: DFD-5516

See All 120 Photos > (photographs may reflect modified homes)
© copyright by architect
SQ FT
4,164
BEDS
4
BATHS
4
STORIES
1.5
CARS
3
HOUSE PLANS SALE
START AT  $1,276.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5516:

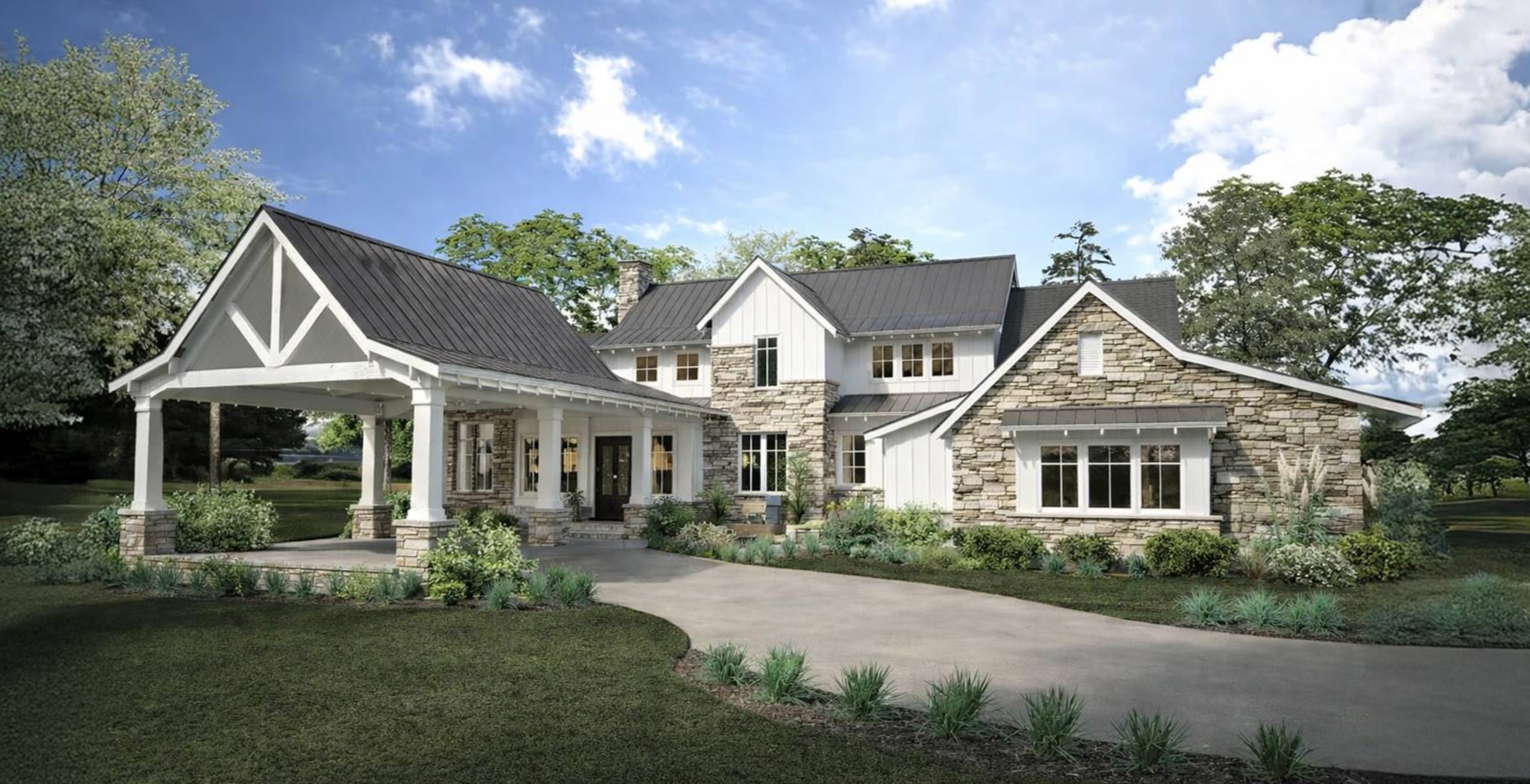

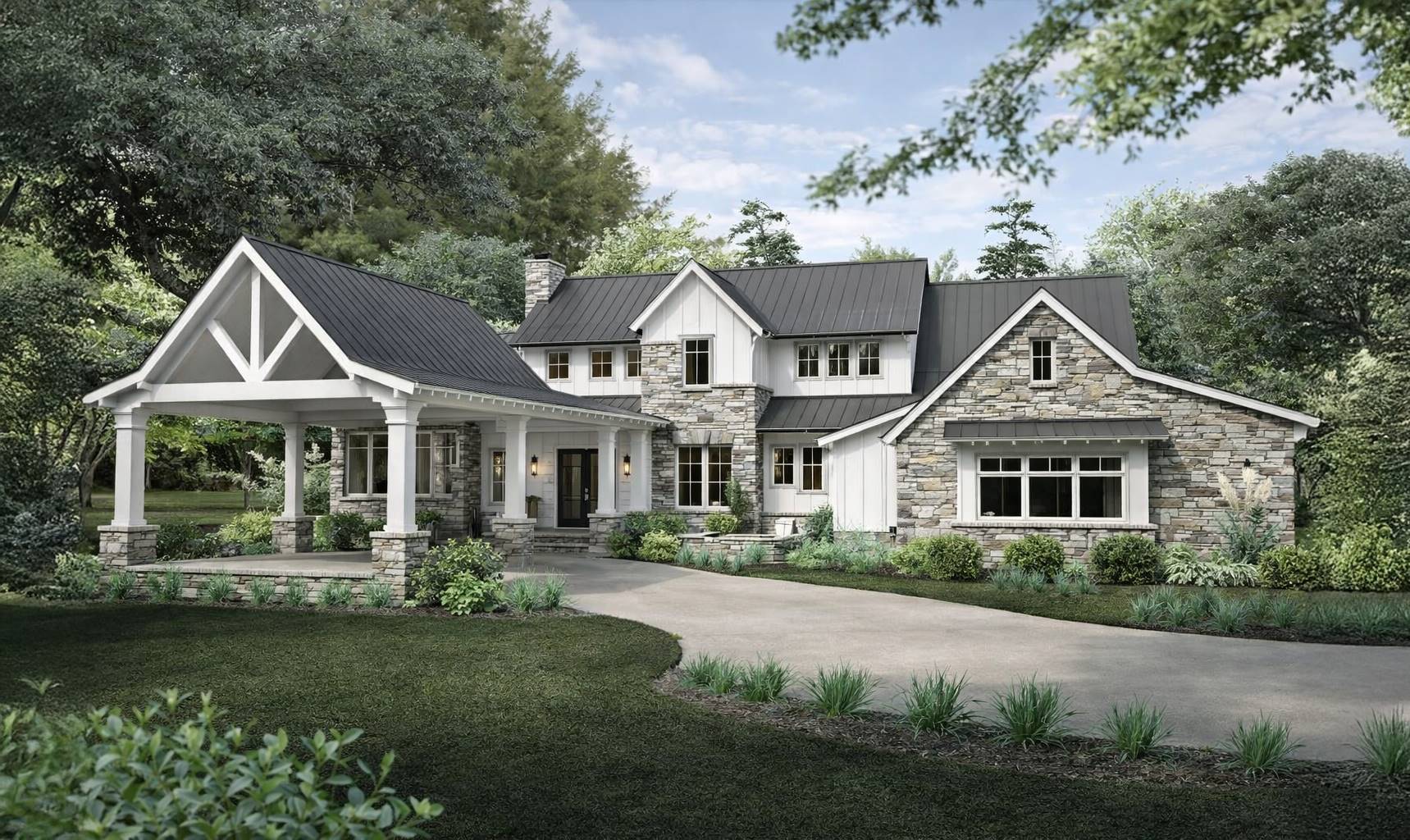

A practical carport is highlighted by an inviting courtyard with fire pit and water feature.

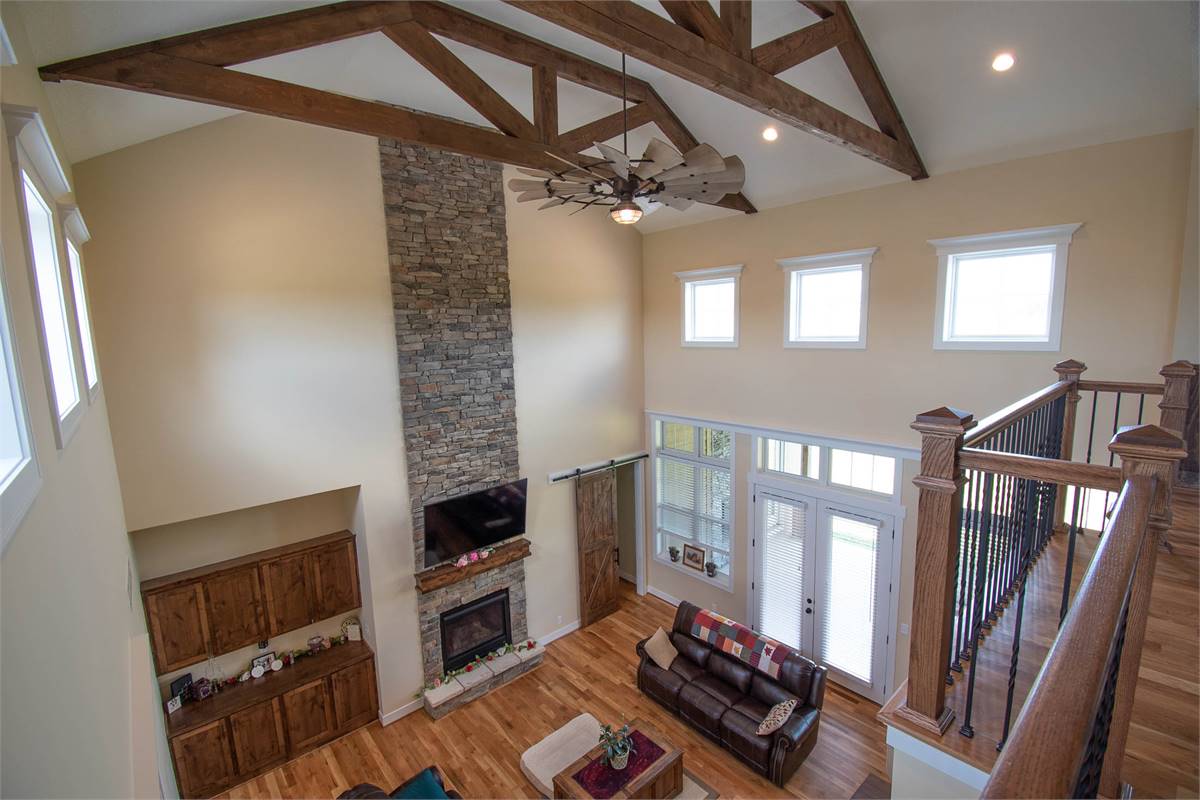

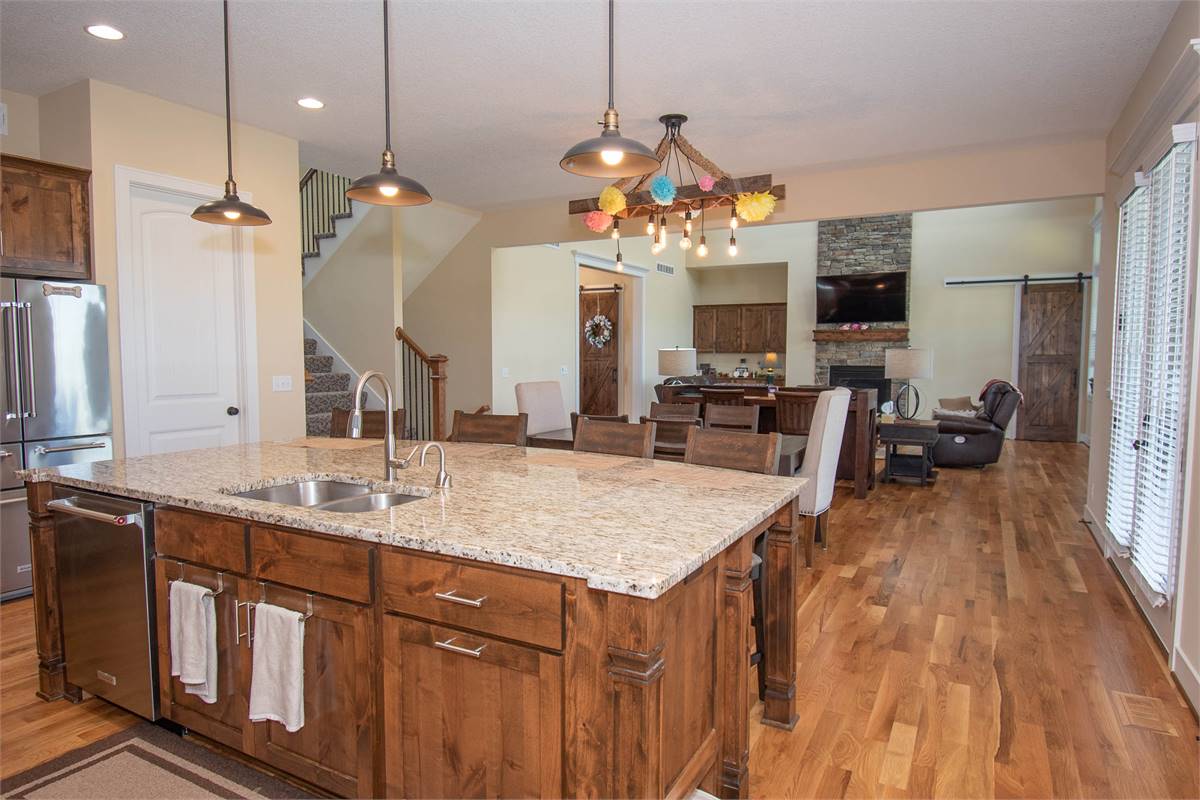

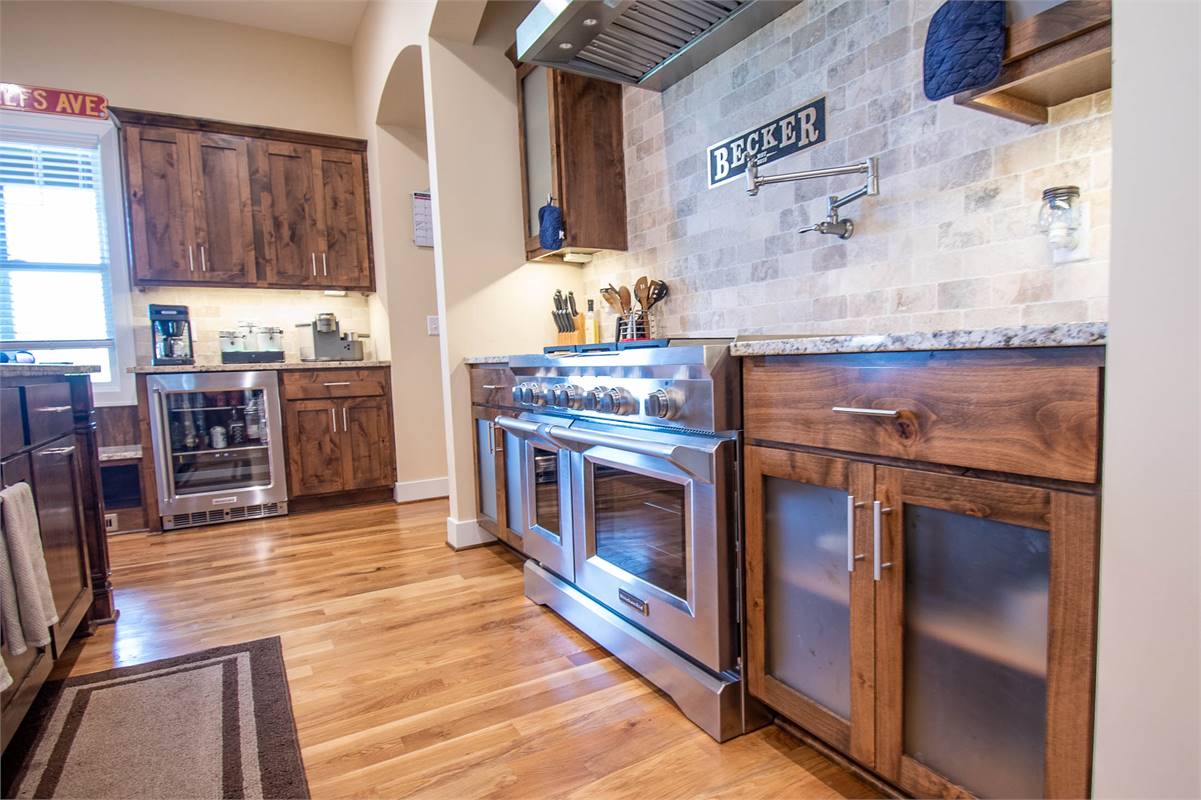

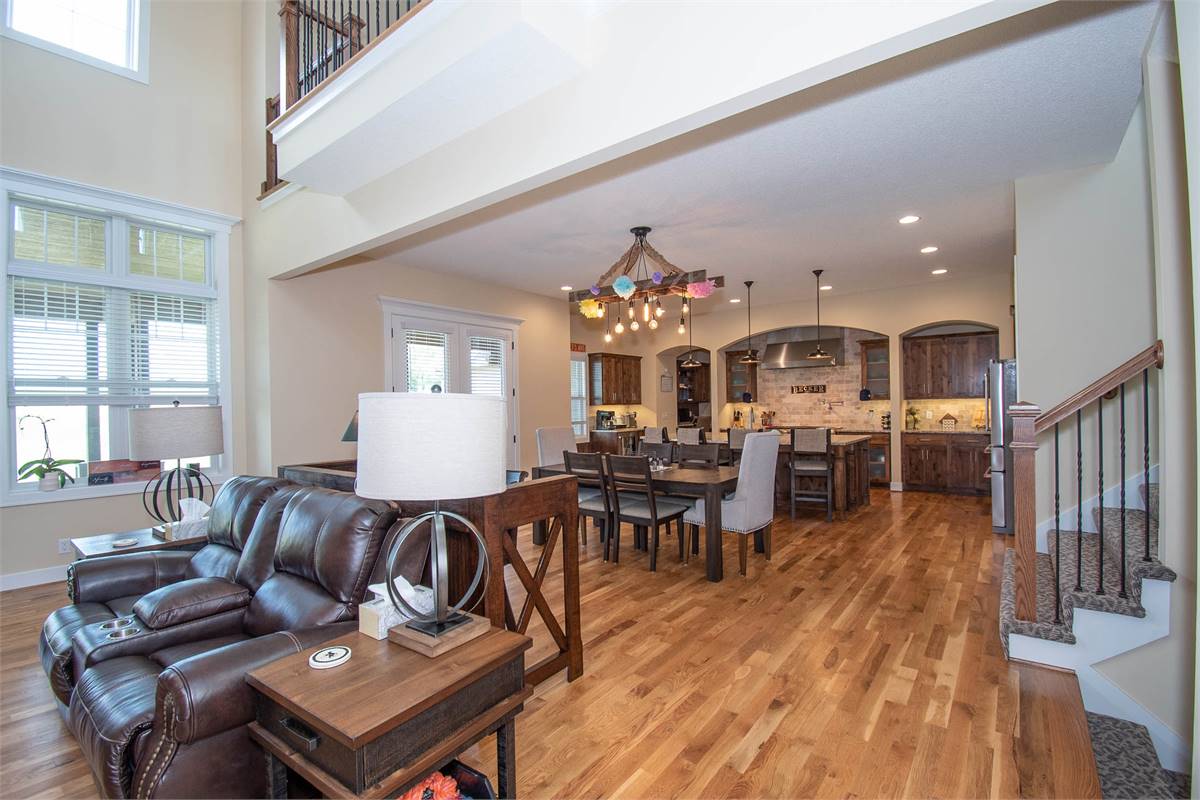

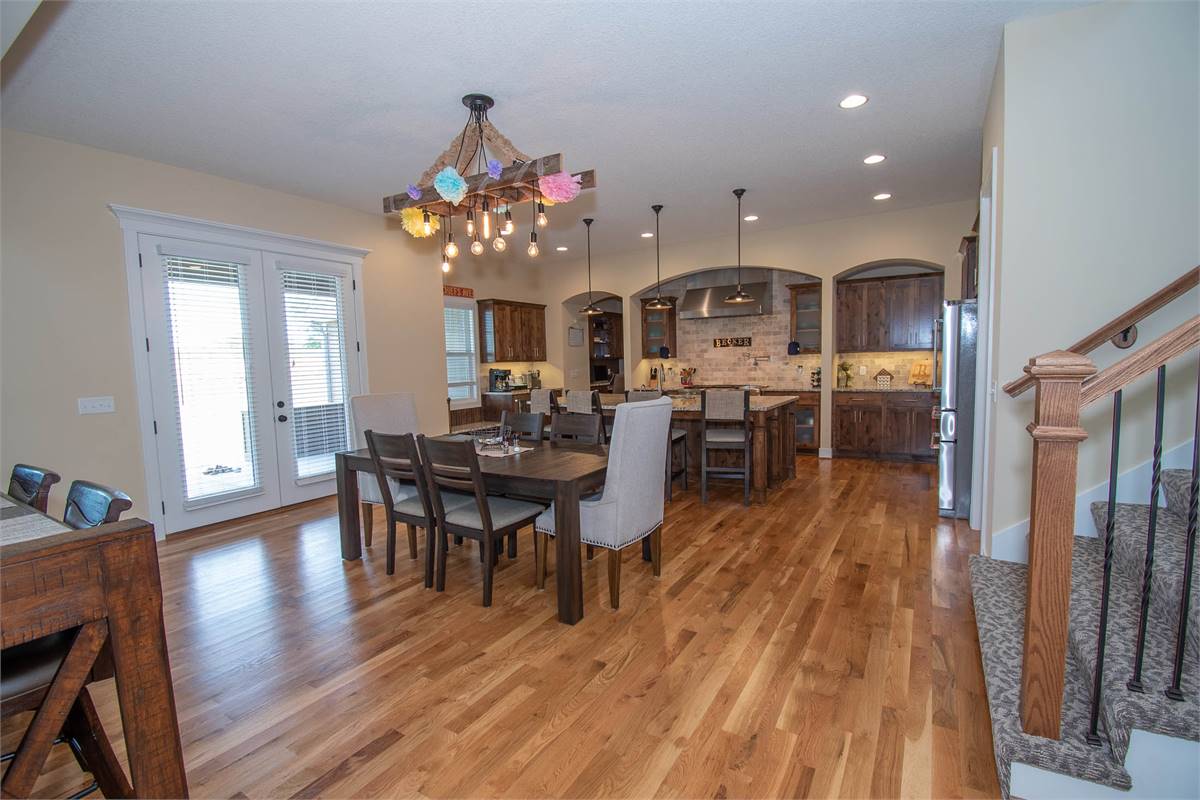

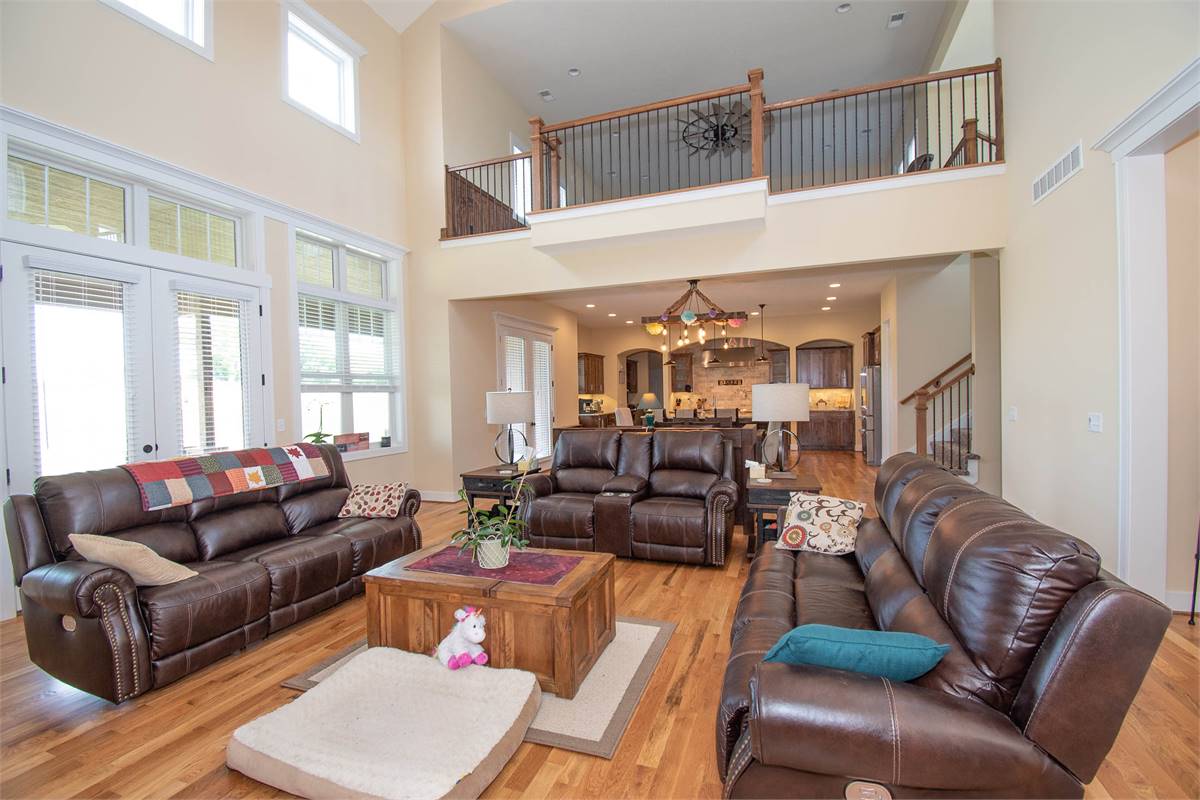

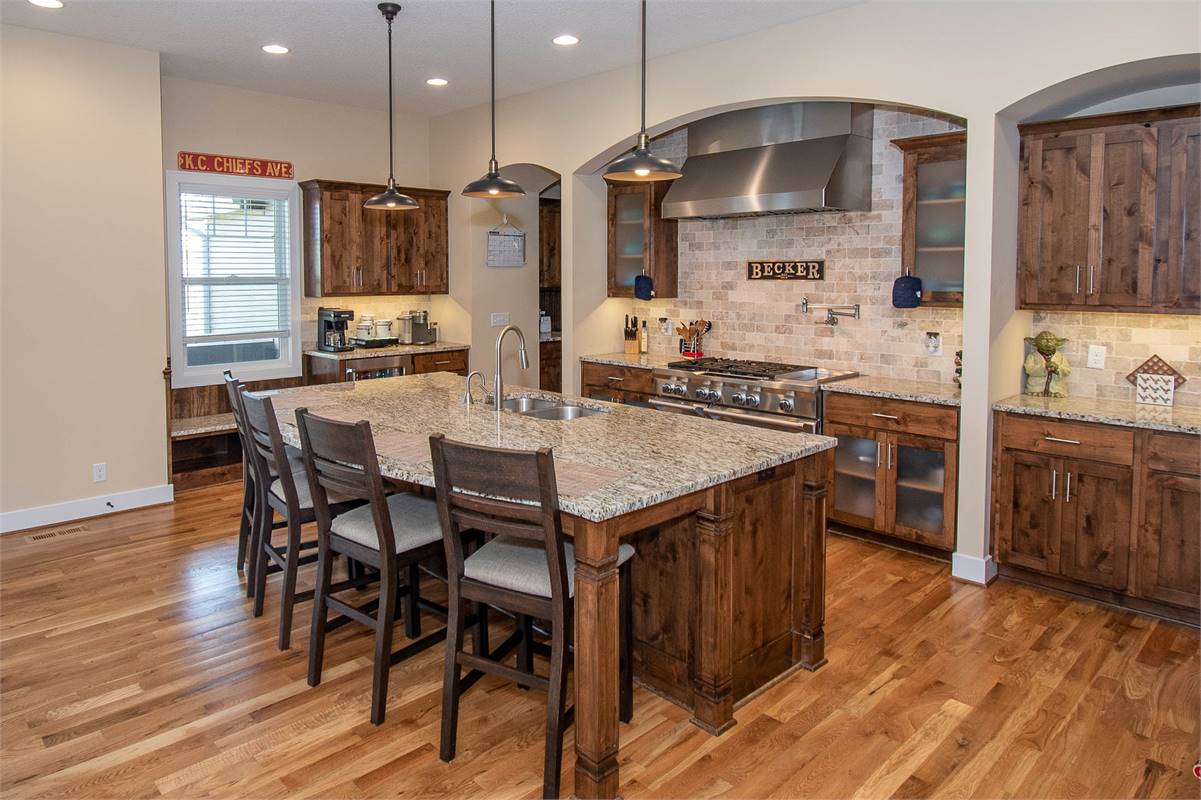

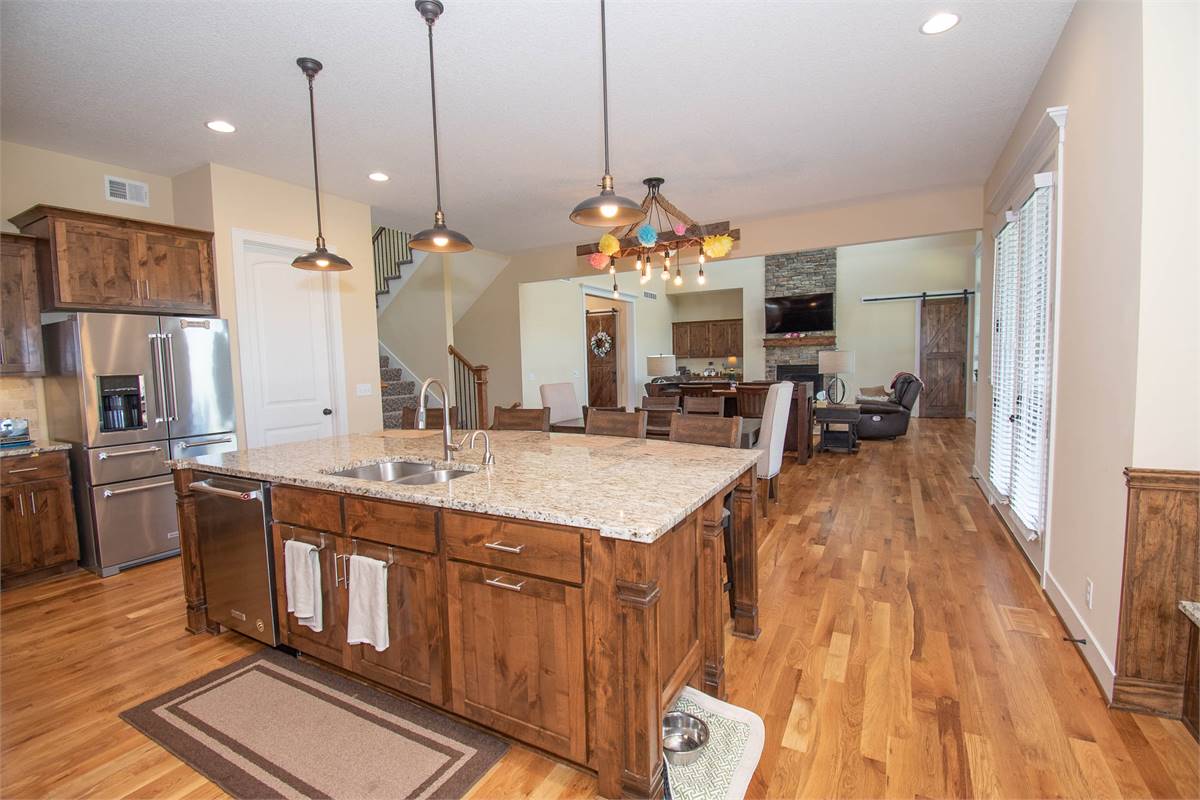

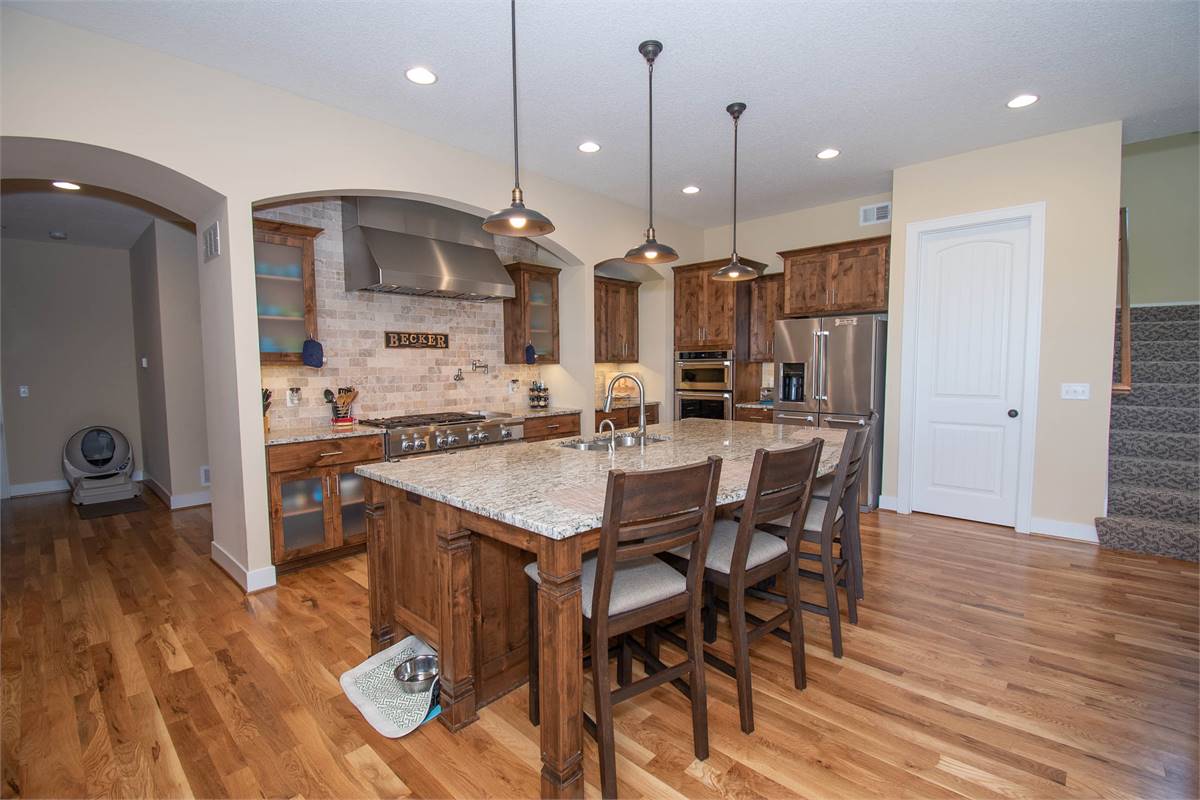

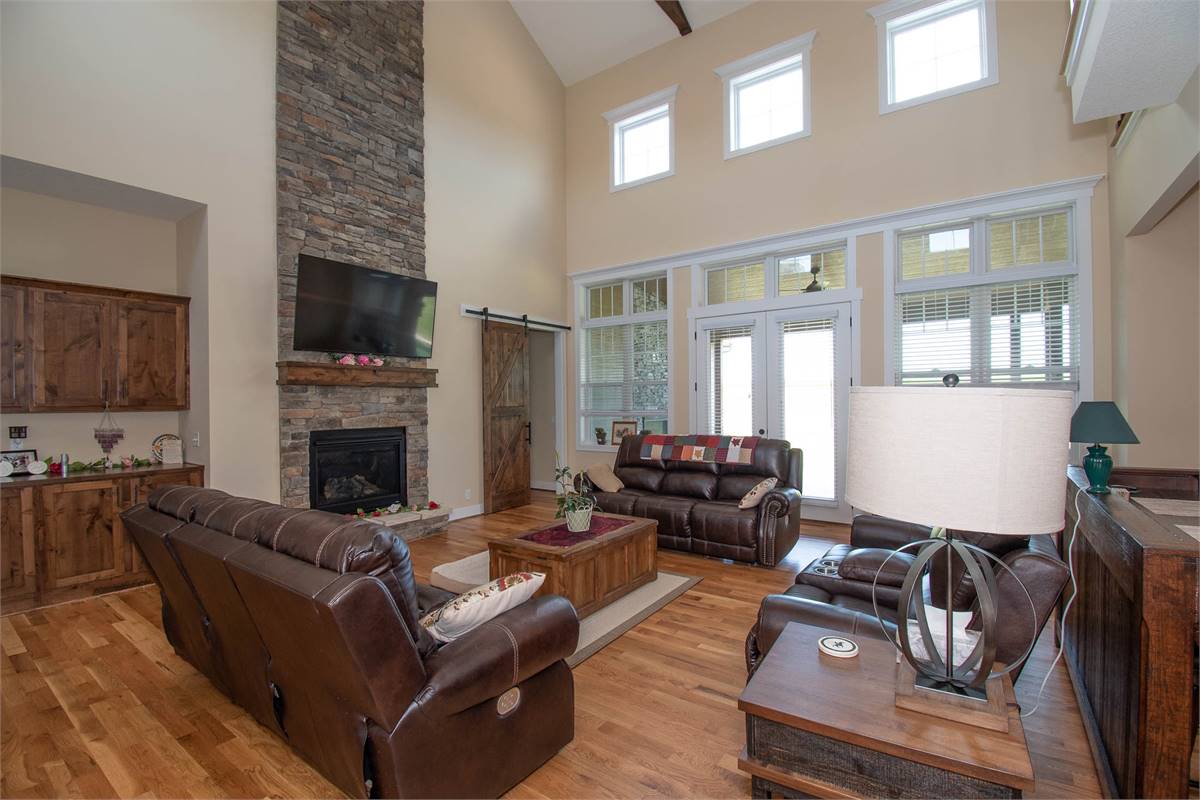

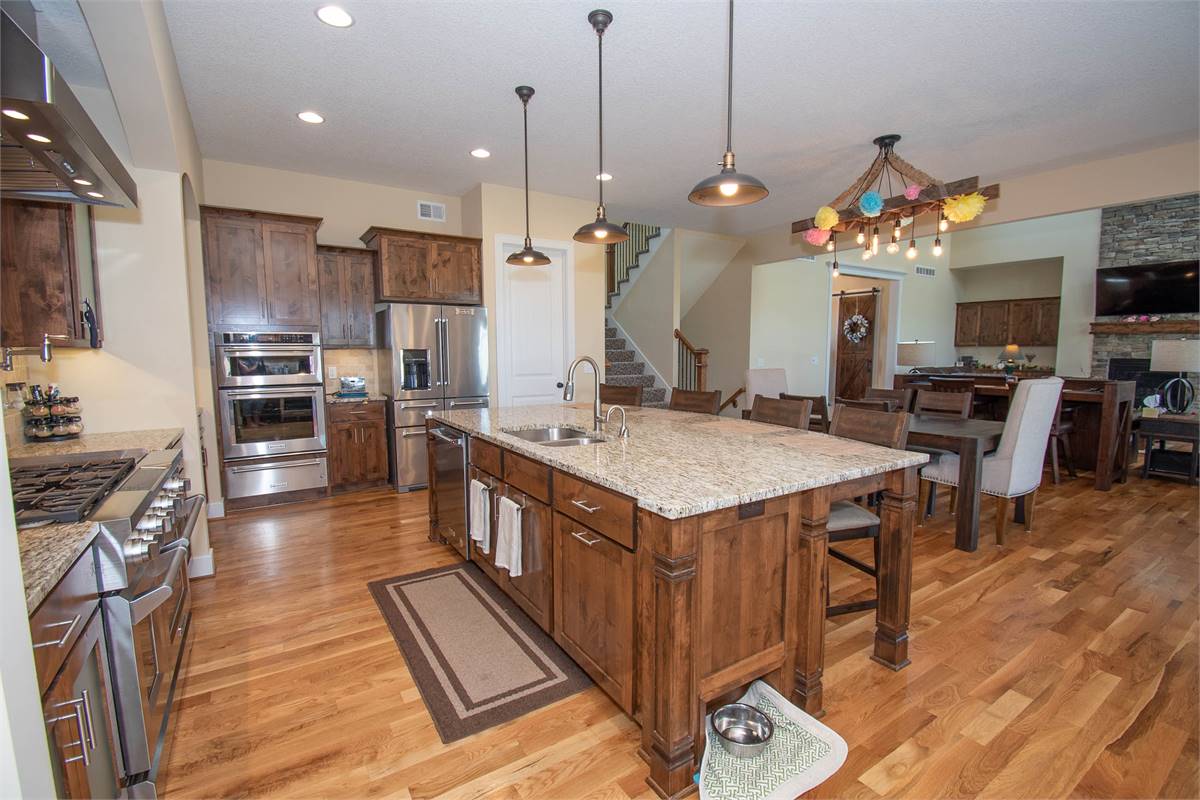

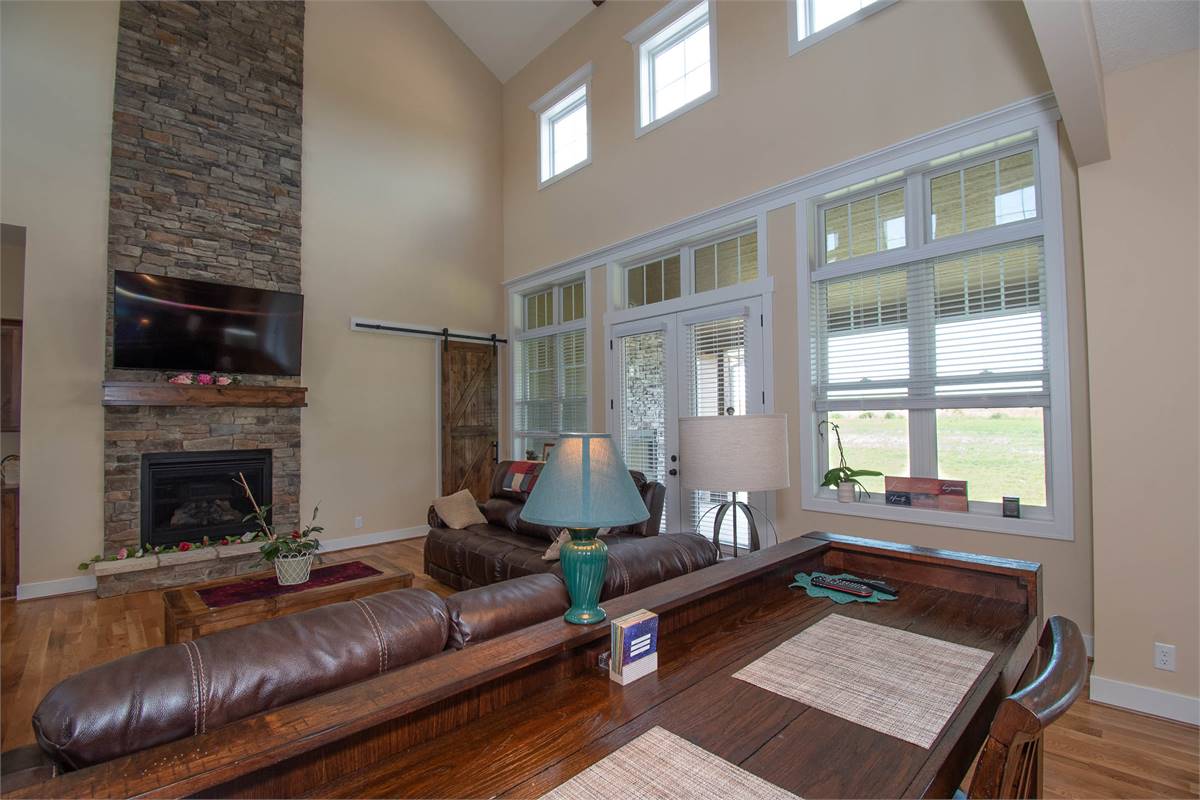

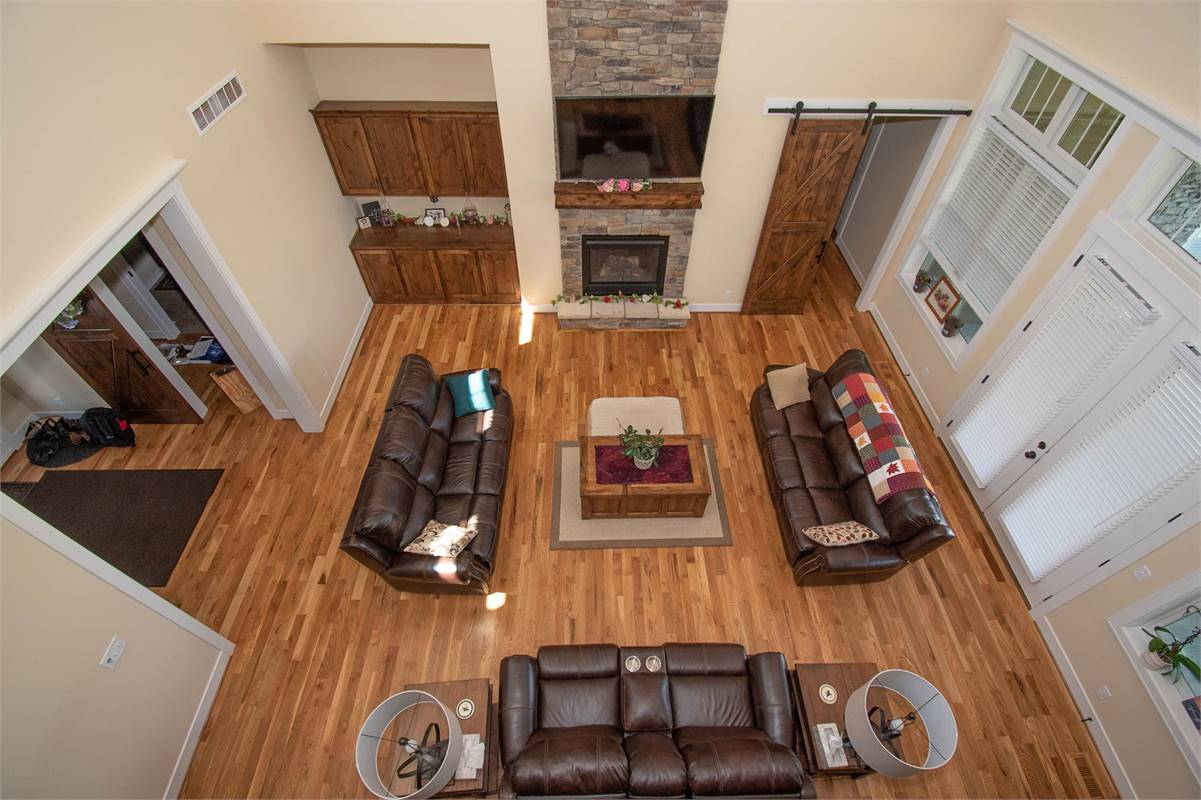

A two story family room opens from a formal foyer entry and rises to a view of the overlooking game area and exposed structural trusses. A two story stone fireplace adds warmth and style and ties in to the stone arches over the cook-top in the kitchen. The dining plays a pivotal role and ties the two spaces together. A large pantry is tucked away and convenient to the kitchen.

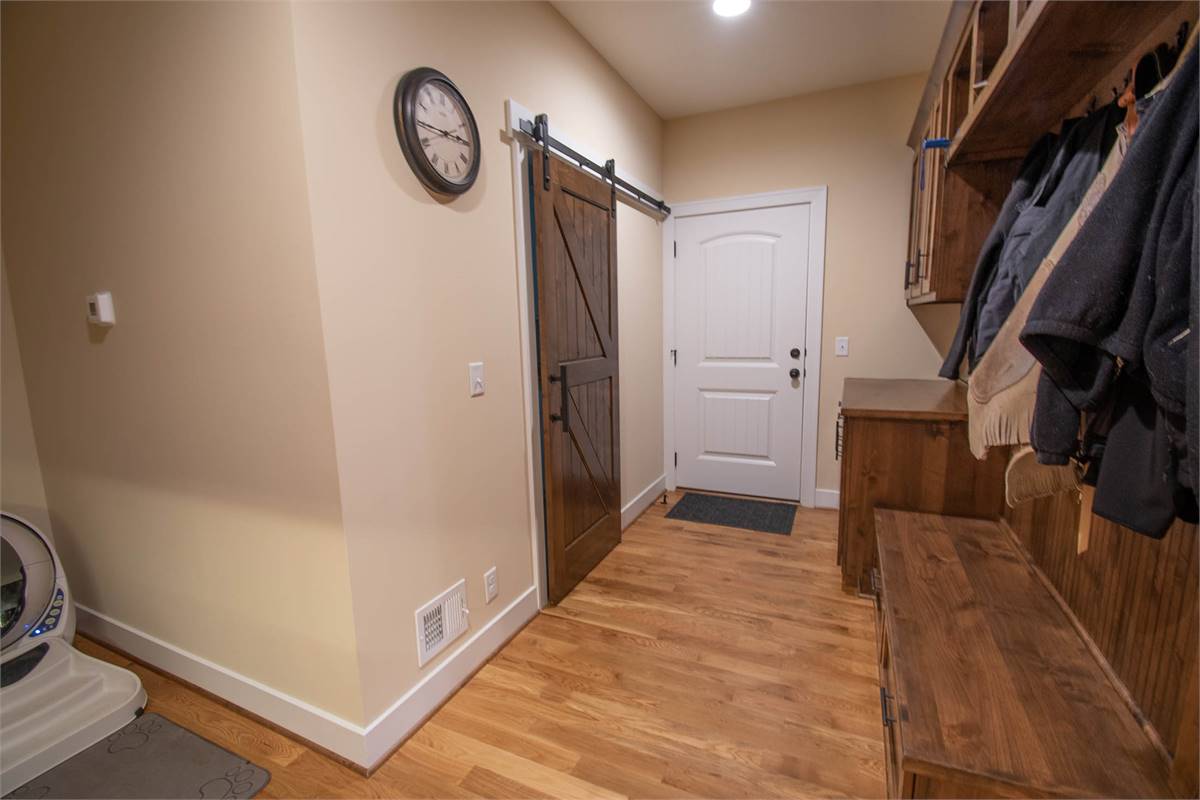

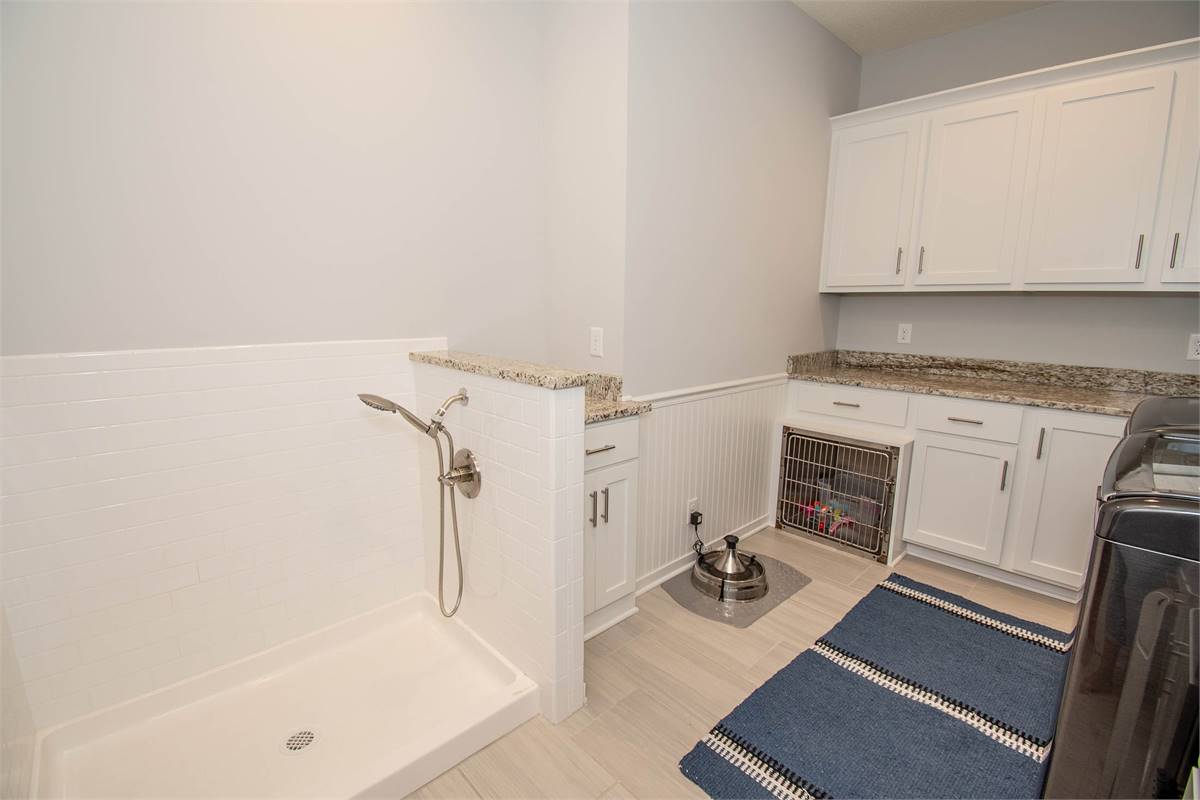

A mud room entry from the garage includes a desk area for bills and monitored computer time for teens. The adjacent utility room provides space for a freezer, sink, washer, dryer and folding/hanging space.

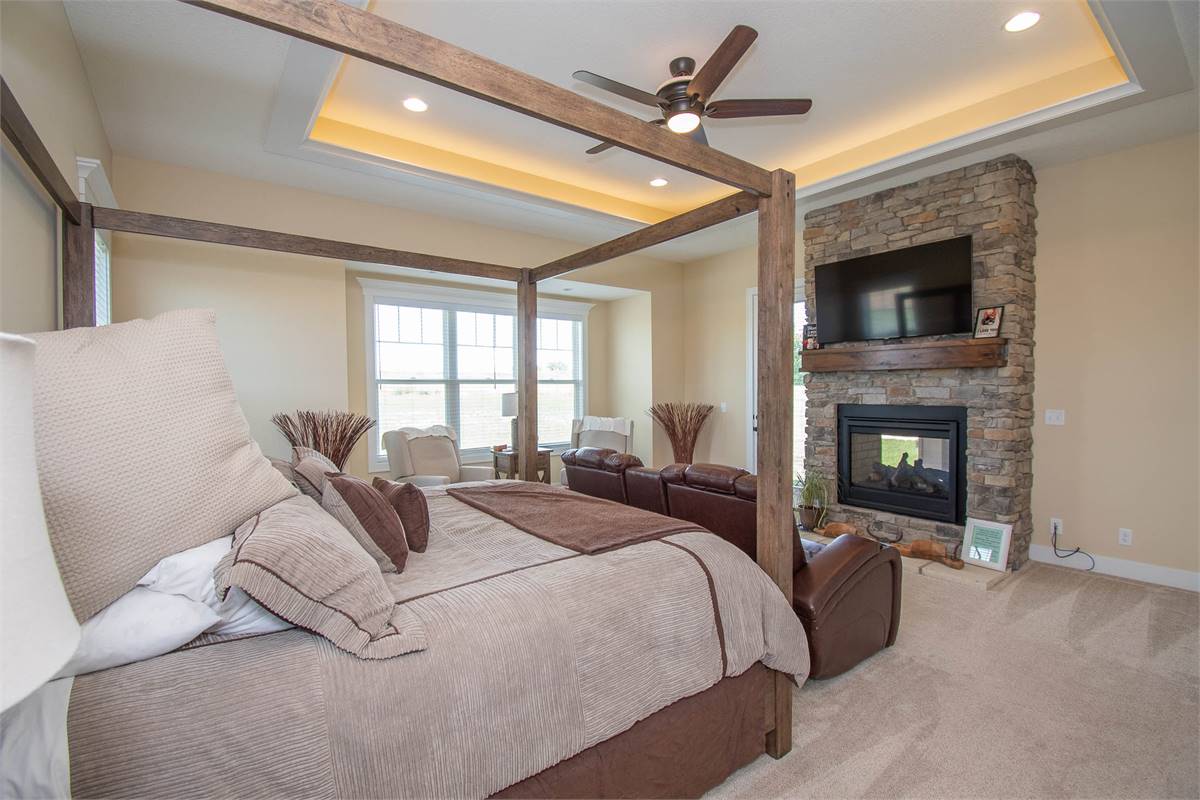

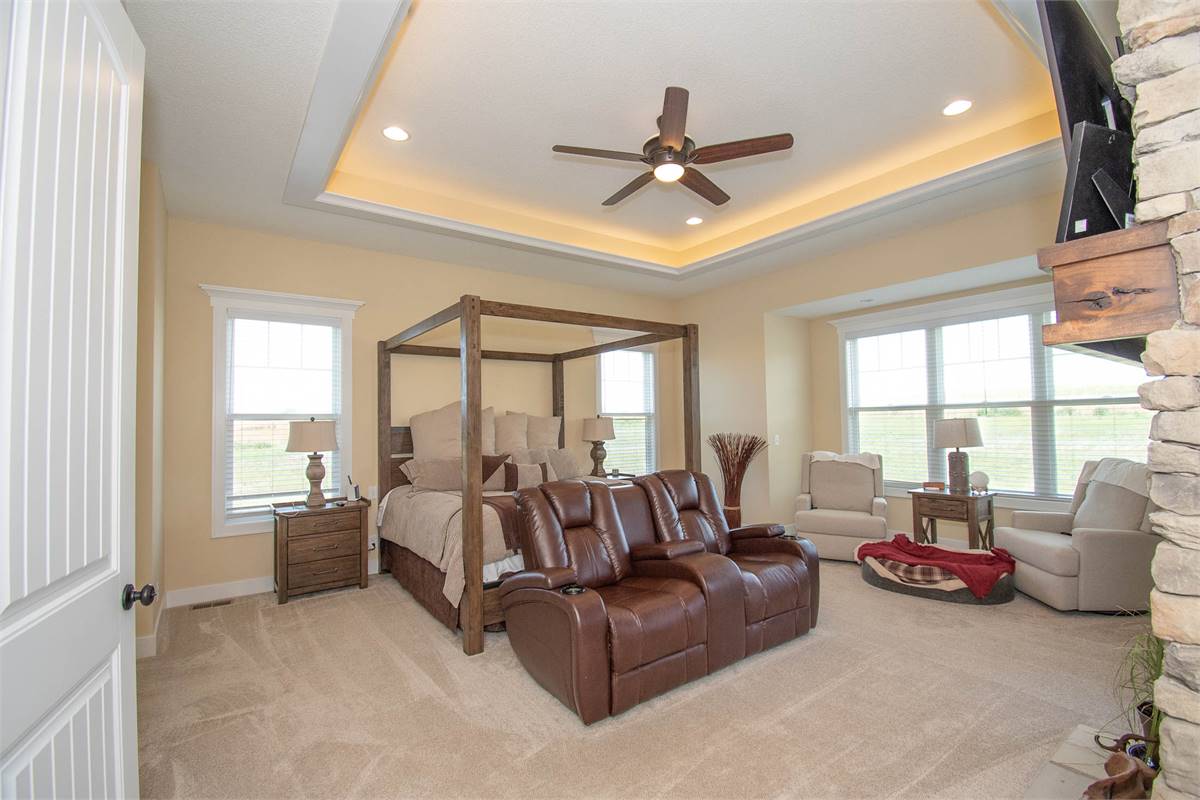

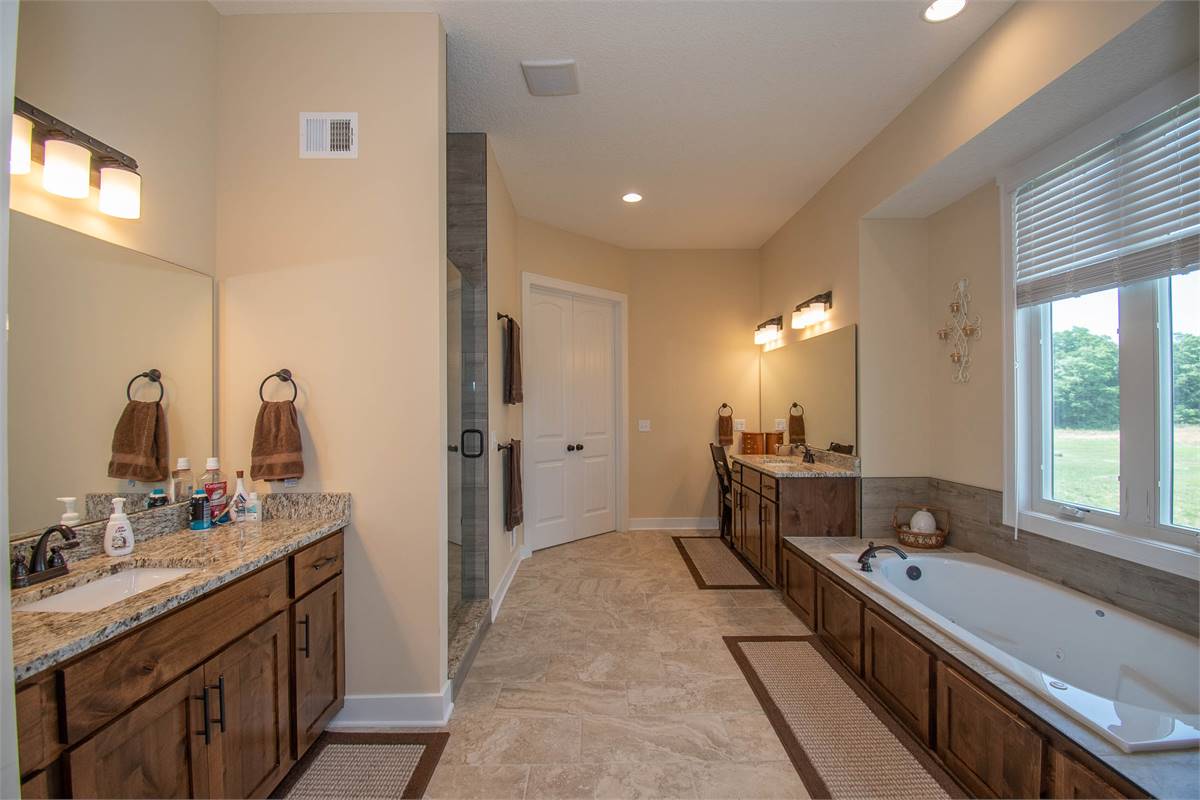

Niches and a vestibule leading to the master suite provide an appropriate transition from the family area. The master bath includes separate vanities, large tub, walk-in shower and walk-in closets with upper seasonal storage.

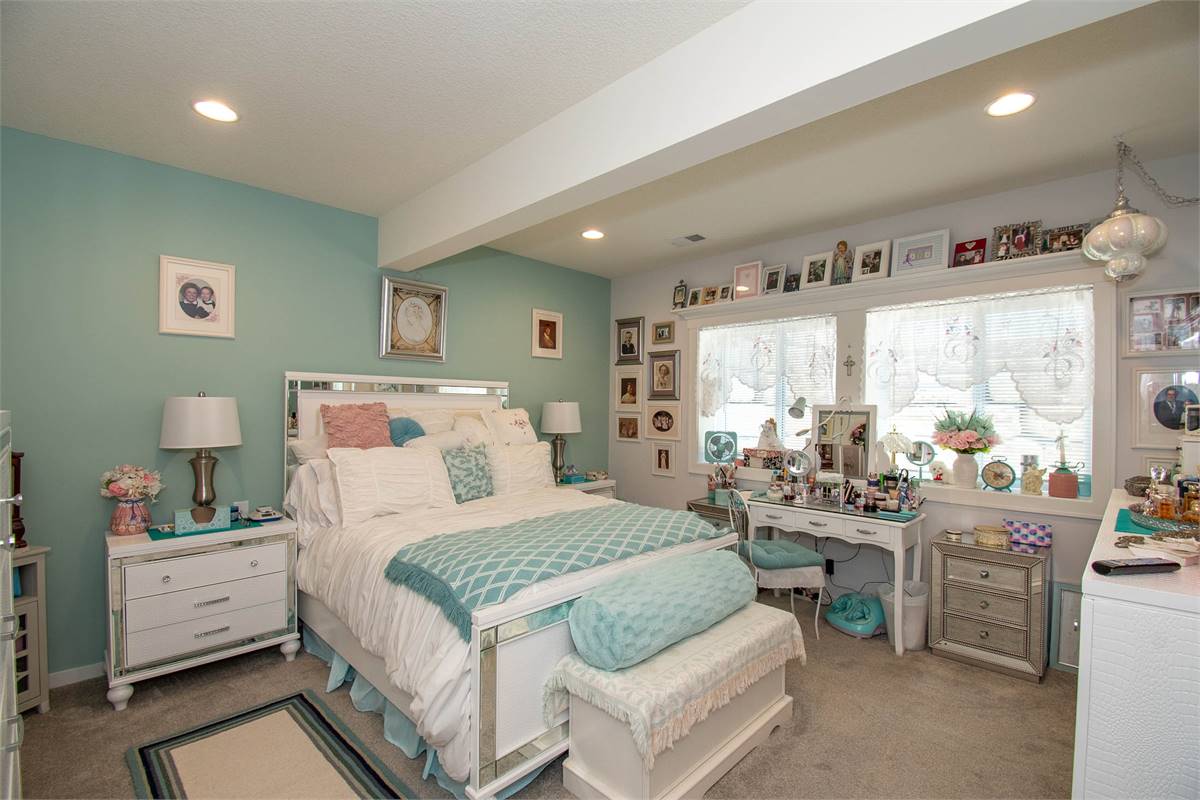

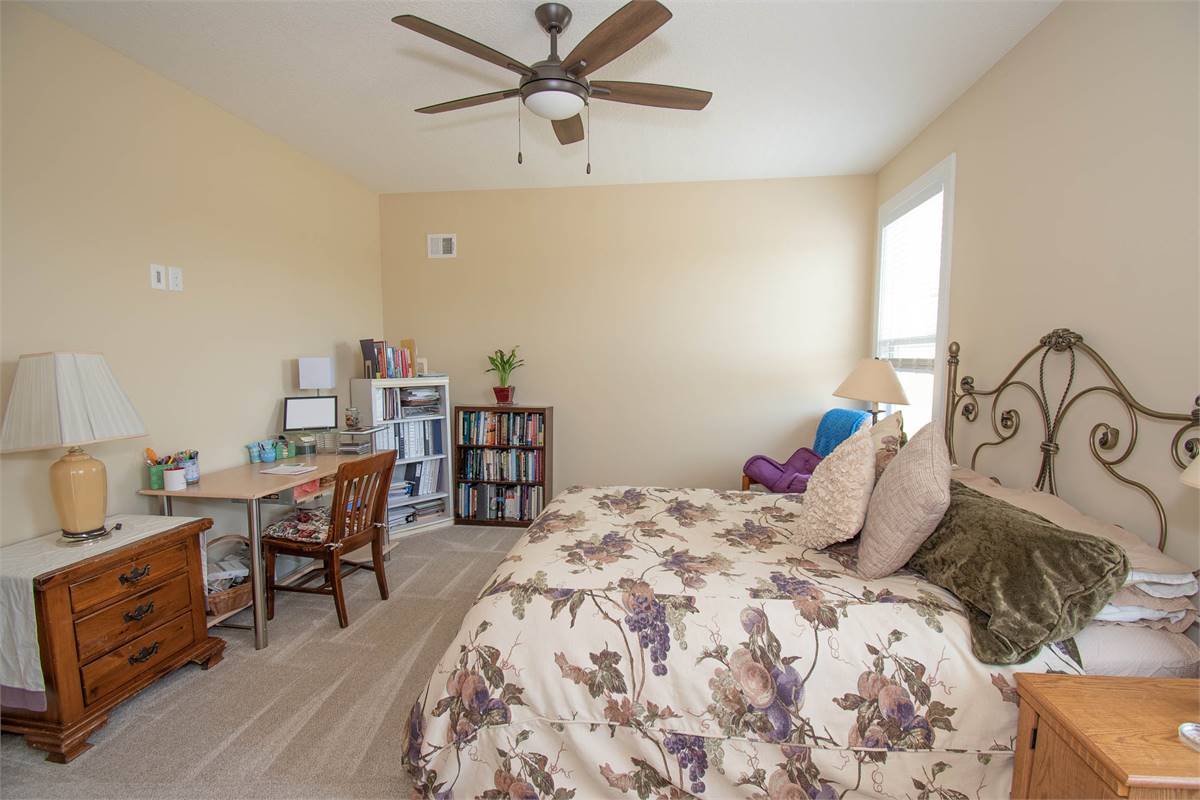

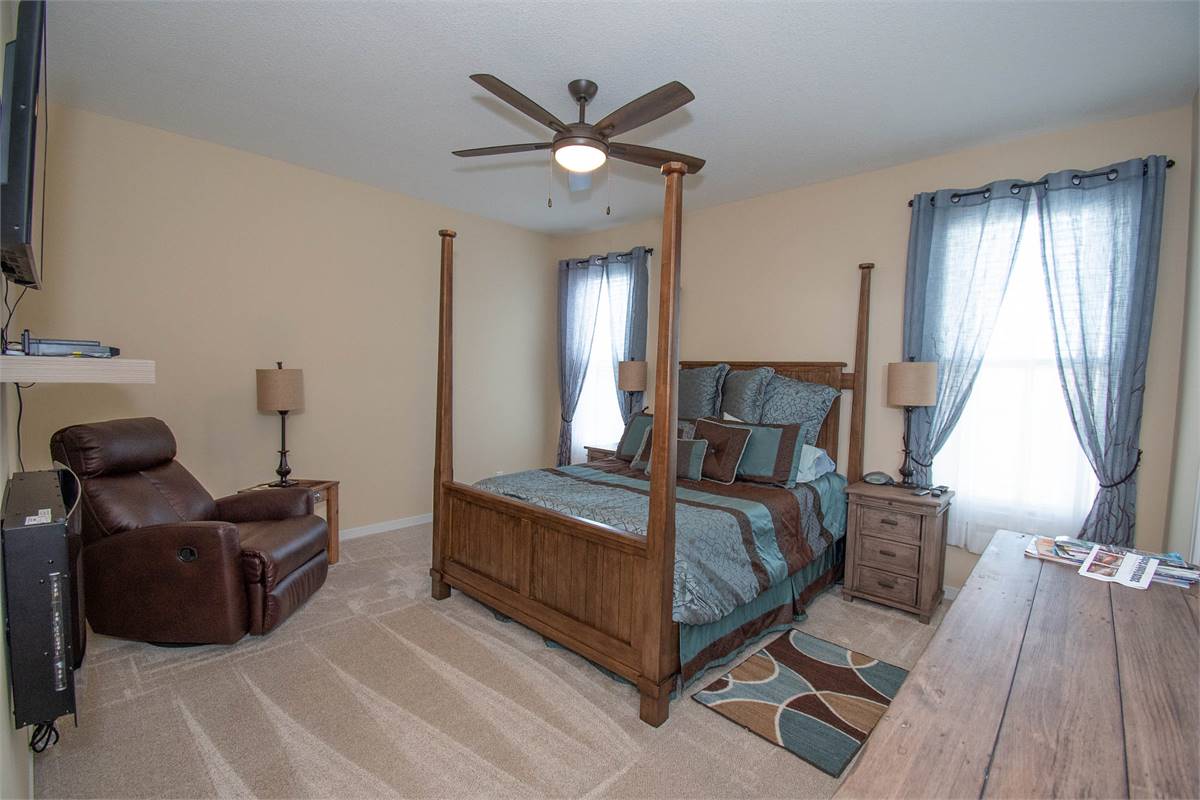

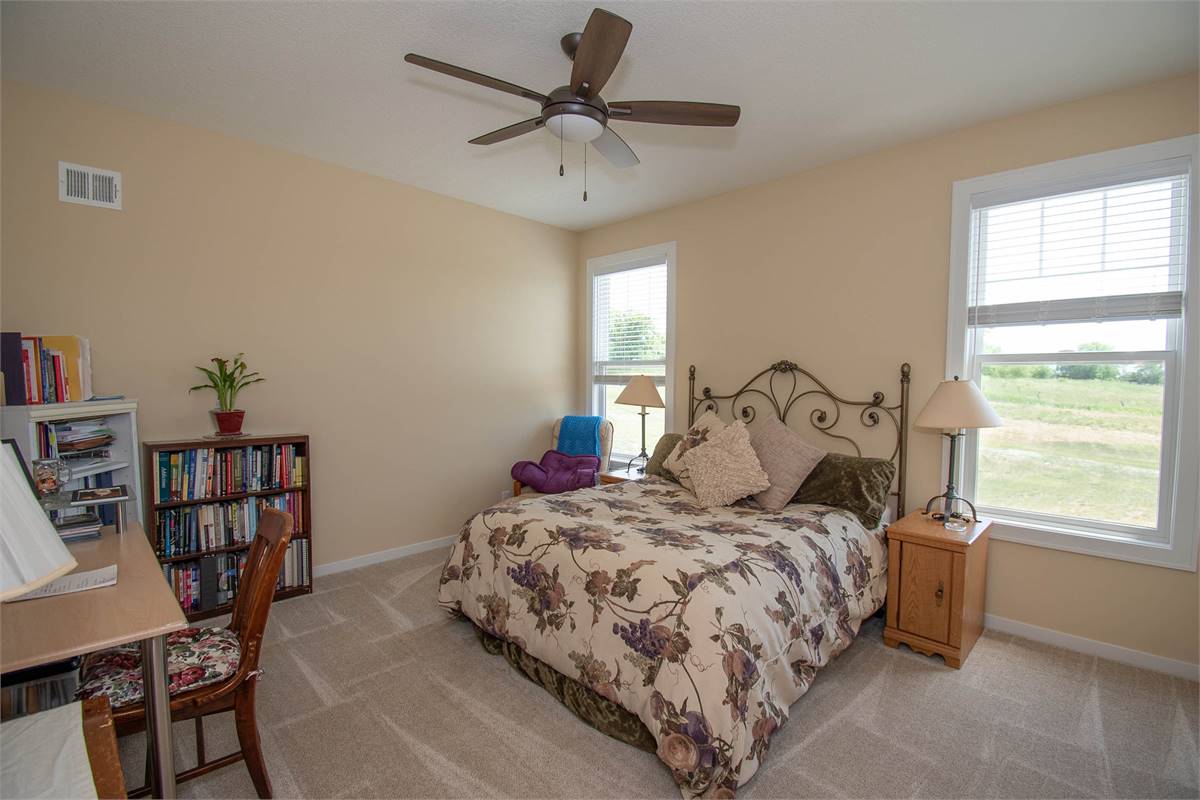

The secondary bedrooms are separated from the master and guest areas and each have a private bath and walk-in closet.

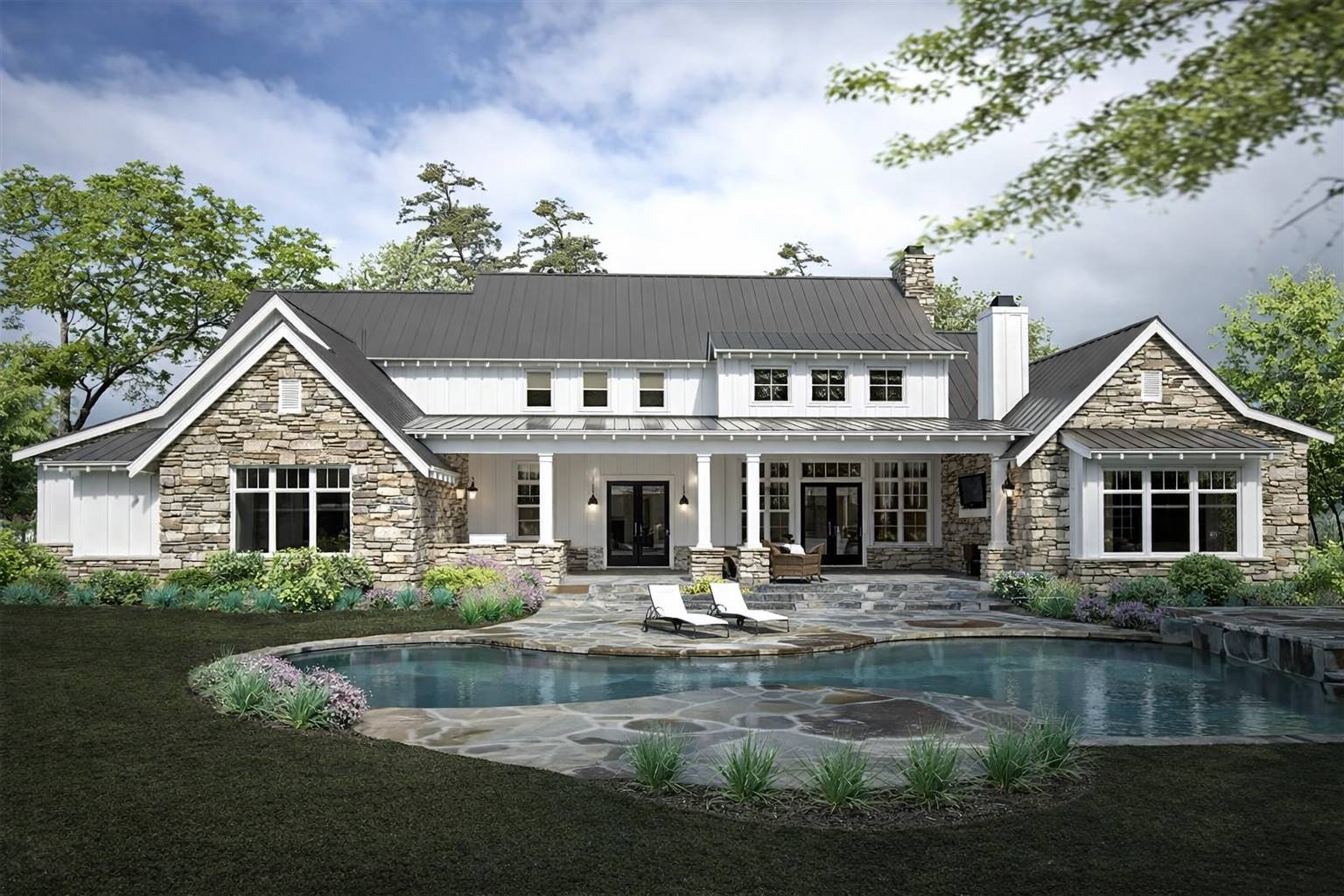

An outdoor fireplace and kitchen stand at opposite ends of a very large rear porch providing maximum view from interior and exterior spaces.

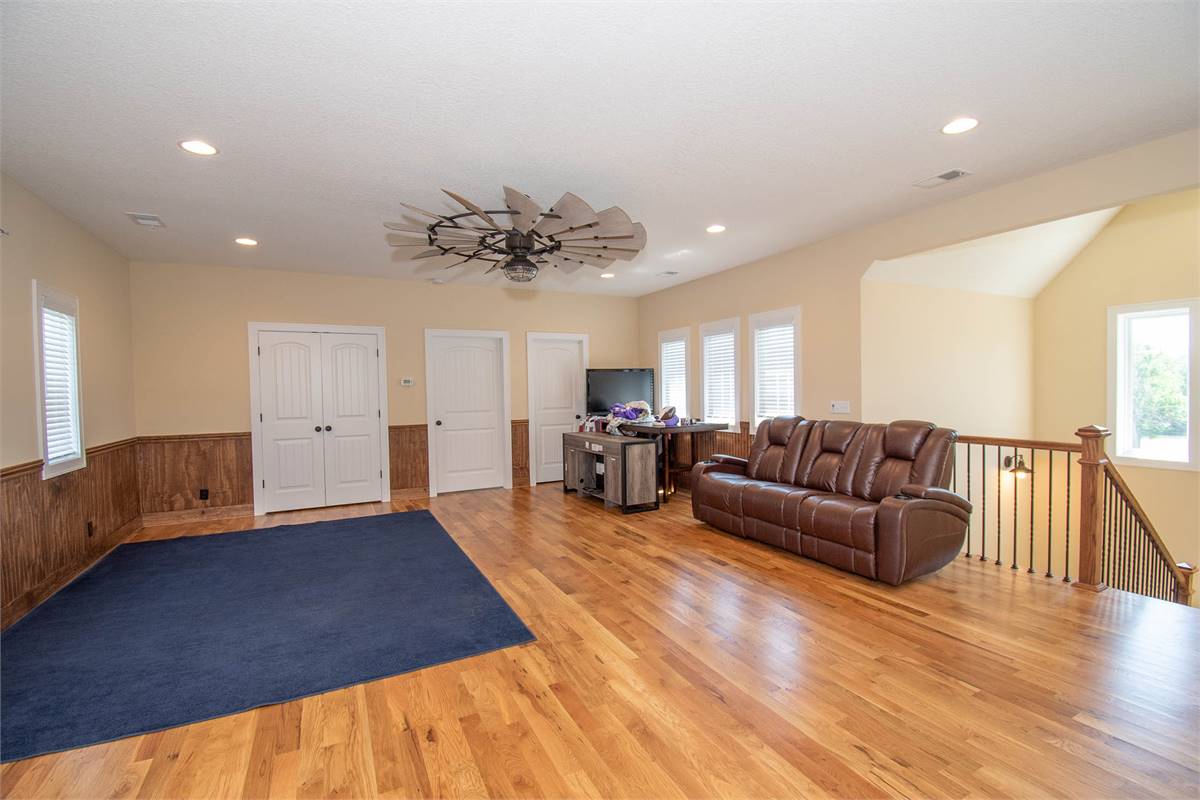

A large game room and media room provide additional living areas or potential future space.

House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,595
Immediate Delivery!
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,745
Five printed sets of house plans

5 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $1,845
Immediate Delivery!
Digital plans plus 5 printed sets

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $2,395
2D electronic editable computer files

CAD Unlimited Build


2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

CAD Unlimited Build $2,790
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1595
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
3,390 Sq. Ft.
Main Level:
774 Sq. Ft.
Upper Level:
4,164 Sq. Ft.
Total:
Room Details
4
Bedrooms:
4
Full Baths:
General House Information
1.5
Number of Stories:
92' 5"
Width:
98' 11"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Unfinished Square Footage
1078 Sq. Ft.
Garage:
1384 Sq. Ft.
Porch:
GARAGE
Side
Garage Location:
3
Garage Size:
Exterior Style
Country
Farmhouse
Ranch
Collections
Luxury
Mountain
Old House Classics
Open Floor Plan
Split Bedroom
Texas
Foundation
Basement
Crawl Space
Slab
Walk-out Basement
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
12/12
Primary:
4:12
Secondary:
6:12
Teritary:
2:12
Porch:
Roof Load
20
Live:
15
Dead:
40
Wind:
Insulation (R)
15
Exterior Wall:
15
Interior Wall:
30
Ceiling:
0
Floor:
House And Ceiling Heights
10'
First Floor Ceiling:
9'
Second Floor Ceiling:
29' 10"
Maximum House Height:
Key Features
Arches
Basement
Breezeway
Carport
Country Kitchen
Courtyard
Covered Front Porch
Covered Rear Porch
Crawlspace
Dining Room
Double Vanity Sink
Family Room
Fireplace
Foyer
Front Porch
Guest Suite
In-law Suite
Kitchen Island
Laundry 1st Fl
Loft / Balcony
Primary Bdrm Main Floor
Mud Room
Open Floor Plan
Peninsula / Eating Bar
Rear Porch
Rec Room
Separate Tub and Shower
Slab
Split Bedrooms
Storage Space
Suited for corner lot
Suited for sloping lot
Suited for view lot
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
Walkout Basement
Workshop
