House Plan: DFD-5833

See All 3 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,379
BEDS
3
BATHS
2
STORIES
1
CARS
2
PLANS FROM $995
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5833:
The vaulted ceiling in the living area showcases its fireplace located at the end of the room.

A breakfast bar provides a second eating area while giving the kitchen that added work space needed in every home.

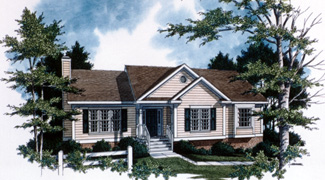

The gabled front porch provides a warm entrance for this raised ranch design. A great drive under garage design allows for a workshop or future finish beyond the garage portion of the basement.


Three bedrooms are nestled off an angled hallway helping establish privacy for all entrances. No bedroom can be viewed when entering the hall.
The master suite enjoys all amenities expected in a much larger home.
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $945
Digital set of plans for bidding purposes only

4 Printed Sets


Four printed sets of construction drawings shipped and received in 3-5 business days

4 Printed Sets $995
Four printed sets of house plans

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,045
Immediate Delivery!
Most recommended package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,045
Immediate Delivery!
Most recommended package
STEP 2 CHOOSE YOUR FOUNDATION
STEP 3 OPTIONAL ADD-ONS
Subtotal
$995
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
1,379 Sq. Ft.
Main Level:
1,379 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
General House Information
1
Number of Stories:
50' 4"
Width:
32' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
720 Sq. Ft.
Garage:
40 Sq. Ft.
Porch:
212 Sq. Ft.
Deck:
520 Sq. Ft.
Bonus Room:
GARAGE
Under
Garage Location:
2
Garage Size:
Exterior Style
Colonial
Cottage
Traditional
Collections
Affordable
First Home
North Carolina
Open Floor Plan
PDFs Fast!
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
7/12
Primary:
7/12
Gable:
Roof Load
20
Live:
10
Dead:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
8
First Floor Ceiling:
18' 0"
Maximum House Height:
Key Features
Attached
Covered Front Porch
Deck
Double Vanity Sink
Drive-under
Fireplace
Laundry 1st Fl
Primary Bdrm Main Floor
Peninsula / Eating Bar
Separate Tub and Shower
Side-entry
Suited for narrow lot
Suited for sloping lot
Unfinished Space
Vaulted Ceilings
Walkout Basement
