House Plan: DFD-7164

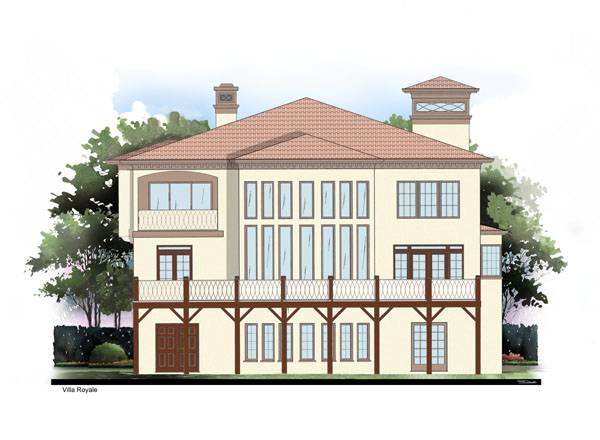

See All 2 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
3,073
BEDS
5
BATHS
4
STORIES
2
CARS
3
PLANS FROM $1,695
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

House Plan 7164
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,695
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,875
Five printed sets of house plans

5 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $1,975
Digital plans plus 5 printed sets

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use $2,495
2D electronic editable computer files

CAD Multi-Use


2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

CAD Multi-Use $3,290
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$0
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
1,593 Sq. Ft.
Main Level:
1,480 Sq. Ft.
Upper Level:
3,073 Sq. Ft.
Total:
Room Details
5
Bedrooms:
4
Full Baths:
General House Information
2
Number of Stories:
51' 0"
Width:
48' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
548 Sq. Ft.
Garage:
GARAGE
Side
Garage Location:
3
Garage Size:
Exterior Style
Southwest
Spanish
Tuscan
Collections
Affordable
Architects Choice
Open Floor Plan
Foundation
Basement
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
12/4
Primary:
Roof Load
40
Live:
12
Dead:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
9
First Floor Ceiling:
9
Second Floor Ceiling:
28' 1"
Maximum House Height:
Key Features
2 Story Volume
2-Story Family Room
Attached
Basement
Daylight Basement
Family Room
Foyer
Gallery
Great Room
Guest Suite
Laundry 2nd Fl
Loft / Balcony
Master - Private Patio / Deck Access
Master on Second
Nook / Breakfast Area
Peninsula / Eating Bar
Rear Porch
Side-entry
Sitting Area
Suited for narrow lot
Terrace-Rear
Walk-in Closet

Our Guarantees

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  •  PDFs NOW!™ plans in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer
