House Plan: DFD-8245

See All 5 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,521
BEDS
3
BATHS
2
STORIES
1.5
CARS
2
PLANS FROM $1,100
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 8245:

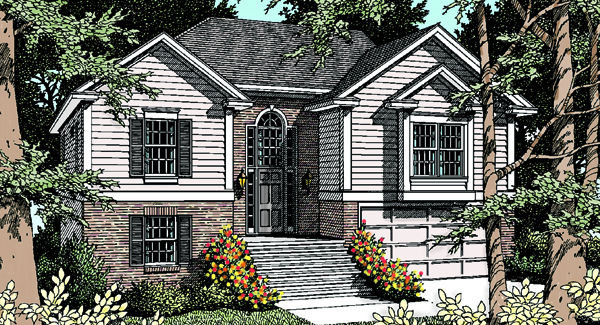

Driving up to the drive under would make anyones day complete. Vaulted ceilings help expand the sense of space in this compact split foyer. The entry stairs climb to a living room with windows all across the back wall helping your view to go well beyond the walls of the house. A side fireplace is framed by the modified cathedral ceiling making it a focal point. The cathedral ceiling of the dining room opens to the foyer as well creating a dramatic entrance.
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $725
Immediate Delivery!
Digital set of plans for bidding purposes only

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,100
Immediate Delivery!
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,200
Five printed sets of house plans
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1100
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
32 Sq. Ft.
Lower Level:
1,521 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
General House Information
1.5
Number of Stories:
46' 0"
Width:
47' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
GARAGE
Front
Garage Location:
2
Garage Size:
Exterior Style
European
Traditional
Collections
Affordable
Bi-Level
First Home
PDFs Fast!
Split Bedroom
Foundation
Basement Alternate
WALK OUT BASEMENT
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
8/12
Primary:
Roof Load
20
Live:
10
Dead:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
8
First Floor Ceiling:
28' 10"
Maximum House Height:
Key Features
2 Story Volume
Attached
Basement
Deck
Dining Room
Double Vanity Sink
Drive-under
Fireplace
Foyer
Front-entry
Great Room
His and Hers Primary Closets
Laundry 1st Fl
Primary Bdrm Main Floor
Nook / Breakfast Area
Peninsula / Eating Bar
Separate Tub and Shower
Split Bedrooms
Suited for narrow lot
Unfinished Space
Vaulted Ceilings
Walk-in Closet
Walkout Basement
