House Plan: DFD-8270

See All 4 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
2,476
BEDS
3
BATHS
2.5
STORIES
1
CARS
2
PLANS FROM $875
For questions and help, live chat, email or call us at 877-895-5299

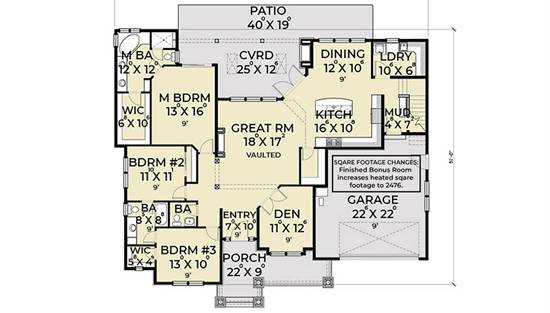

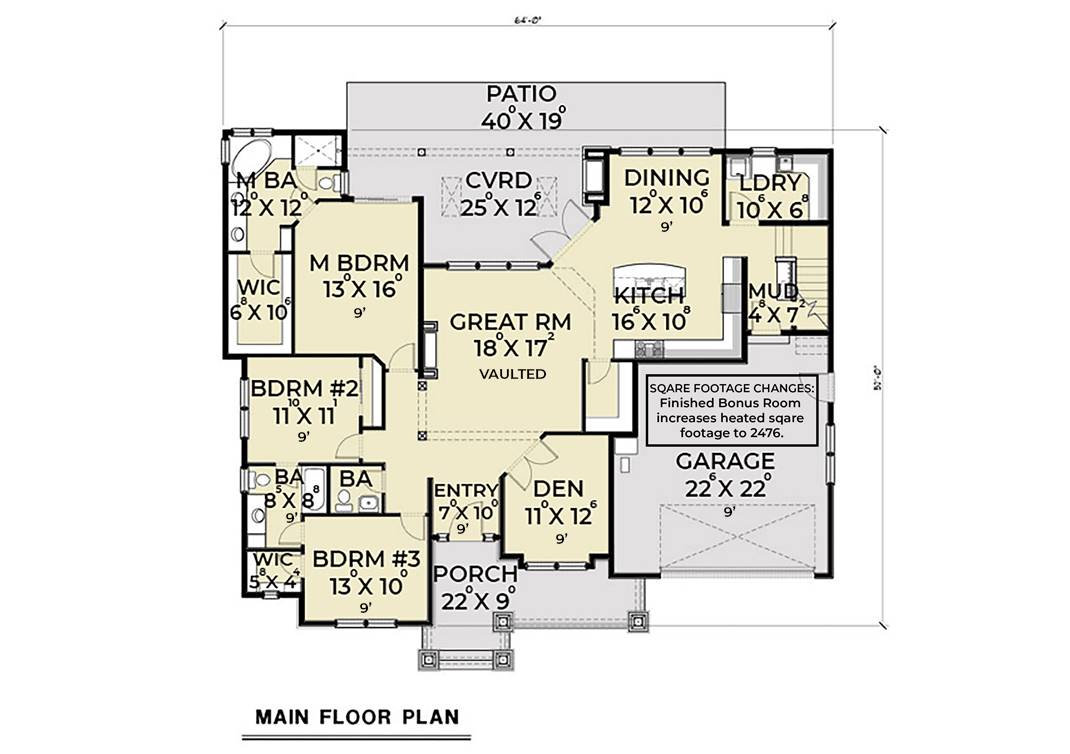

Floor Plans
Click to Zoom In on Floor Plan

About House Plan 8270:
An inclusive and open layout is only the beginning of all that this Craftsman ranch has to offer. 2,476 square feet of space define this accessible home, along with 3 bedrooms and 2. Read more >
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $875
Digital set of plans for bidding purposes only

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,750
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,900
Five printed sets of house plans

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use $2,250
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$0
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
2,124 Sq. Ft.
Main Level:
2,476 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
1
Number of Stories:
64'
Width:
52'
Depth:
Single
Dwelling Number:
2nd Floor

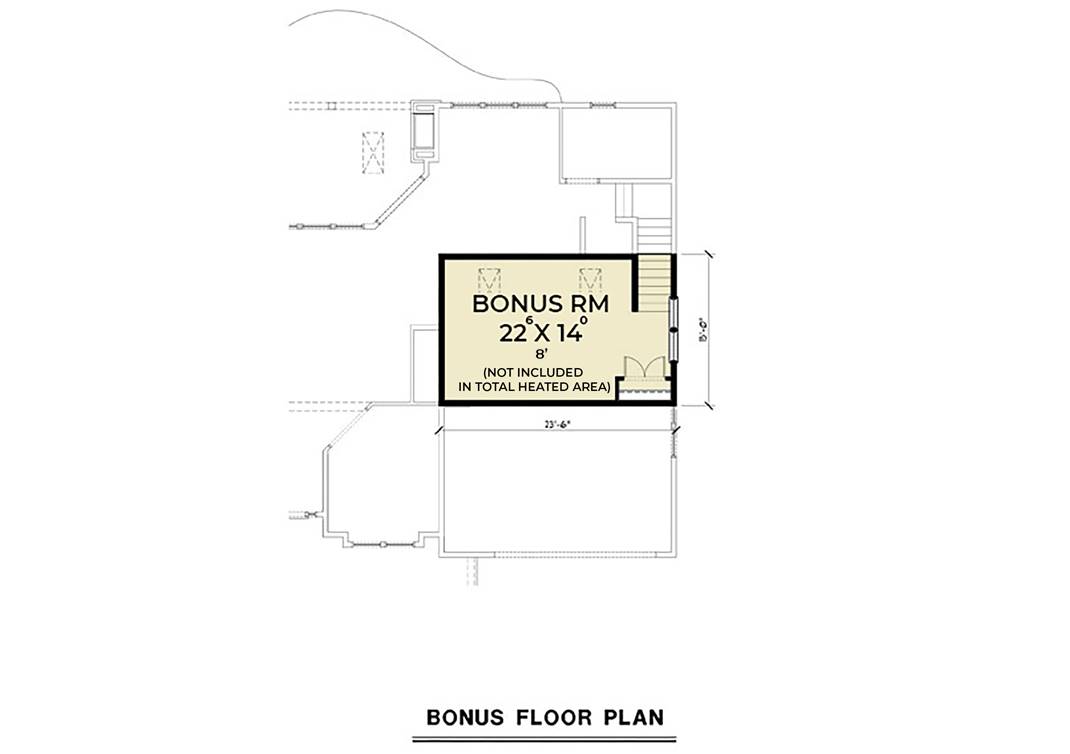

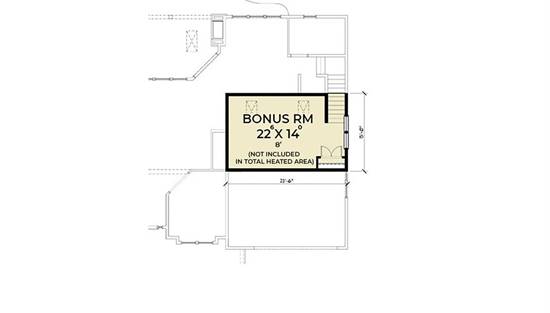

Bonus Access:
Unfinished Square Footage
352 Sq. Ft.
Bonus Room:
GARAGE
Front
Garage Location:
2
Garage Size:
Exterior Style
Cottage
Craftsman
Ranch
Traditional
Foundation
Crawl Space
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
10:12
Primary:
7:12
Secondary:
Insulation (R)
House And Ceiling Heights
9
First Floor Ceiling:
24'
Maximum House Height:

Important Facts Before Purchasing House Plans

Direct from the Designers™ House Plans has the highest design standards in the industry. Read more on how our house plan standards and guarantees show our commitment to our customers and vital information you should know before starting your home building project.

Read All Important Facts >
Key Features
Attached
Covered Front Porch
Covered Rear Porch
Dining Room
Double Vanity Sink
Fireplace
Front-entry
Great Room
Home Office
Kitchen Island
Laundry 1st Fl
L-Shaped
Master Bdrm Main Floor
Mud Room
Open Floor Plan
Peninsula / Eating Bar
Separate Tub and Shower
Vaulted Great Room/Living
Walk-in Closet
Walk-in Pantry
