House Plan: DFD-9083

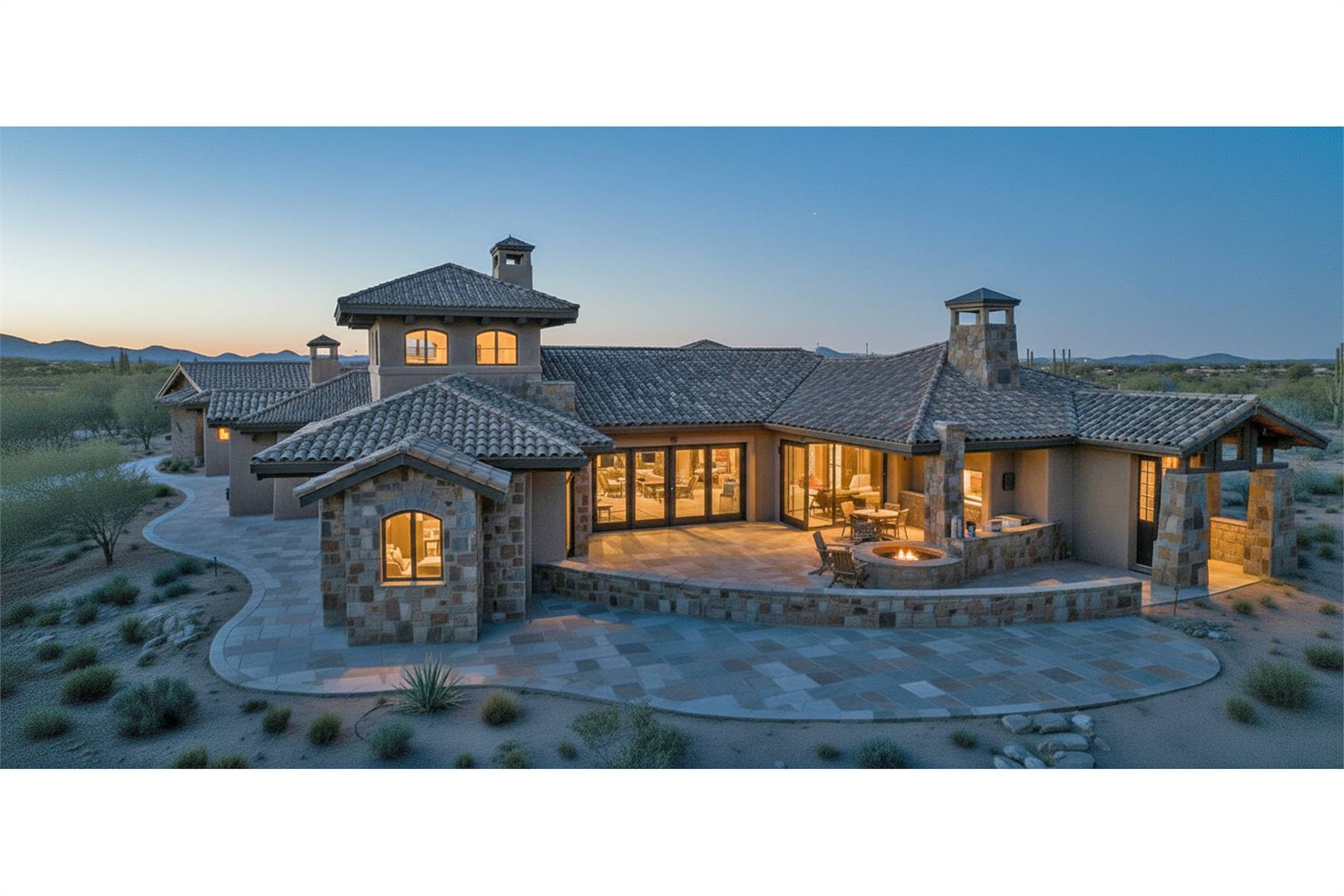

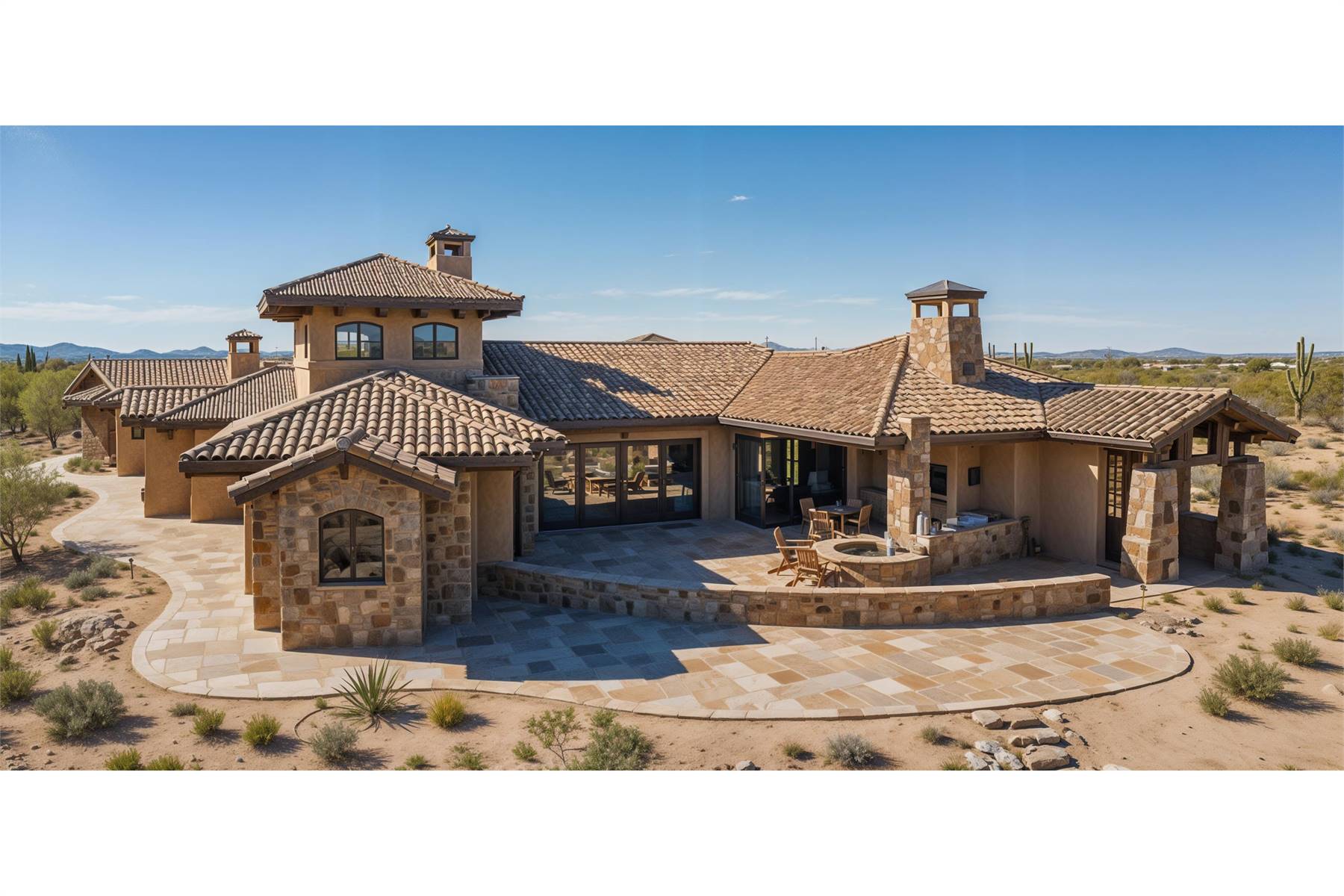

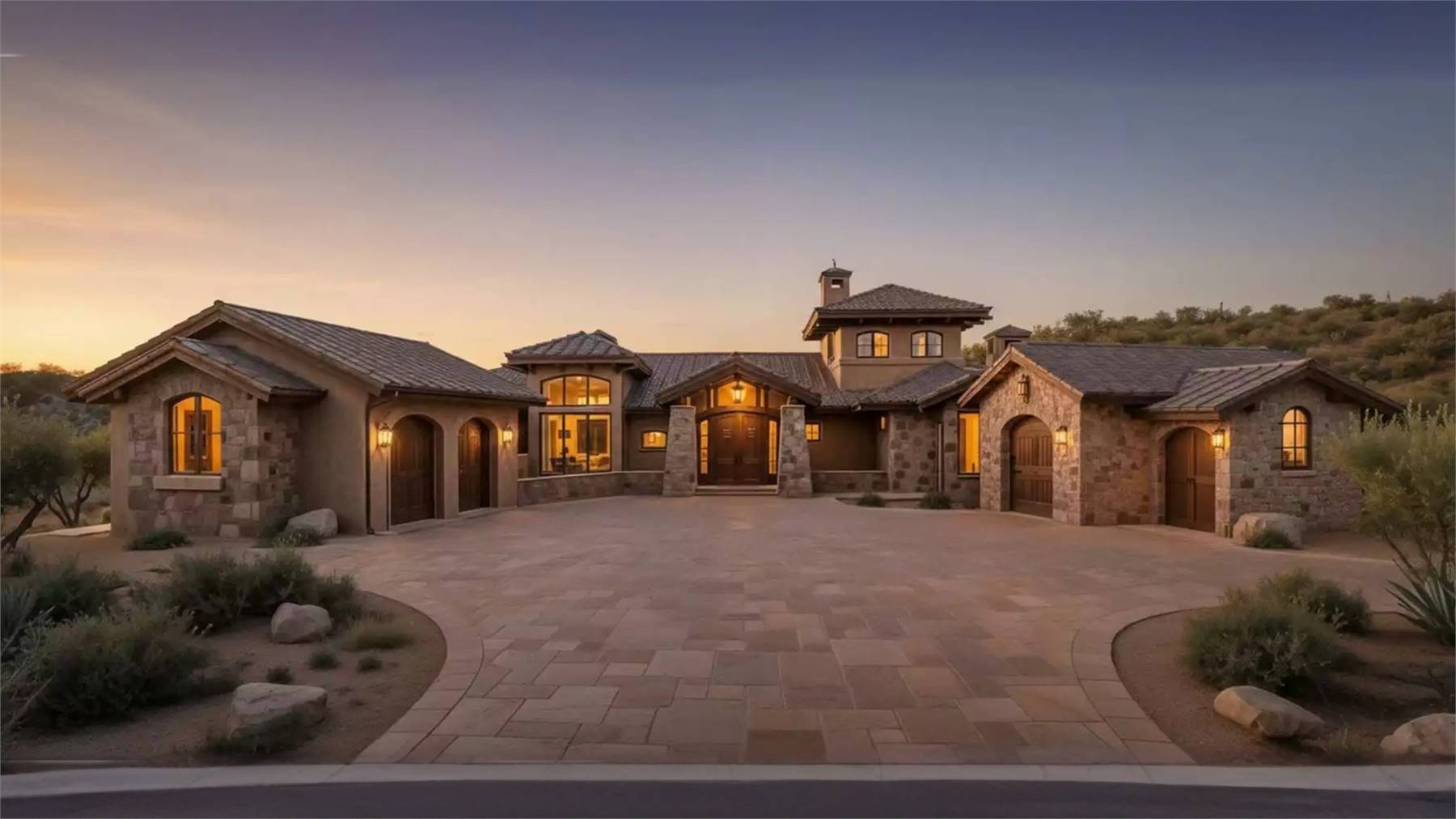

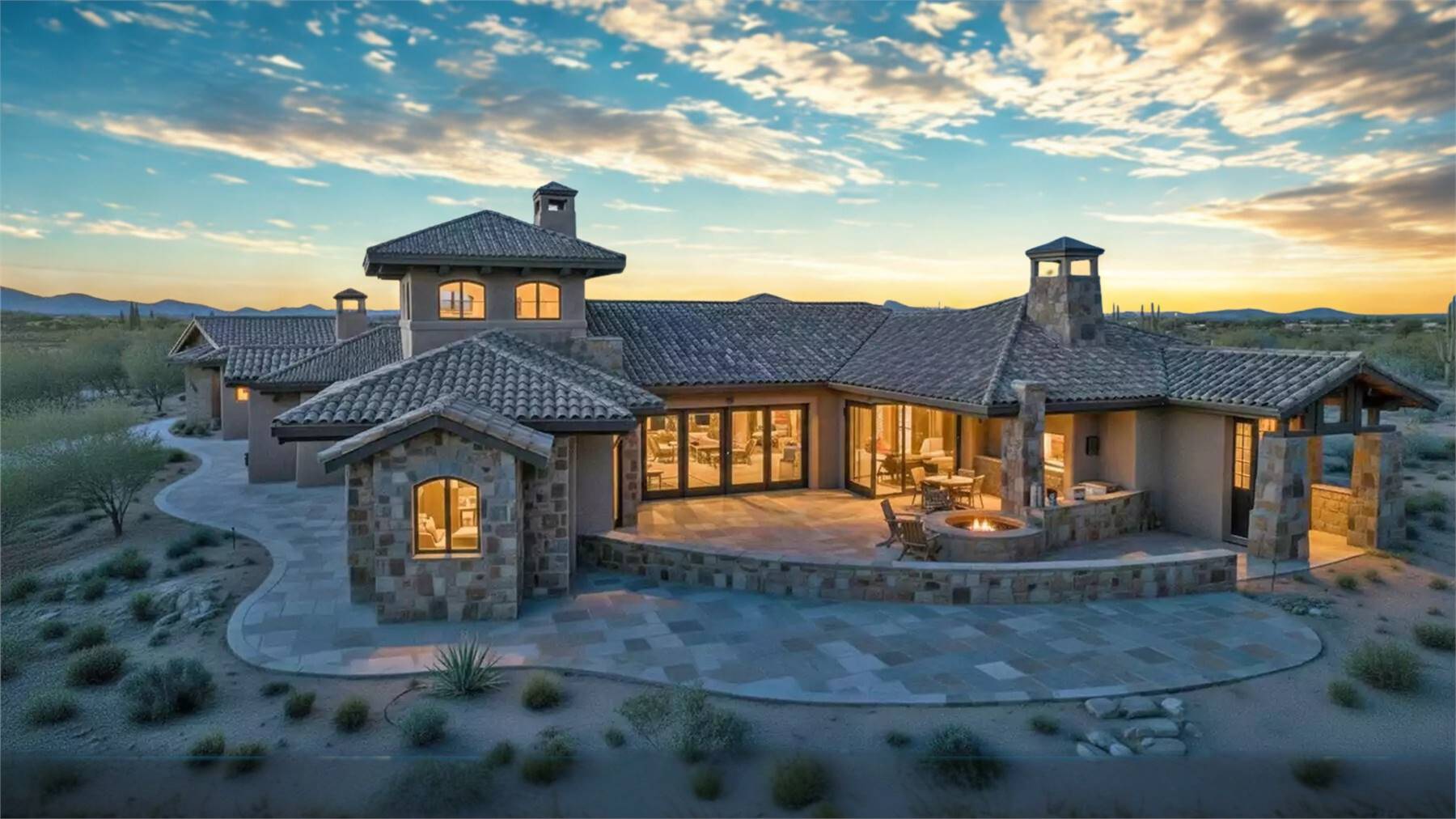

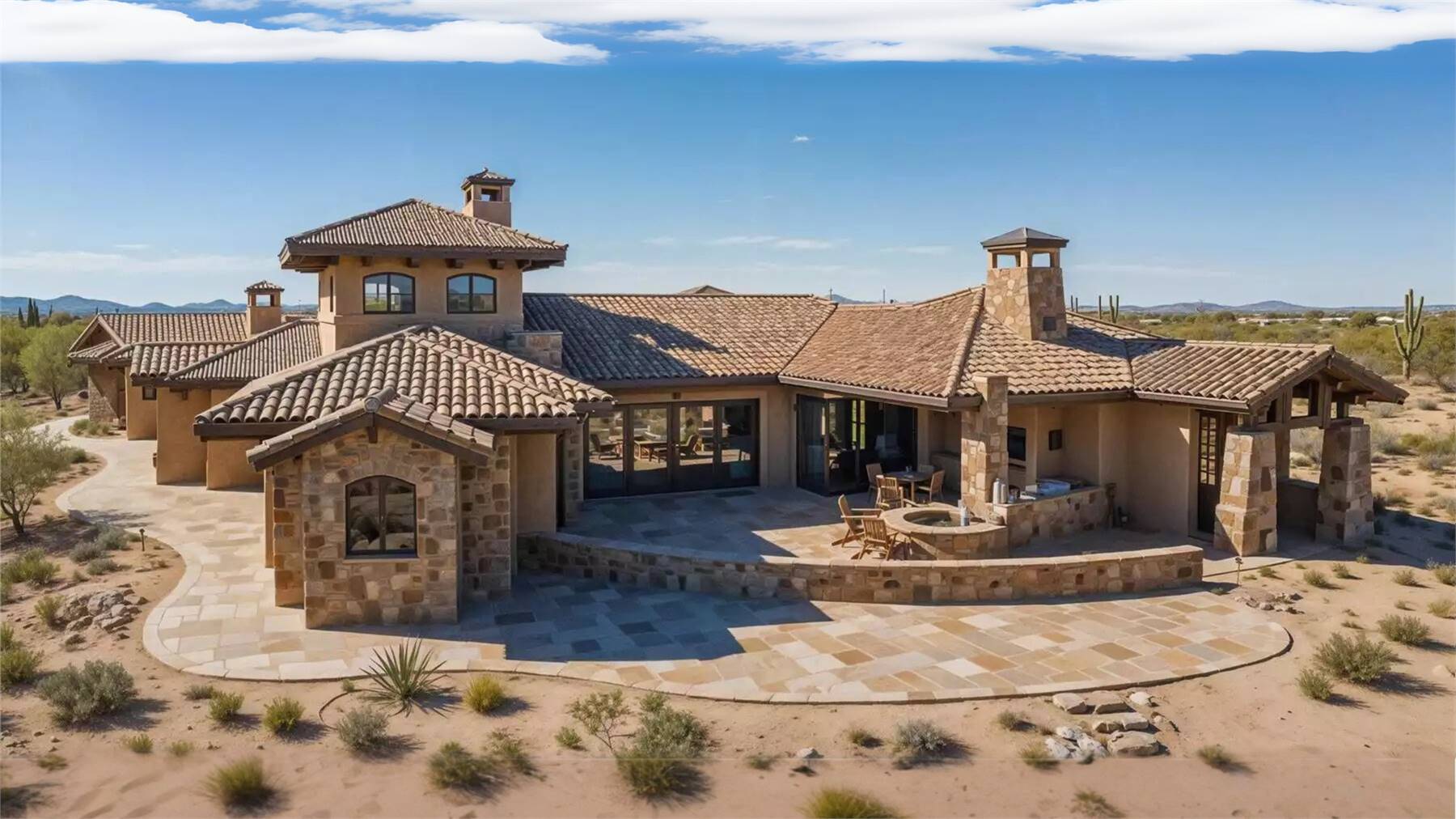

See All 8 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
3,579
BEDS
3
BATHS
3.5
STORIES
2
CARS
3
PLANS FROM $1,095
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 9083:
An attractive façade welcomes guests to this three-bedroom Tuscan design, where each bedroom is actually a master suite! Read more >
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $1,095
Immediate Delivery!
Digital set of plans for bidding purposes only

PDF Single Build


Digital plans emailed to you in PDF format allowing minor changes, printing copies, and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,995
Immediate Delivery!
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $2,195
Five printed sets of house plans

8 Printed Sets


Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

8 Printed Sets $2,295
Eight printed sets of house plans

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use $2,895
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$0
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
3,393 Sq. Ft.
Main Level:
186 Sq. Ft.
Upper Level:
3,579 Sq. Ft.
Total:
Room Details
3
Bedrooms:
3
Full Baths:
2
Half Baths:
General House Information
2
Number of Stories:
100' 0"
Width:
119' 8"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
1252 Sq. Ft.
Garage:
GARAGE
3
Garage Size:
Exterior Style
Spanish
Tuscan
Foundation
Crawl Space
Framing Information
Combination
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
5/12
Primary:
Roof Load
25
Live:
25
Dead:
70
Wind:
Insulation (R)
21
Exterior Wall:
0
Interior Wall:
38
Ceiling:
25
Floor:
House And Ceiling Heights
9'6"
First Floor Ceiling:
8
Second Floor Ceiling:
24' 0"
Maximum House Height:
Reviews for Plan 9083
7/21/2018
Ernie of Smithfield, VA
The plans were complete enough for our builder to hand off to a local architect to make "hurricane compliant" changes. We would have liked artist concepts of what rooms would look like, e.g., the Great Room, and different views from inside the house. We had a fantastic builder we trusted, and he was able to turn the drawings into a magnificent reality. Just for FYI - we did put the house on a slab, rather than on the crawl space. We did add a 2nd A/C and heating system on the opposite side of the house (with the tower) - that has been incredibly useful in the heat of southern Virginia. If we thought we would do this again, we would definitely use your website. The house gets lots of compliments - it works very well for us, and it is very unique here (not a traditional "Williamsburg/colonial" style). Thank you!
Customer Review:
Key Features
2 Master Suites
Breezeway
Country Kitchen
Courtyard
Covered Rear Porch
Crawlspace
Detached
Double Vanity Sink
Family Room
Fireplace
Great Room
Guest Suite
Home Office
Kitchen Island
Laundry 1st Fl
Library/Media Rm
Loft / Balcony
Master Bdrm Main Floor
Master Bdrm Upstairs
Mud Room
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Separate Tub and Shower
Side-entry
Sitting Area
Split Bedrooms
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
