House Plan: 9690

Plan Specification
Total Square Footage: 924
Main Level: 630
Second Level: 294
Bedrooms: 2
Baths: 2 Half: 0
Garages: 0
Width/Depth: 30 ft / 21 ft
Foundation: Crawlspace, Floating slab (included), Monolithic slab
Pin It
© copyright by designer

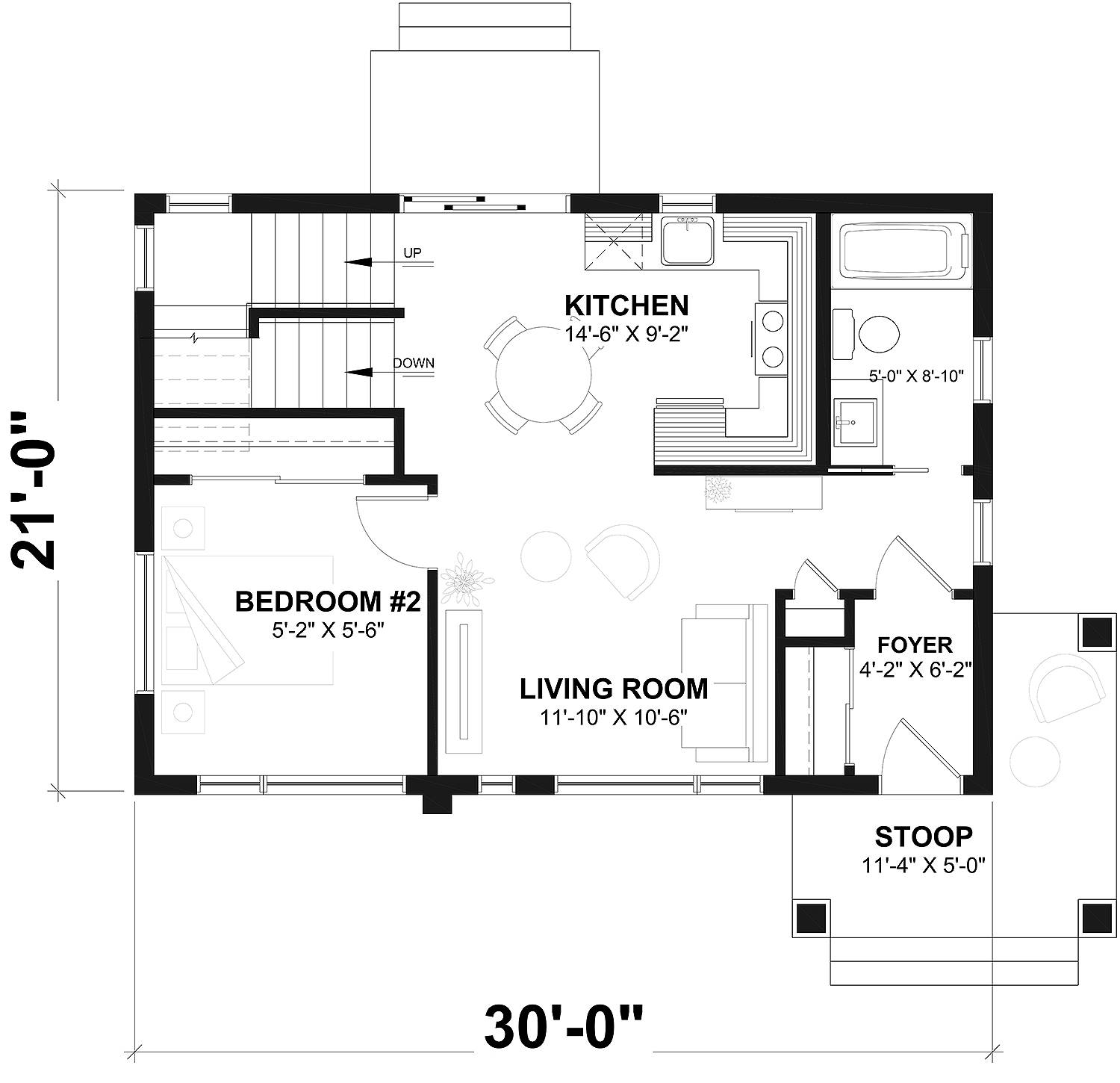

1st Floor Plan:
1st Floor Plan
Need to make changes?
Call for a free modification quote
877-895-5299 or LIVE CHAT NOW
or use this quote form
© copyright by designer

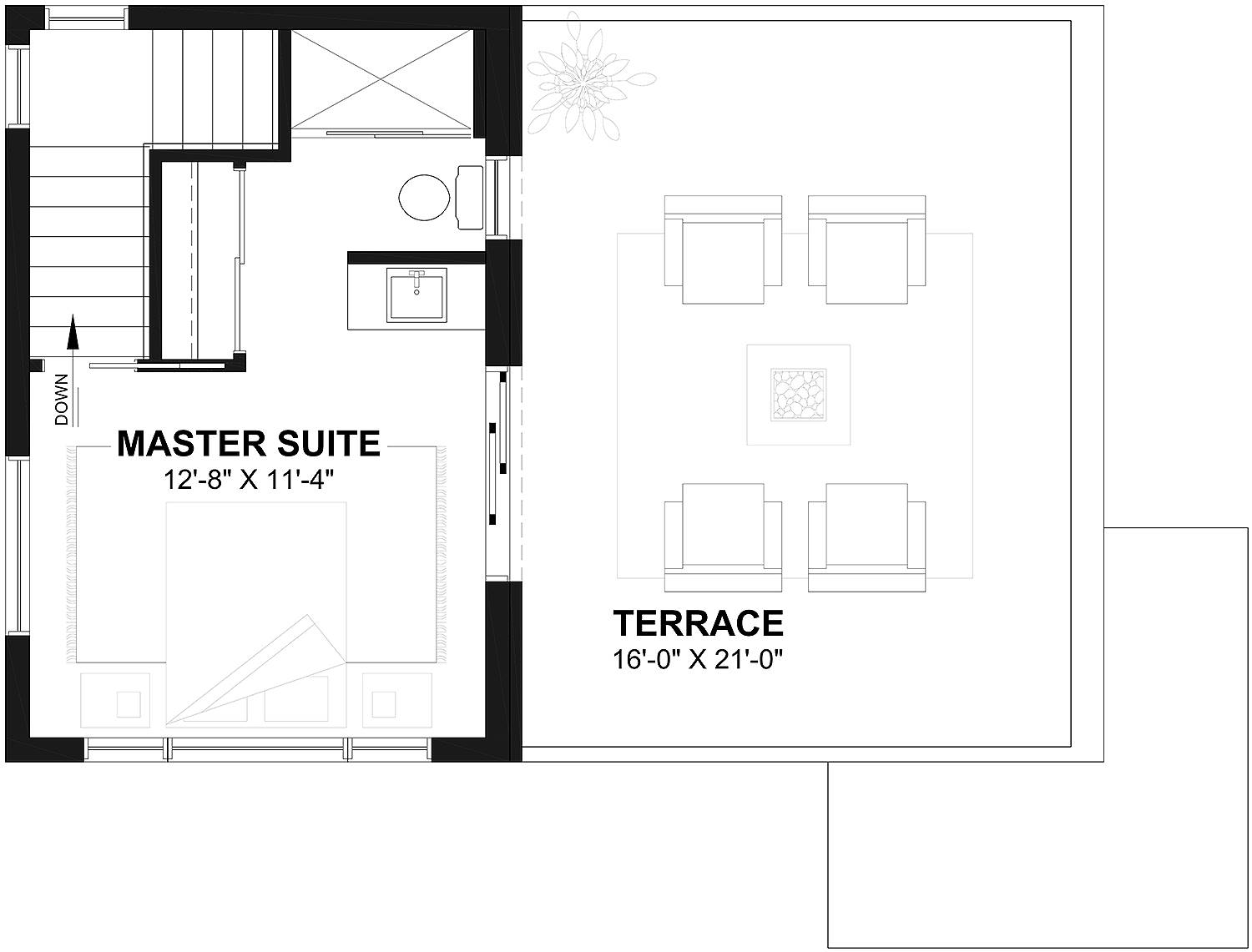

2nd Floor Plan:
2nd Floor Plan
Similar plans: 9692
More plans by this designer/architect
Add to Favorites
Purchase Plans
PLAN DESCRIPTION Modern small house with 2 bedrooms and large deck. This uniquely styled small house with minimalist approach has
been designed to meet the growing demand for contemporary style homes that are above all affordable. Joshua's
unique style with stonework pillars beneath the covered front porch and large deck on the second floor creates an
inviting oasis that optimizes space and does not skimp on elegance. The efficient design of this tiny house is
right at home in an urban environment and the open floor plan of the main living area has a full bathroom on the
main floor and a separate, closed laundry area to house a stacking washer/dryer pair out of site. The second
bedroom is on the main level and the master suite on the upper floor has its own shower room and private access to
the large patio. Many foundation options are available!
Get Your House Plans In Minutes!
NEW PDFs NOW!™ Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
House Plan Pricing
$670.00
$700.00
PDFs NOW!™ $770.00
$795.00
$1,400.00
More details about our plan packages
Foundation Options
$0.00
$395.00
$395.00
Additional Plan Options
$175.00
$50.00
$110.00
$150.00
Best Price Guarantee, learn more
Live Chat  |  Email
Key Features
• Covered Front Porch
• Daylight Basement
• Deck
• Family Room
• Foyer
• Front Porch
• Guest Suite
• Laundry 1st Fl
• Loft / Balcony
• Master Bdrm Upstairs
• None
• Open Floor Plan
• Sitting Area
• Split Bedrooms
• Suited for narrow lot
• Suited for view lot
• Unfinished Space
Plan Details
General House Information
2
Number of Stories:
30' 0"
Width:
21' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Exterior Style
Bungalow
Contemporary
Modern
Number of Rooms
2
Bedrooms:
2
Full Baths:
Finished Square Footage
630 Sq. Ft.
Main Level:
294 Sq. Ft.
Upper Level:
924 Sq. Ft.
Total:
Unfinished Square Footage
336 Sq. Ft.
Patio:
GARAGE
None
Garage Location:
0
Garage Size:
Foundation
Crawlspace
Floating slab (included)
Monolithic slab
House And Ceiling Heights
8
First Floor Ceiling:
8
Second Floor Ceiling:
20' 11"
Maximum House Height:
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
2/12
Primary:
Roof Load
55
Live:
20
Dead:
Insulation (R)
25
Exterior Wall:
0
Interior Wall:
40
Ceiling:
0
Floor:
Number of Rooms
2
Bedrooms:
2
Full Baths:
