House Plan: DFD-9828

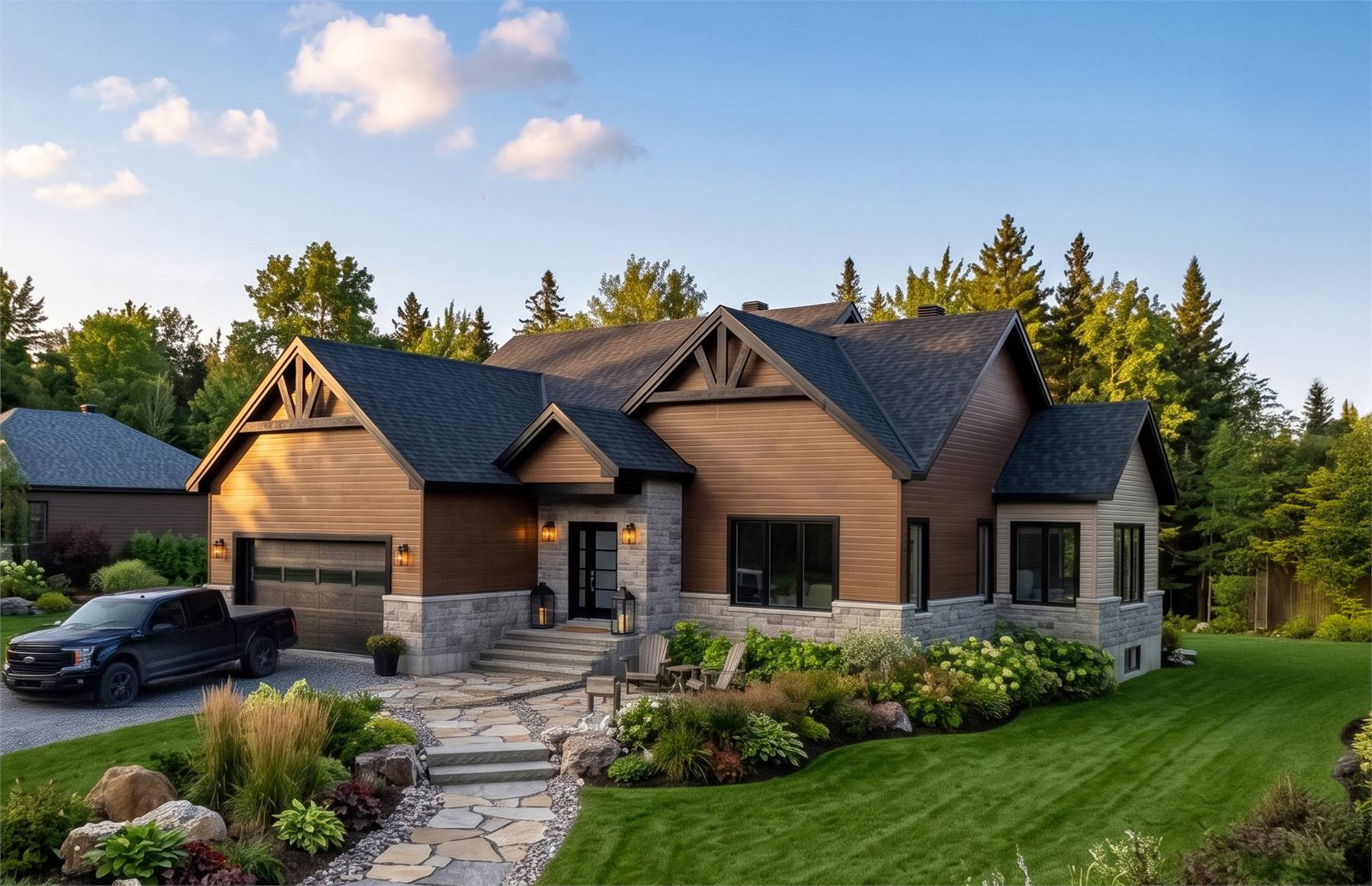

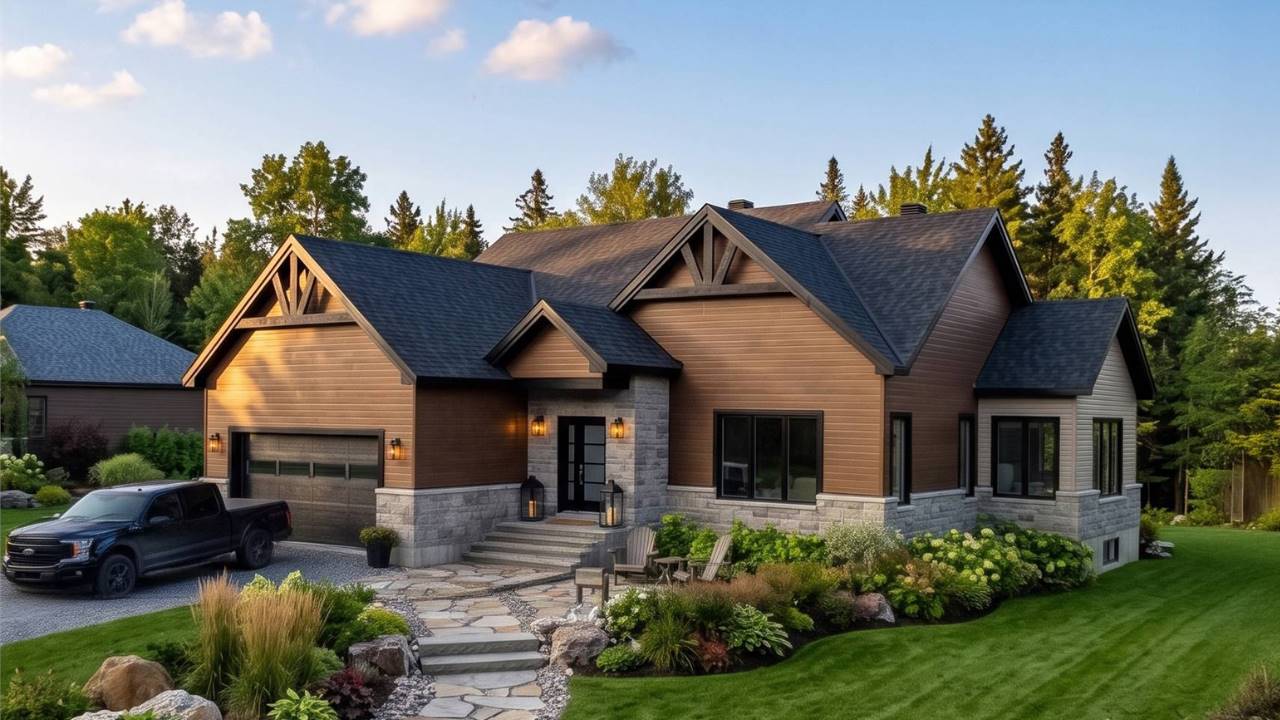

See All 7 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,783
BEDS
3
BATHS
2.5
STORIES
1
CARS
2
HOUSE PLANS SALE
START AT  $1,321.75
For questions and help, live chat, email or call us at 877-895-5299

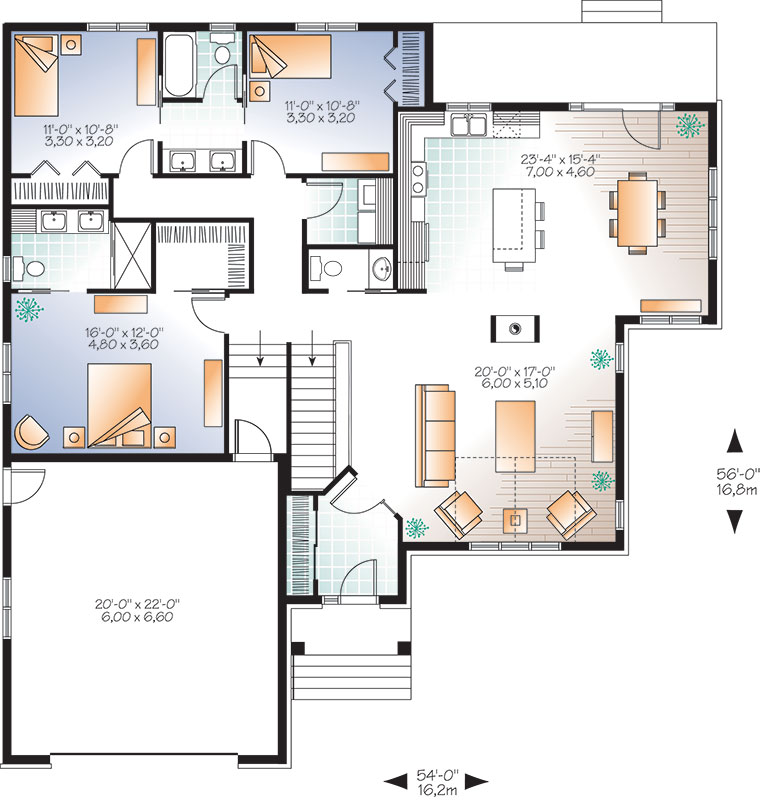

Floor Plans
Click to Zoom In on Floor Plan

House Plan 9828
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,555
Most recommended package

3 sets + PDF


Please allow 3-5 days for delivery
3 sets + PDF $1,690
3 sets + PDF

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $2,555
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1555
FREE SHIPPING
Please allow 3-5 business days for delivery of this plan Please check our PDFs NOW collection for plans that can be downloaded and received immediately or live chat us to help you find a similar plan available now.

Plan Details
See All Details
Finished Square Footage
1,783 Sq. Ft.
Main Level:
1,783 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
1
Number of Stories:
54' 0"
Width:
56' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Unfinished Square Footage
477 Sq. Ft.
Garage:
GARAGE
Front
Garage Location:
2
Garage Size:
Exterior Style
Bungalow
Contemporary
Craftsman
Lake
Modern
Foundation
Crawlspace
Floating slab
Full Unfinished Basement (included)
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
9/12
Primary:
10/12
Dormer:
Roof Load
55
Live:
20
Dead:
Insulation (R)
25
Exterior Wall:
0
Interior Wall:
40
Ceiling:
0
Floor:
House And Ceiling Heights
8
First Floor Ceiling:
28' 9"
Maximum House Height:
Key Features
Attached
Basement
Covered Front Porch
Crawlspace
Deck
Double Vanity Sink
Family Room
Fireplace
Formal LR
Foyer
Front Porch
Front-entry
Great Room
His and Hers Primary Closets
Kitchen Island
Laundry 1st Fl
Primary Bdrm Main Floor
Open Floor Plan
Rear Porch
Sitting Area
Slab
Split Bedrooms
Storage Space
Suited for view lot
Unfinished Space
Walk-in Closet
