Plan Specification: HHF-1005

Total Entire Building: 2,424

Total Living Per Unit: 1,188

Main Level: 564

Second Level: 624

Bedrooms: 2

Baths: 1        Half: 1

Garages:

Width: 36 ft Depth: 34 ft

Foundation: Concrete Slab Foundation, Optional Crawl Space Foundation, Optional Custom Foundation Design


Pricing Options Click here...
Main Plan Photo
© copyright by designer

Plan: HHF-1005

This two bed room duplex is a super energy saving design featuring 2x6 walls; however, it is designed to cost no more to build than conventional construction. Each unit has large and open spaces and a private patio. The master suite has a large walk in closet and the secondary bed room has two closets. The living and dining space is very open and features a wood burning fireplace.

ShareThis
Additional Images

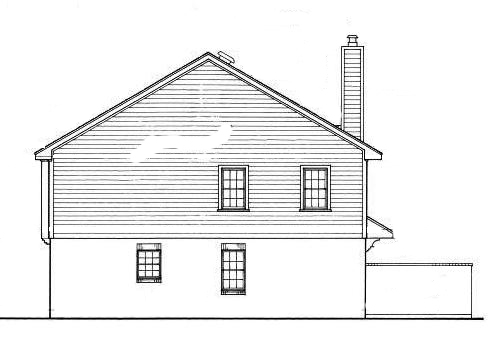

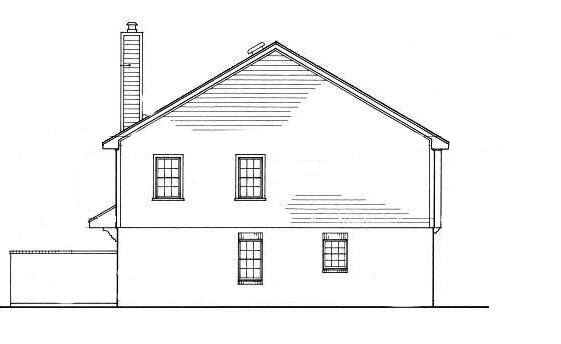

See all 5 photos and rear view
Plan Pricing Packages
HOUSE PLAN SETS
 PDF BID SET  $570.00
 1 set  $574.00
 4 sets  $594.00
 8 sets  $654.00
 12 sets  $704.00
 Reproducible Set  $754.00
 PDF Construction Set - 1 Build  $754.00
 Cad Files  $1,508.00
FOUNDATION OPTIONS
 Concrete Slab Foundation  $0.00
 Optional Crawl Space Foundation  $90.00
 Optional Custom Foundation Design  $300.00
ADDITIONAL PLAN OPTIONS
 Additional Sets  $50.00
 Mirror Reverse Set  $60.00
PROMOTIONAL ITEMS
 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Covered Front Porch
  • Foyer
  • Front Porch
  • None
  • Slab
  • Walk-in Closet
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form

© copyright by designer
First Floor Plan:





© copyright by designer
Upper level floor plan:

Top

Plan Details

General House Information
Width:36' 0"
Depth:34' 0"
Dwelling Number:Duplex

Exterior Style
  • Colonial

Facade
  • Brick
  • Siding

Number of Rooms
Bedrooms:2
Full Baths:1
Half Baths:1

Finished Square Footage
Main Level:564 Sq. Ft.
Upper Level: 624 Sq. Ft.
Total: 1188 Sq. Ft.

Unfinished Square Footage
Porch:48 Sq. Ft.

Garage
  • Garage Size:


Foundation
  • Concrete Slab Foundation
  • Optional Crawl Space Foundation
  • Optional Custom Foundation Design

House And Ceiling Heights
First Floor Ceiling:8
Second Floor Ceiling:8
Maximum House Height:26' 0"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x6

Roof Pitch
Primary:7:12

INSULATION
Exterior Wall:19
Interior Wall:0
Ceiling:38
Floor:19

Number of Rooms
Bedrooms:2
Full Baths:1
Half Baths:1
