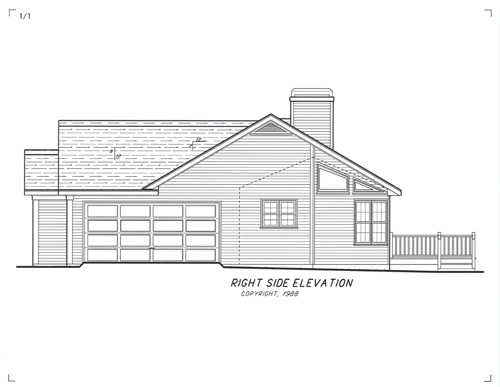

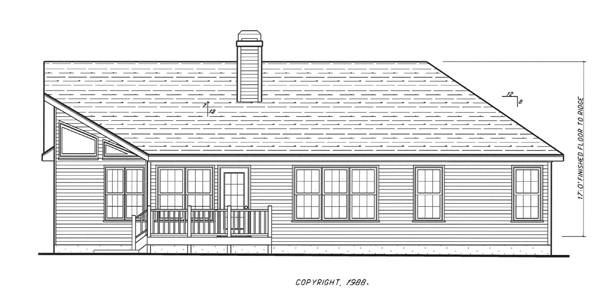

Front Photo Right Elevation Rear Elevation Left Elevation Front Photo 2 Floor Plan
© copyright by designer

Plan: 1612

Plan Specification
Total Square Footage: 1,340
Main Level: 1,340
Bedrooms: 3
Baths: 2 Half: 0
Garages: 2
Width/Depth: 48 ft / 42 ft
Foundation: Slab, if shown as a standard option
Pin It
© copyright by designer
Floor Plan:
Floor Plan



Similar plans: 5842, 6823
More plans by this designer/architect
ShareThis
Add to Favorites
Purchase Plans
PLAN DESCRIPTION This home's cathedral ceiling spans the entire length of the main living areas, including the kitchen/dining area.

A see-through fireplace rises to the peak to divide the living areas in two. Above the angled wall of the dining area, high windows follow the pitch to help flood the space with sunlight. A breezy deck is just steps away.

The master bedroom boasts a tray ceiling and its bath features an over-sized tub/shower.
Get Your House Plans In Minutes!
NEW PDFs Now!™ Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
10% Off All House Plans Through The End Of August !!! see details
House Plan Pricing
PDFs Now!™ $600.00
$675.00
$875.00
PDFs Now!™ $875.00
More details about our plan packages
Foundation Options
$0.00
Additional Plan Options
$175.00
$50.00
$50.00
$60.00
$250.00
$200.00
$250.00
$300.00
Best Price Guarantee, learn more

Live Chat  |  Email
Key Features
• Attached
• Covered Front Porch
• Deck
• Fireplace
• Foyer
• Great Room
• Laundry 1st Fl
• Master Bdrm Main Floor
• Open Floor Plan
• Peninsula / Eating Bar
• Side-entry
• Slab
• Suited for corner lot
• Suited for narrow lot
• Suited for sloping lot
• Vaulted Ceilings
• Walk-in Closet
Plan Details
General House Information
1
Number of Stories:
48' 0"
Width:
42' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Exterior Style
Contemporary
Ranch
Traditional
Number of Rooms
3
Bedrooms:
2
Full Baths:
Finished Square Footage
1,340 Sq. Ft.
Main Level:
1,340 Sq. Ft.
Total:
Unfinished Square Footage
400 Sq. Ft.
Garage:
40 Sq. Ft.
Storage:
30 Sq. Ft.
Porch:
120 Sq. Ft.
Deck:
120 Sq. Ft.
Patio:
GARAGE
Front
Garage Location:
2
Garage Size:
Foundation
Slab
if shown as a standard option
House And Ceiling Heights
8
First Floor Ceiling:
20' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
7/12
Primary:
Roof Load
20
Live:
10
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
3
Bedrooms:
2
Full Baths:
