Plan Specification: HHF-2521

Total Square Footage: 1,486

Main Level: 704

Second Level: 782

Bedrooms: 3

Baths: 2        Half: 1

Garages: 2

Width: 28 ft Depth: 47 ft

Foundation: Basement, Crawlspace


Pricing Options Click here...

Main Plan Photo
© copyright by designer

Plan: HHF-2521

If you're considering building on a very narrow lot, or are looking for a diminutive plan, this design may work perfectly for you. With a total width of only 28 feet, it will fit on most in-fill or city lots. The plan puts living spaces to the back, so that the garage protects the home from street noise. The great room rises a full two stories, has a warming fireplace and is open to the modified U-shaped kitchen and the dining area. A half-bath, tucked behind the garage, is a thoughtful convenience. Bedrooms on the second floor include two family bedrooms and a master suite. Both the main bath and the master bath have vanities with two sinks. The master bath also has a linen closet; a walk-in linen closet sits in the hallway. Notice also that the laundry area is on the second floor.

ShareThis
Additional Images

Plan Pricing Packages
HOUSE PLAN SETS

 Basic Package    $700.00
 Construction Package    $800.00
 Modification Package: PDF    $920.00
 Modification Package: CAD    $1,550.00
FOUNDATION OPTIONS

 Crawlspace  $0.00
 Basement  $195.00
ADDITIONAL PLAN OPTIONS

 Additional Sets  $40.00
 Full Reverse Sets  $100.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Basement
  • Country Kitchen
  • Crawlspace
  • Double Vanity Sink
  • Fireplace
  • Foyer
  • Front Porch
  • Great Room
  • Laundry 2nd Fl
  • Master Bdrm Upstairs
  • Open Floor Plan
  • Peninsula / Eating Bar

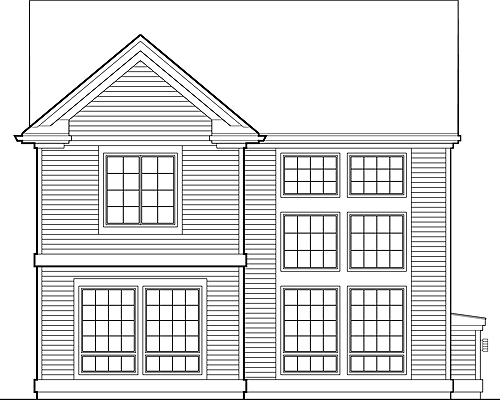

  • rear view
  • Upstairs utility
  • Vaulted Ceilings
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
First Floor Plan:





© copyright by designer
Second Floor Plan:

Top

Plan Details

General House Information
Number of Stories:2
Width:28' 0"
Depth:47' 0"
Dwelling Number:Single
Bonus Access:None

Exterior Style
  • Traditional
  • Cottage
  • Craftsman
  • Vacation
  • PDFs Fast!

Number of Rooms
Bedrooms:3
Full Baths:2
Half Baths:1

Finished Square Footage
Main Level:704 Sq. Ft.
Upper Level: 782 Sq. Ft.
Total: 1486 Sq. Ft.

Unfinished Square Footage
Garage:420 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:2


Foundation
  • Basement
  • Crawlspace

House And Ceiling Heights
First Floor Ceiling:8
Second Floor Ceiling:8
Maximum House Height:27' 0"

Framing Information
Roof Framing:Truss
Exterior Wall Framing:2x6

Roof Pitch
Primary:8/12
Secondary:10/12

Roof Load
Live:25
Dead:15
Wind:0

INSULATION
  • Per IRC Climate Zones

Number of Rooms
Bedrooms:3
Full Baths:2
Half Baths:1
