Plan Specification: HHF-2768

Total Entire Building: 2,394

Total Living Per Unit: 1,197

Main Level: 596

Second Level: 601

Bedrooms: 2

Baths: 1        Half: 1

Garages: 1

Width: 20 ft Depth: 53 ft

Foundation: Basement, Crawlspace


Pricing Options Click here...

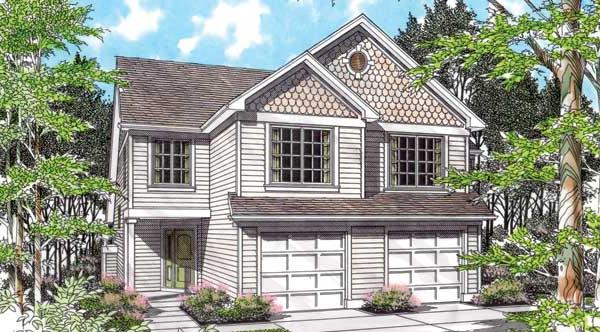

Main Plan Photo
© copyright by designer

Plan: HHF-2768

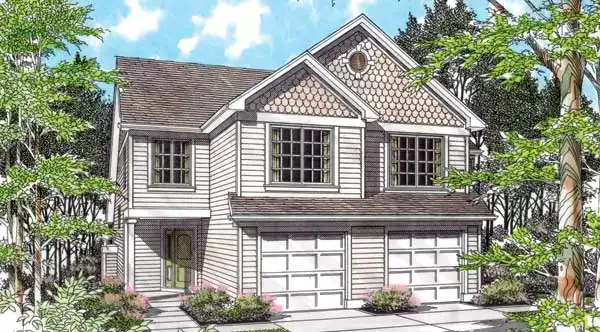

You have to look close to discern that this structure is not a single unit, but rather a duplex with nearly identical mirror-image sides. The exterior is graceful with cedar shingles, horizontal siding and multi-pane windows. Each side opens with a single-car garage and a covered front porch protecting an angled entry.
The laundry room, a half-bath and the garage access are immediately to the left of the entry; a coat closet is on the right. A vaulted great room with fireplace and eating space sits to the back of the plan--next to the modified U-shaped kitchen. A large pantry and a snack counter make the kitchen efficient. The upper level holds two bedrooms - one is vaulted - and a cozy den opening through double doors. Both bedrooms share a full bath.

ShareThis
Additional Images

Plan Pricing Packages
HOUSE PLAN SETS

 Basic Package    $1,000.00
 Construction Package    $1,100.00
 Modification Package: PDF    $1,495.00
 Modification Package: CAD    $2,300.00
FOUNDATION OPTIONS

 Crawlspace  $0.00
 Basement  $325.00
ADDITIONAL PLAN OPTIONS

 Additional Sets  $40.00
 Full Reverse Sets  $100.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Basement
  • Crawlspace
  • Fireplace
  • Foyer
  • Front Porch
  • Great Room
  • Home Office
  • Laundry 1st Fl
  • Master Bdrm Upstairs
  • Open Floor Plan
  • Peninsula / Eating Bar
  • Vaulted Ceilings
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer

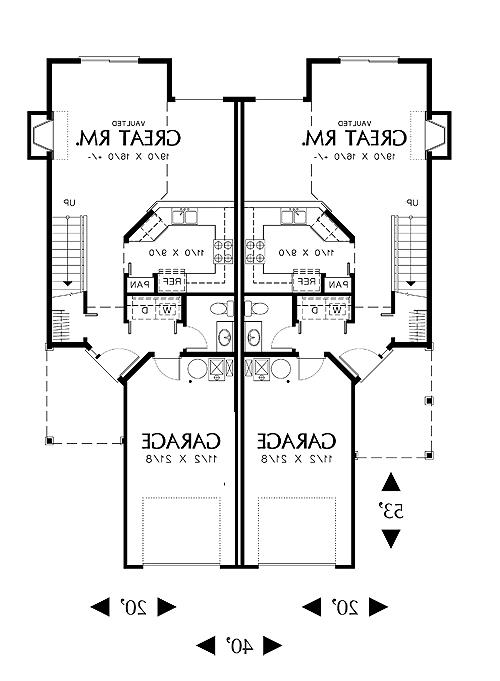

First Floor Plan:





© copyright by designer

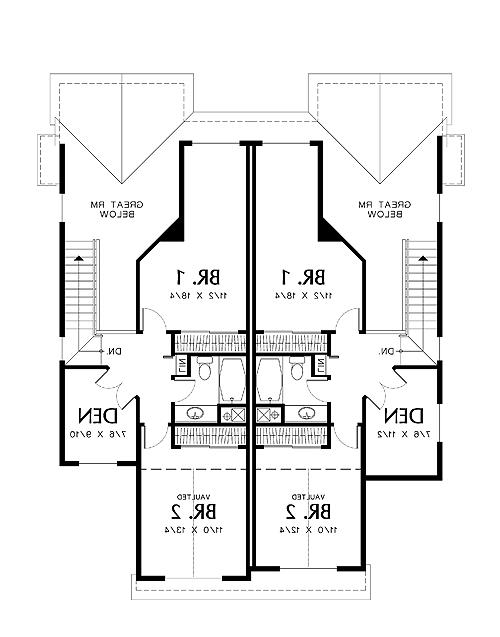

Second Floor Plan:

Top

Plan Details

General House Information
Number of Stories:2
Width:20' 0"
Depth:53' 0"
Dwelling Number:Duplex
Bonus Access:None

Exterior Style
  • Traditional
  • PDFs Fast!

Number of Rooms
Bedrooms:2
Full Baths:1
Half Baths:1

Finished Square Footage
Main Level:596 Sq. Ft.
Upper Level: 601 Sq. Ft.
Total: 1197 Sq. Ft.

Unfinished Square Footage
Garage:273 Sq. Ft.
Porch:73 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:1


Foundation
  • Basement
  • Crawlspace

House And Ceiling Heights
First Floor Ceiling:Varies
Second Floor Ceiling:Varies
Maximum House Height:28' 0"

Framing Information
Roof Framing:Truss
Exterior Wall Framing:2x6

Roof Pitch
Primary:9/12

Roof Load
Live:25
Dead:15
Wind:80

INSULATION
  • Per IRC Climate Zones

Number of Rooms
Bedrooms:2
Full Baths:1
Half Baths:1
