Plan Specification: HHF-2778

Total Entire Building: 1,492

Total Living Per Unit: 1,492

Main Level: 1,497

Bedrooms: 3

Baths: 2

Garages: 2

Width: 38 ft Depth: 61 ft

Foundation: Crawlspace, Slab


Pricing Options Click here...

Main Plan Photo
© copyright by designer

Plan: HHF-2778

Thoughtfully designed duplexes, these units offer two possibilities in multi-family housing.
Unit A is slightly smaller than Unit B, yet holds three bedrooms and vaulted living and dining rooms. A corner fireplace warms the living area; sliding glass doors in the dining room lead outside. The modified U-shaped kitchen is also vaulted as is the master bedroom. Bedrooms 2 and 3 share a full bath with linen closet. The master salon has a private bath with dual sinks and a compartmented toilet. A two-car garage shields the kitchen and master suite from street noise. The laundry room opens from a doorway situated between the pantry and the garage access.
Unit B is very similar to Unit A, but has a one-car garage and a smaller kitchen area. Its living area is very spacious, however, and includes the same corner fireplace and vaulted ceilings as in Unit A.

ShareThis

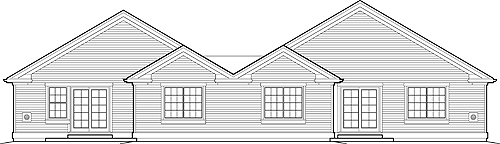

Additional Images

Plan Pricing Packages
HOUSE PLAN SETS

 Basic Package    $1,000.00
 Construction Package    $1,100.00
 Modification Package: PDF    $1,495.00
 Modification Package: CAD    $2,300.00
FOUNDATION OPTIONS

 Crawlspace  $0.00
 Slab  $160.00
ADDITIONAL PLAN OPTIONS

 Additional Sets  $40.00
 Full Reverse Sets  $100.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Country Kitchen
  • Crawlspace
  • Double Vanity Sink
  • Fireplace
  • Foyer
  • Great Room
  • Laundry 1st Fl
  • Master Bdrm Main Floor
  • No Porch
  • Nook / Breakfast Area
  • Open Floor Plan
  • Slab
  • Vaulted Ceilings
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
First Floor Plan:




Top

Plan Details

General House Information
Number of Stories:1
Width:38' 0"
Depth:61' 0"
Dwelling Number:Duplex
Bonus Access:None

Exterior Style
  • Traditional
  • Cottage
  • Country
  • PDFs Fast!

Number of Rooms
Bedrooms:3
Full Baths:2

Finished Square Footage
Main Level:1497 Sq. Ft.
Total: 1492 Sq. Ft.

Unfinished Square Footage
Garage:396 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:2


Foundation
  • Crawlspace
  • Slab

House And Ceiling Heights
First Floor Ceiling:VARIES
Maximum House Height:20' 0"

Framing Information
Roof Framing:Truss
Exterior Wall Framing:2x6

Roof Pitch
Primary:7/12

Roof Load
Live:25
Dead:15
Wind:0

INSULATION
Exterior Wall:21
Interior Wall:0
Ceiling:38
Floor:30

Number of Rooms
Bedrooms:3
Full Baths:2
