Plan: 3107

This 1488 sq. ft. home is one of our Lifetime Series:

A Lifetime Home...
Why It's Extraordinary...
Why It's Green:

1) Thinking Outside the Box... This unique "Design in a Box" is a result of "Outside the Box" Thinking...Call it a Box; Call it Square, but with this design, Square is Cool...and Warm, and very energy efficient and environmentally friendly.
We call it "The Smart Box."

2) 6" SIP Exterior Walls are recommended in many designs, providing enhanced energy performance over
conventional framing.

3) A Multi-Purpose Storage Building...As a final component of the structure, the cost effective storage building may be built by adjusting its size to utilize as many of the remaining scrap materials as possible. This will also provide storage space for remaining scrap materials to be stored, for use in future projects or repairs. This would significantly reduce the trash and scraps added to our land fills.

4) Both Active and Passive Energy-Saving Technolgies are accomodated in these designs:

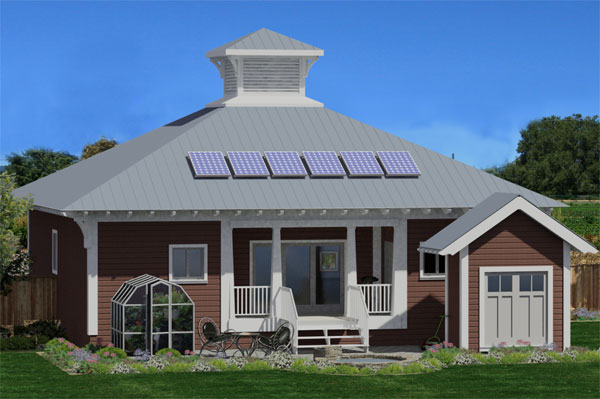

Active: The East Facing Roof provides significant partially concealed area for both photovoltaic and water heating panels. A water source heat pump, open or sealed, is recommended where feasible, minimizing the need for electric resistance, gas & oil heating. "Wind-Finders", an innovation hidden within the Cupola, will direct air flow throughout the home for selectable living space ventilation, attic ventilation, or wind turbine generators. Ductwork in conditioned Space reduces demands of climate control systems.
Passive: Increased Glass on South Side provides heat gain in winter daylight hours, stored in dark flooring of effected rooms for release in cooler evening hours. These windows are shaded by retractable awnings in hot summer seasons. Permeable tile field manages drainage within outdoor living area and provides easy access to field lines for sealed Water Source Heat Pump system. "Breathable" Roof underlayment system allows air to flow between the metal roof and decking to keep the attic cooler.

5) Energy Star Appliances are recommended throughout as well as Water Saving Fixtures.
6) "Primary Point-of-Use" (PPOU)Tankless Water Heaters reduce wasted water during warm-up and heat water only on demand.

7) Skylights provide additional natural light in the central Family Room.

8) GreenHouse...Plants absorb CO2, produce Oxygen, are a major part of our diet, add beauty to our environment...Gardening can be an enjoyable and rewarding endeavor.

9) Reading Area...Growing and expanding one's most valuable asset through reading is less time expending energy on electronic media and entertainment.

Final Comments from the Designer...While many recycled, environmentally friendly materials, products and technologies are shown and recommended, the Designer is also sensitive to one's own "Green Assets" and recommends a Cost/Benefit Analysis of those items before purchase and implementation. Further, careful consideration should be given to construction location, climate and locally available materials, resources and service providers.

Pin It
More plans by this designer/architect
ShareThis
Purchase Plans
Plan Specification
Total Square Footage: 1,488
Main Level: 1,488
Bedrooms: 3
Baths: 2 Half: 1
Garages: 0
Width/Depth: 42 ft / 42 ft
Foundation: Crawl Space, Optional Basement Foundation (Please allow 2-3 Days for Delivery), Slab Foundation (Please allow 2-3 Days for Delivery)
ENERGY STAR
Get Your House Plans In Minutes!
NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
House Plan Pricing
$625.00
PDFs Now! $825.00
$825.00
$875.00
$925.00
$1,300.00
More details about our plan packages
Foundation Options
$0.00
$250.00
$250.00
Additional Plan Options
$275.00
$40.00
$175.00
Promotional Items
$25.00
Size:
Color:
Best Price Guarantee, learn more
Live Chat  |  Email
Key Features
  • Covered Front Porch
  • Covered Rear Porch
  • Crawlspace
  • Family Room
  • Fireplace
  • Master Bdrm Main Floor
  • Separate Tub and Shower
  • Vaulted Ceilings
  • Walk-in Pantry
Plan Details

General House Information
Number of Stories:1
Width:42' 0"
Depth:42' 0"
Dwelling Number:Single

Exterior Style
  • Cottage
  • Vacation
  • Beach
  • Southern
  • North Carolina

Number of Rooms
Bedrooms:3
Full Baths:2
Half Baths:1

Finished Square Footage
Main Level:1488 Sq. Ft.
Total: 1488 Sq. Ft.

Garage
  • Garage Type:
Garage Size:0

Foundation
  • Crawl Space
  • Optional Basement Foundation (Please allow 2-3 Days for Delivery)
  • Slab Foundation (Please allow 2-3 Days for Delivery)

House And Ceiling Heights
First Floor Ceiling:9
Maximum House Height:27' 9"

Framing Information
Roof Framing:Truss
Exterior Wall Framing:2x6

Roof Pitch
Primary:6/12

INSULATION
Exterior Wall:0
Interior Wall:0
Ceiling:0
Floor:0

Number of Rooms
Bedrooms:3
Full Baths:2
Half Baths:1
