Plan Specification: HHF-3156

Total Square Footage: 1,779

ENERGY STAR

Main Level: 1,779

Bedrooms: 3

Baths: 2

Garages: 2

Width: 42 ft Depth: 79 ft

Foundation: Crawl Space


Pricing Options Click here...

Main Plan Photo
© copyright by designer

Plan: HHF-3156

This 1779 sq. ft. Cottage is one of our Lifetime Series:

A Lifetime Home...
Why It's Extraordinary...
Why It's Green:

1) Design Modules...Offer tremendous flexibility in this home design. Simple, even dimensions, central bearing points, and ease of size reduction or expansion offer innovative solutions to various homeowner needs.

Thinking Outside the Box...

Modifications: Design consideration is given to window and door openings, chases, etc. to easily accommodate future changes, minimizing teardown and reducing cost and waste.

You Have Options: Optional Design Modules may be offered to both enhance this design and meet today's rapidly changing, diverse needs.

6" SIP Exterior Walls are used in this design, providing enhanced energy performance over conventional framing.

Interior walls are faced with "Air-Renew" Drywall by CertainTeed to enhance air quality within this home.

2) Both Active and Passive Energy-Saving Technologies are accommodated in this design:

Active: South Facing Roof provides significant partially concealed area for both photovoltaic and water heating panels. A water source heat pump, open or sealed, is recommended where feasible, minimizing the need for electric resistance, gas & oil heating. A "Heat Transfer Mass" is provided by the water reservoir located in the garage. This reservoir also serves irrigation needs.

Hidden within the Cupola are two available options:

1) Gale Vertical Axis Wind Generator for power generation or;
2) "Wind-Finder" which will automatically rotate to direct airflow throughout the home for selectable living space or attic ventilation. Ductwork located in conditioned Space reduces demands of climate control systems.

Passive: A 'TURF-MAT' 20" sq. Grass Roof Tile System allows custom layout of 'The Green'. A hidden roof cistern provides irrigation for the grass tile, with overflow direct-able to the garage water reservoir. This system also replaces a great deal of landscape, whose benefits are traditionally sacrificed to the construction process.

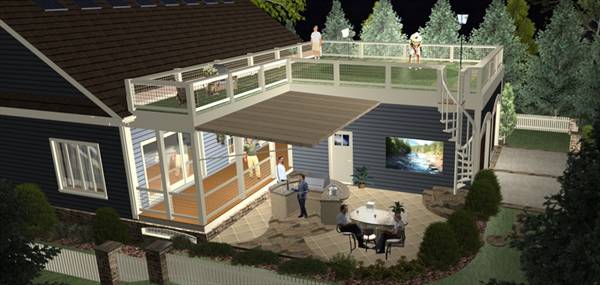

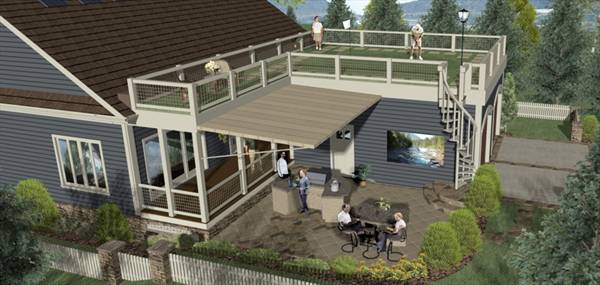

The intent of the narrow, multi-use areas design is to maximize living spaces, both inside and out while minimizing the disturbance to the natural landscape. Covered porches provide shade and abundant outdoor areas. A large retractable awning provides additional shade for comfortable outdoor living, further reducing energy demands. The porches and retractable awning shade numerous windows in hot summer seasons. A Permeable tile field manages drainage within outdoor living area and provides easy access to supplemental field lines for a sealed Water Source Heat Pump system. A "Breathable" Roof underlayment system allows air to flow between roof tiles and decking to keep attic cooler.

3) Energy Star Appliances are recommended throughout as well as Water Saving Fixtures.

4) "Primary Point-of-Use" (PPOU) Tankless Water Heaters reduce wasted water during warm-up and heat water only on demand.

5) Skylights with foil-faced ducts routed from the dormer are used to provide light in areas without sufficient natural light.

6) Reading Areas...Growing and expanding one's most valuable asset through reading is less time expending energy on electronic media and entertainment.

Final Comments from the Designer...While many recycled, environmentally friendly materials, products and technologies are shown and recommended, the Designer is also sensitive to one's own "Green Assets" and recommends a Cost/Benefit Analysis of those items before purchase and implementation. Further, careful consideration should be given to construction location, climate and locally available materials, resources and service providers.



ShareThis
Additional Images

Plan Pricing Packages
HOUSE PLAN SETS

 PDF Bid Set    $700.00
 Five Sets    $825.00
 PDF File    $900.00
 Eight Sets    $900.00
 Reproducible Set    $975.00
 CAD File    $1,400.00
FOUNDATION OPTIONS

 Crawl Space  $0.00
ADDITIONAL PLAN OPTIONS

 ENERGY STAR® Plan Package  $275.00
 Additional Sets  $45.00
 Right Reading Reverse  $175.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Crawlspace
  • Rear-entry
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
First Floor Plan:





© copyright by designer
Upper Level Floorplan:

Top

Plan Details

General House Information
Number of Stories:1
Width:42' 0"
Depth:79' 3"
Dwelling Number:Single
Bonus Access:None

Exterior Style
  • Ranch
  • Country
  • Craftsman

Number of Rooms
Bedrooms:3
Full Baths:2

Finished Square Footage
Main Level:1779 Sq. Ft.
Total: 1779 Sq. Ft.

Garage
  • Garage Type:
Garage Size:2


Foundation
  • Crawl Space

House And Ceiling Heights
First Floor Ceiling:9
Maximum House Height:29' 3"

Framing Information
Roof Framing:Truss
Exterior Wall Framing:2x6

Roof Pitch
Primary:8/12

INSULATION
Exterior Wall:0
Interior Wall:0
Ceiling:0
Floor:0

Number of Rooms
Bedrooms:3
Full Baths:2
