Details |  Save | See Reverse | 3D | Modify | Build Cost | Back to Search
Front Elevation Rear Elevation Lower Floorplan Upper Floorplan Roof Plan
© copyright by designer

Plan: 3159

Plan Specification
Total Square Footage: 1,164
Second Level: 1,164
Bedrooms: 1
Baths: 1 Half: 0
Garages: 3
Width/Depth: 24 ft / 64 ft
Foundation: Slab Foundation (Please allow 2-3 Days for Delivery)
ENERGY STAR APPROVED
Pin It
© copyright by designer

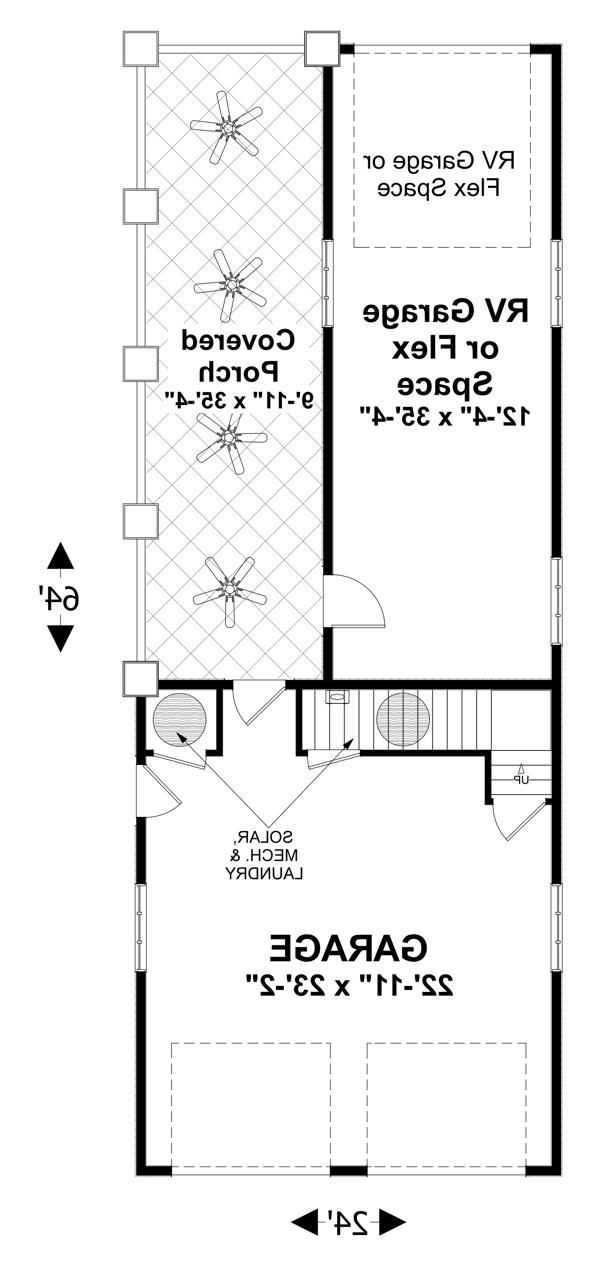

Lower Floorplan:
Lower Floorplan
Need to make changes?
Call for a free modification quote
877-895-5299 or LIVE CHAT NOW
or use this quote form
© copyright by designer

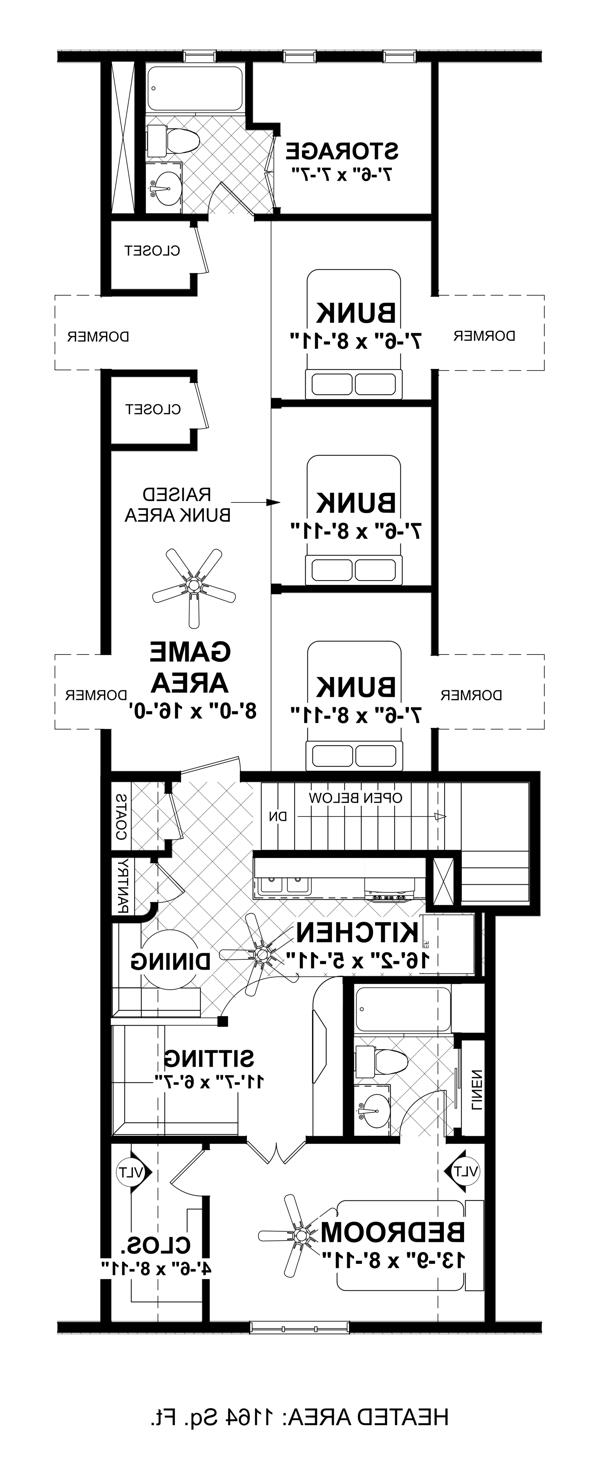

Upper Floorplan:
Upper Floorplan
© copyright by designer

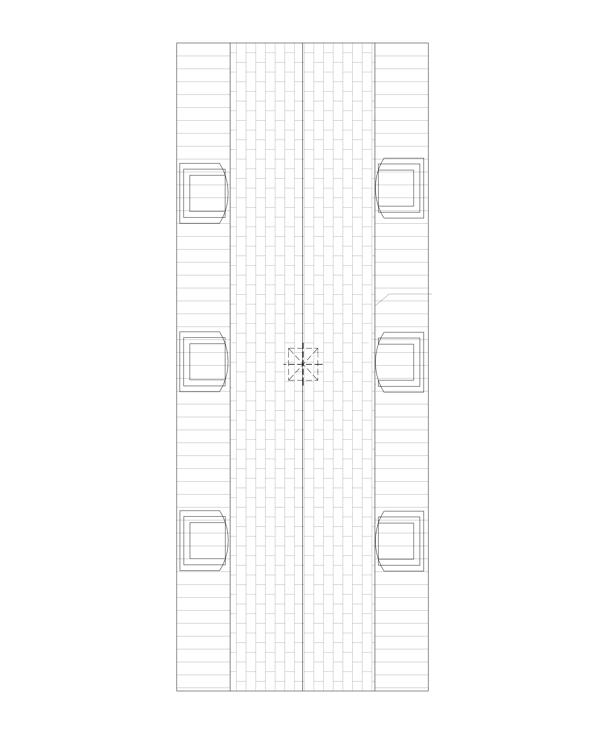

Roof Plan:
Roof Plan
More plans by this designer/architect
ShareThis
Add to Favorites
Purchase Plans
PLAN DESCRIPTION This 1164 sq. ft. Cottage is one of our Lifetime Series:

A Lifetime Home...
Why It's Extraordinary...
Why It's Green:

1) Utility Independence

This two-fold initiative will enable development in remote locations and provide additions to current homes for supplemental, or even primary utility services. This practical and affordable Utility Independence Series provides new opportunities for vacation retreats, private quarters hidden in remote natural areas, and Freedom to live virtually wherever you choose without sacrificing comfort or convenience.

2) Learning from the Past, Planning for the Future...

With each new day, we seem to be confronted with issues of depleting resources or other environmental concerns. This series of designs offers a proactive opportunity to reverse the trend, to use emerging technologies, to become increasingly self-sufficient and become a part, not of the problem, but of the solution.

3) The Shadow Mountain Chalet:

Let your cares and concerns melt away in this luxurious, yet uncommon design. Whether it becomes a compliment to your current home, or the Retreat you've always envisioned, this chalet provides abundant possibilities. Its Gambrel roof provides a perfect balance of aesthetics and functionality. With utility Independence as its focus, features such as Dow Powerhouse shingles, a Gale vertical axis wind turbine hidden within its lovely cupola, and other active and passive energy technologies abound.

The unique floor plan provides both a private Owner's Suite and abundant raised bunks with entertainment space for family or guests. The Suite features a walk-in closet and direct access to the bath. The entertainment center is easily viewable from the sofa or the banquette. The kitchen is an efficiency design and includes a spacious pantry.

The Lower level provides storage for an array of solar & mechanical equipment, including a tankless water heater and optional laundry. There is abundant space for an RV, Boat or even additional living or storage area. The irresistible oversized covered side porch provides abundant space to entertain and enjoy the evening breeze.
House Plan Pricing
$525.00
$725.00
$725.00
$775.00
$825.00
$1,000.00
More details about our plan packages
Foundation Options
$0.00
Additional Plan Options
$0.00
$30.00
$175.00
Best Price Guarantee, learn more
Live Chat  |  Email
Key Features
• Detached
• Rear-entry
• Slab
Plan Details
General House Information
2
Number of Stories:
24' 0"
Width:
64' 0"
Depth:
Garage
Dwelling Number:
Exterior Style
Cottage
Country
Craftsman
Number of Rooms
1
Bedrooms:
1
Full Baths:
Finished Square Footage
1,164 Sq. Ft.
Upper Level:
1,164 Sq. Ft.
Total:
GARAGE
Front
Garage Location:
3
Garage Size:
Foundation
Slab Foundation (Please allow 2-3 Days for Delivery)
House And Ceiling Heights
10' 6"
First Floor Ceiling:
8
Second Floor Ceiling:
22' 6"
Maximum House Height:
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
14/12
Primary:
6/12
Secondary:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
Number of Rooms
1
Bedrooms:
1
Full Baths:
