Plan Specification: HHF-3159

Total Square Footage: 1,164

ENERGY STAR

Second Level: 1,164

Bedrooms: 1

Baths: 1

Garages: 3

Width: 24 ft Depth: 64 ft

Foundation: Slab Foundation (Please allow 2-3 Days for Delivery)


Pricing Options Click here...

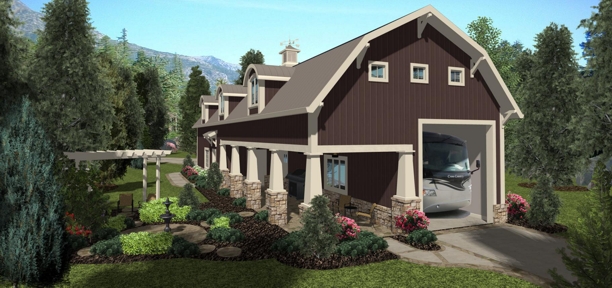

Main Plan Photo
© copyright by designer

Plan: HHF-3159

This 1164 sq. ft. Cottage is one of our Lifetime Series:

A Lifetime Home...
Why It's Extraordinary...
Why It's Green:

1) Utility Independence

This two-fold initiative will enable development in remote locations and provide additions to current homes for supplemental, or even primary utility services. This practical and affordable Utility Independence Series provides new opportunities for vacation retreats, private quarters hidden in remote natural areas, and Freedom to live virtually wherever you choose without sacrificing comfort or convenience.

2) Learning from the Past, Planning for the Future...

With each new day, we seem to be confronted with issues of depleting resources or other environmental concerns. This series of designs offers a proactive opportunity to reverse the trend, to use emerging technologies, to become increasingly self-sufficient and become a part, not of the problem, but of the solution.

3) The Shadow Mountain Chalet:

Let your cares and concerns melt away in this luxurious, yet uncommon design. Whether it becomes a compliment to your current home, or the Retreat you've always envisioned, this chalet provides abundant possibilities. Its Gambrel roof provides a perfect balance of aesthetics and functionality. With utility Independence as its focus, features such as Dow Powerhouse shingles, a Gale vertical axis wind turbine hidden within its lovely cupola, and other active and passive energy technologies abound.

The unique floor plan provides both a private Owner's Suite and abundant raised bunks with entertainment space for family or guests. The Suite features a walk-in closet and direct access to the bath. The entertainment center is easily viewable from the sofa or the banquette. The kitchen is an efficiency design and includes a spacious pantry.

The Lower level provides storage for an array of solar & mechanical equipment, including a tankless water heater and optional laundry. There is abundant space for an RV, Boat or even additional living or storage area. The irresistible oversized covered side porch provides abundant space to entertain and enjoy the evening breeze.

ShareThis
Black Friday Pre-Sale, 10% off House Plans! see details
Additional Images

Plan Pricing Packages
HOUSE PLAN SETS

 PDF Bid Set    $525.00
 Five Sets    $650.00
 Eight Sets    $725.00
 PDF File    $725.00
 Reproducible Set    $775.00
 CAD File    $1,000.00
FOUNDATION OPTIONS

 Slab Foundation (Please allow 2-3 Days for Delivery)  $0.00
ADDITIONAL PLAN OPTIONS

 ENERGY STAR® Plan Package  $275.00
 Additional Sets  $30.00
 Right Reading Reverse  $175.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Detached
  • Rear-entry
  • Slab
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
Lower Floorplan:





© copyright by designer
Upper Floorplan:


© copyright by designer
Roof Plan:

Top

Plan Details

General House Information
Number of Stories:2
Width:24' 0"
Depth:64' 0"
Dwelling Number:Garage

Exterior Style
  • Cottage
  • Country
  • Craftsman

Number of Rooms
Bedrooms:1
Full Baths:1

Finished Square Footage
Upper Level: 1164 Sq. Ft.
Total: 1164 Sq. Ft.

Garage
  • Garage Type:
Garage Size:3


Foundation
  • Slab Foundation (Please allow 2-3 Days for Delivery)

House And Ceiling Heights
First Floor Ceiling:10' 6"
Second Floor Ceiling:8
Maximum House Height:22' 6"

Framing Information
Roof Framing:Truss
Exterior Wall Framing:2x6

Roof Pitch
Primary:14/12
Secondary:6/12

INSULATION
Exterior Wall:0
Interior Wall:0
Ceiling:0
Floor:0

Number of Rooms
Bedrooms:1
Full Baths:1
