Plan Specification: HHF-3162

Total Square Footage: 975

ENERGY STAR

Main Level: 975

Bedrooms: 3

Baths: 2

Garages: 0

Width: 36 ft Depth: 40 ft

Foundation: Crawl Space Foundation, Optional Concrete Slab Foundation, Optional Custom Foundation Design


Pricing Options Click here...

Main Plan Photo
© copyright by designer

Plan: HHF-3162

This delightful 3-bedroom cottage is designed to drastically cut heating and cooling cost but without adding substantial building cost. Among the many energy saving features:
1. Insulated doors and windows
2. 2x6 exterior walls with R19 insulation
3. Modified Roof Design to accommodate 12 R38 ceiling insulation
4. Positive vapor barrier to enhance comfort control
5. Centrally located plumbing and heating/AC for added efficiency
6. Small footprint to minimize land and building cost
7. Properly oriented, this home is designed to provide natural solar gain
8. New and improved framing techniques that allow previously un-insulated areas to become insulated.
9. All heat/AC ductwork is located within the heated area to maximize efficiency but all the ducts are hidden from view.
This award-winning plan was recently recognized by ENERGY STAR as one of the most efficient home plans. The wise use of space creates a fully functional and spacious home tucked within a very compact space. The kitchen is full size and boasts a large floor to ceiling pantry. The island is constructed on casters so that it can be moved to create additional space. The master suite has a dressing room, full bath, large walk in closet and easy access to the utility room. The secondary bedrooms have large closets and private access to the bathroom. All bathrooms feature a spacious linen closet. An enlarged rear entry has a French door with sidelights that opens on to a spacious deck that is perfect for entertaining.

ShareThis
$50 off any House Plan through midnight tonight! see details

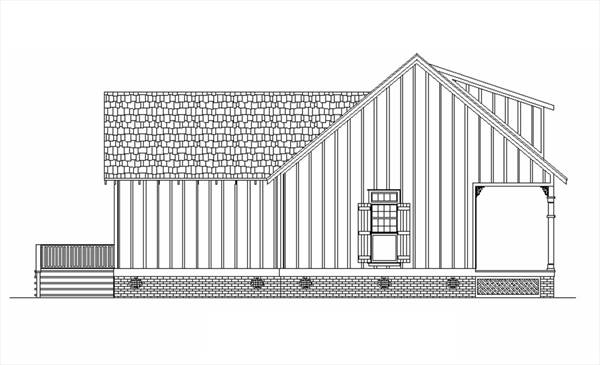

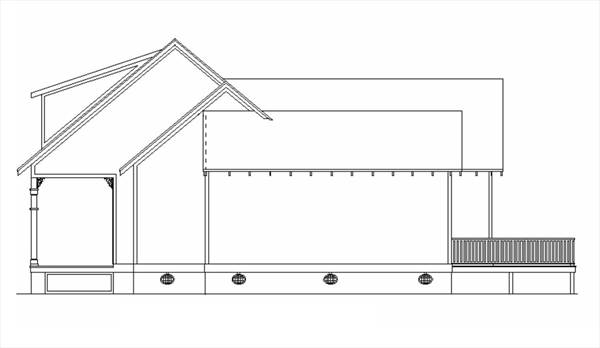

Additional Images


Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Plan Pricing Packages
HOUSE PLAN SETS

 PDF BID SET   PDFs Now!   $570.00
 1 set    $574.00
 4 sets    $594.00
 8 sets    $654.00
 12 sets    $704.00
 Reproducible Set    $754.00
 PDF Construction Set - 1 Build   PDFs Now!   $754.00
 Cad Files    $1,508.00
FOUNDATION OPTIONS

 Crawl Space Foundation PDFs Now! available   $0.00
 Optional Concrete Slab Foundation  $90.00
 Optional Custom Foundation Design PDFs Now! available   $300.00
ADDITIONAL PLAN OPTIONS

 ENERGY STAR® Plan Package  $275.00
 Optional Garage Plan  $100.00
 Additional Sets  $50.00
 Mirror Reverse Set  $60.00
 FULL REVERSE PLANS ON REQUEST  $125.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Crawlspace
  • Deck
  • Dining Room
  • Front Porch
  • None
  • Open Floor Plan
  • Slab
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
10% off ALL online house plan packages! Promo Code: Thanks2011

© copyright by designer
Suggested Furniture Layout:





© copyright by designer
Floor Plan:

Top

Plan Details

General House Information
Number of Stories:1
Width:36' 0"
Depth:40' 0"
Dwelling Number:Single
Bonus Access:None

Exterior Style
  • Cottage
  • Country
  • Vacation
  • Farm House

Facade
  • Siding

Number of Rooms
Bedrooms:3
Full Baths:2

Finished Square Footage
Main Level:975 Sq. Ft.
Total: 975 Sq. Ft.

Unfinished Square Footage
Porch:160 Sq. Ft.
Deck:221 Sq. Ft.

Garage
  • Garage Type:
Garage Size:0


Foundation
  • Crawl Space Foundation
  • Optional Concrete Slab Foundation
  • Optional Custom Foundation Design

House And Ceiling Heights
First Floor Ceiling:9
Maximum House Height:24' 0"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x6

Roof Pitch
Primary:10:12
Secondary:4:12
Dormer:4:12

INSULATION
Exterior Wall:19
Interior Wall:0
Ceiling:38
Floor:19

Number of Rooms
Bedrooms:3
Full Baths:2
