Plan Specification: HHF-3236

Total Square Footage: 9,820

Main Level: 5,472

Second Level: 3,758

Lower Level: 590

Bedrooms: 4

Baths: 6        Half: 2

Garages: 4

Width: 126 ft Depth: 94 ft

Foundation: Crawl Space


Pricing Options Click here...

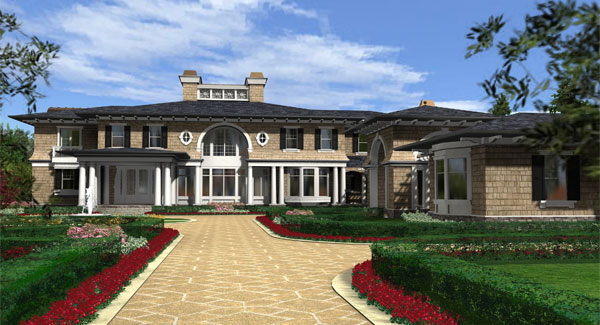

Main Plan Photo
© copyright by designer

Plan: HHF-3236

"Best of Show" winner at both the 2006 Seattle Street of Dreams and the 2007 AIBD Design Competition, the Retreat was inspired by the timeless villas of Tuscany. The shingle-style estate's five structures are joined by trellised arbors and sheltering roofs, its traditional forms complementing floor plans designed for active lifestyles.

The entry opens to a soaring great hall with a grand stair, fireplace and overlook balcony. A central skylight floods the center of the home with sunlight, drawing attention to the sculptural ceilings. A false bookcase in the oval office hides a spiral stair to the wine cellar below.

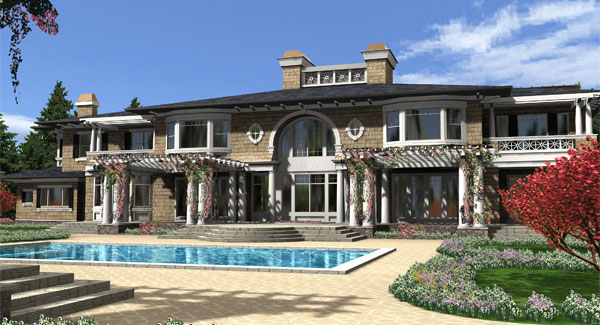

Full-width folding glass doors join the informal livings areas with the pool terrace, creating a great entertainment space. The versatile cabana doubles as a guesthouse. The enormous craft room fills every home management need. The upstairs combines luxury and privacy for the owners with fun and play for the children.

ShareThis
SITE-WIDE SALE! 10% off all modifications or 10% off any plan package over $500 see details
Additional Images

Plan Pricing Packages
HOUSE PLAN SETS

 Five Set Package    $2,850.00
 Eight Set Package    $2,950.00
 Vellums - Single Use License    $3,750.00
 PDF Files - Single Use License    $3,750.00
 CAD Files - Single Use License    $5,350.00
FOUNDATION OPTIONS

 Crawl Space  $0.00
ADDITIONAL PLAN OPTIONS

 Full Reading Reverse  $150.00
PLAN PRODUCTS

 Additional Sets  $50.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:

Note: This plan cannot be purchased for construction in Washington State.

Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • 2 Story Volume
  • Arches
  • Attached
  • Bonus Room
  • Breezeway
  • Butler's Pantry
  • Covered Rear Porch
  • Crawlspace
  • Deck
  • Detached
  • Dining Room
  • Double Vanity Sink
  • Exercise Room
  • Fireplace
  • Foyer
  • Great Room
  • His and Hers Master Closets
  • Home Office
  • Kitchen Island
  • Laundry 1st Fl
  • Library/Media Rm
  • Loft / Balcony
  • Master Bdrm Upstairs
  • Mud Room
  • Nook / Breakfast Area
  • Open Floor Plan
  • Peninsula / Eating Bar
  • Rear Porch
  • Separate Tub and Shower
  • Sitting Area
  • Split Bedrooms
  • Storage Space
  • Vaulted Ceilings
  • Walk-in Closet
  • Walk-in Pantry
  • Wine Cellar
  • Workshop
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
Main Floor:





© copyright by designer
Upper Floor:

Top

Plan Details

General House Information
Number of Stories:2
Width:126' 0"
Depth:94' 0"
Dwelling Number:Single
Bonus Access:2nd Floor

Exterior Style
  • Traditional
  • Tuscan

Number of Rooms
Bedrooms:4
Full Baths:6
Half Baths:2

Finished Square Footage
Main Level:5472 Sq. Ft.
Upper Level: 3758 Sq. Ft.
Lower Level:590 Sq. Ft.
Total: 9820 Sq. Ft.

Unfinished Square Footage
Garage:1872 Sq. Ft.

Garage
  • Garage Type:
Garage Size:4


Foundation
  • Crawl Space

House And Ceiling Heights
First Floor Ceiling:12
Second Floor Ceiling:10
Maximum House Height:38' 6"

Framing Information
Roof Framing:Truss
Exterior Wall Framing:2x6

Roof Pitch
Primary:4

Roof Load
Live:25
Dead:15
Wind:85

INSULATION
Exterior Wall:21
Interior Wall:0
Ceiling:38
Floor:30

Number of Rooms
Bedrooms:4
Full Baths:6
Half Baths:2
