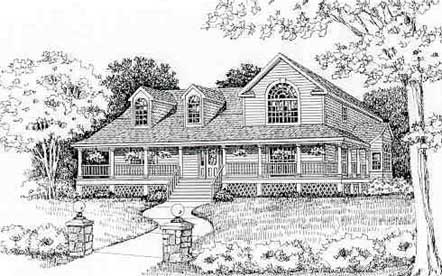

House Plan: DFD-3802

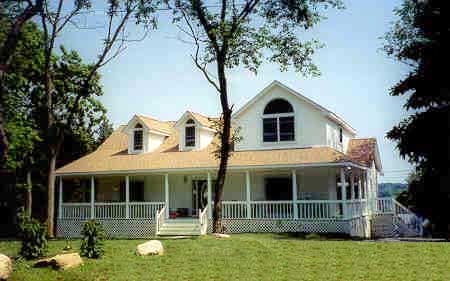

See All 6 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
2,253
BEDS
3
BATHS
2.5
STORIES
1.5
CARS
0
HOUSE PLANS SALE
START AT  $956.25
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

House Plan 3802
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $835
Digital set of plans for bidding purposes only

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,125
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,235
Five printed sets of house plans

8 Printed Sets


Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

8 Printed Sets $1,310
Eight printed sets of house plans

Reproducible Vellum Set


Although most changes can be made directly on the blueprints by "red-lining", if the proposed changes are significant, i.e.large additions, structural changes, major roofline or facade changes, this set may be used to make changes via a local professional, or your builder. Although the PDF Construction Set can accomplish the same purpose, some may prefer to make changes by hand drawing, which the Reproducible is suited for. After changes are made you may print up to 10 sets, for the construction of one home only. An online license will be completed during checkout.
Reproducible Vellum Set $1,320
A modifiable set for large changes.

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $2,095
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1125
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
1,662 Sq. Ft.
Main Level:
591 Sq. Ft.
Upper Level:
2,253 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
1.5
Number of Stories:
58' 10"
Width:
38' 10"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
GARAGE
0
Garage Size:
Exterior Style
Country
Farmhouse
Southern
Collections
Empty Nester
Exclusive
Old House Classics
Outdoor Living
Foundation
Basement
Crawl Space
ICF - Basement (Insul. Conc. Forms)
Slab Foundation
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
9/12
Primary:
10/ 12
Secondary:
Roof Load
30
Live:
10
Dead:
Insulation (R)
13
Exterior Wall:
0
Interior Wall:
30
Ceiling:
19
Floor:
House And Ceiling Heights
9'-1"
First Floor Ceiling:
8'-1"
Second Floor Ceiling:
26' 0"
Maximum House Height:
Facade
Owner's Choice
OwnersChoice
Key Features
2 Story Volume
Basement
Bonus Room
Country Kitchen
Covered Rear Porch
Crawlspace
Deck
Dining Room
Double Vanity Sink
Fireplace
Great Room
His and Hers Master Closets
Kitchen Island
Laundry 1st Fl
Loft / Balcony
Master Bdrm Main Floor
Mud Room
None
Nook / Breakfast Area
Separate Tub and Shower
Sitting Area
Slab
Unfinished Space
Vaulted Ceilings
Walk-in Closet
Wraparound Porch
